MTI | Specialized Equipment for Specialty Healthcare

Product Info

Description

MTI’s 464 Exam/Procedure Chairs are ADA compliant for enhanced accessibility. The 464 is the ideal all-in-one exam chair that comes equipped with SmartTech™ and ComfortSync™ technologies, this chair provides smoother movement, enhanced safety, and customizable options. With a soft and sleek design, ultra-thin tapered backrest, and contoured base plate, it offers superior caregiver access and luxurious comfort. Elevate your healthcare facility with the MTI 464 Exam/Procedure Chairs, designed to enhance accessibility and patient experiences.



MTI’s 464 Exam/Procedure Chair is designed to meet ADA compliance standards, ensuring easy patient ingress/egress and equal access for patients and caregivers with disabilities.

Every 464 Chair comes with MTI’s innovative SmartTech™ technology featuring Smart Controller™ and SmartSafety™ technology. The centralized computer controller enhances safety, reduces energy consumption, and provides smoother movement, additional memory options, and customizable user preferences. The 464 chair takes comfort to the next level with its exclusive ComfortSync™ technology. Designed to provide optimal relaxation, this advanced feature synchronizes the angle of the footrest with the movement of the coordinate leg rest as the back reclines.

This fully-powered, programmable exam/procedure chair comes standard with EasyView™ side-mounted switches that provide 4 programmable positions, a programmable home position, and ADA home along with electronic swivel activation and safety lockout functionality. Caregivers are able to easily position patients quickly and effortlessly to provide a higher level of care for improved patient outcomes.

Experience the epitome of luxury and superior patient access with the MTI 464 Series Chairs. With their soft and sleek design, ultra-thin tapered backrest, and contoured base plate, these chairs offer unparalleled comfort while enhancing caregiver accessibility.

  • Low Voltage Motors: power lift, tilt, and backrest coordinated with footrest featuring ComfortSync™
  • Seat Height: 18.75”-37”* (2.75″ lower than ANY other ENT chair on the market)
  • Seat Width: 21”
  • Backrest: tapered
  • Patient Load Capacity: 725 lbs.
  • Controls: dual EasyView™ chair back mounted membrane hand switches with LED indicators (foot control optional)
  • Programmable Buttons: 4 dynamic user-programmable buttons
  • Home Button: programmable & ADA compliant home positions
  • Headrest: oval articulating
  • Removable Upholstery: seamless or designer
  • Leg rest: backrest coordinated footrest with 3″ power extension featuring ComfortSync™
  • Patient Arms: removable floating (compensating)
  • ADA Compliant Base: 333° swivel
  • Frame: all-steel
  • G2 Accessories: multiple options (see details below)
  • Safety Standards: Listed to the following standards
    • Conf IEC 60601-1:2005 Ed.3+A1,C1:2014
    • AAMI ES60601-1:2005+A1
    • IEC 60601-1-2:2014 Ed.4
    • Cert STD CSA C22.2#60601-1:2014 Ed.3
    • TSCA Title VI Compliant

Patents 10632037, 7862123, 8480172, 9125495, 9782319
Additional Patents Pending

  • Seat Height:
    • 18.75 - 37" Swivel Base
  • Seat Width:
    • 21"
  • Programmable Positions:
    • 4 Program Buttons + Programmable Home
  • Patient Capacity:
    • 725 lbs.
  • Base Options:
    • ADA Compliant 333° Swivel
  • Leg Rest/Footrest:
    • Coordinated Footrest
    • Flip-Up Footrest
  • Removable Upholstery:
    • Designer
    • Seamless
  • Patient Arms:
    • Floating Arms (standard)
  • Control Choices:
    • Foot Control (optional)
    • Hand Switches (standard)
  • Headrest:
    • Oval Articulating
  • Functions:
    • Power Back w/Coordinated Foot
    • Power Foot Extension
    • Power Lift
    • Power Tilt

  • ADA Compliant
    Complies w/regulation 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment and 2010 ADA Standards for Accessible Design

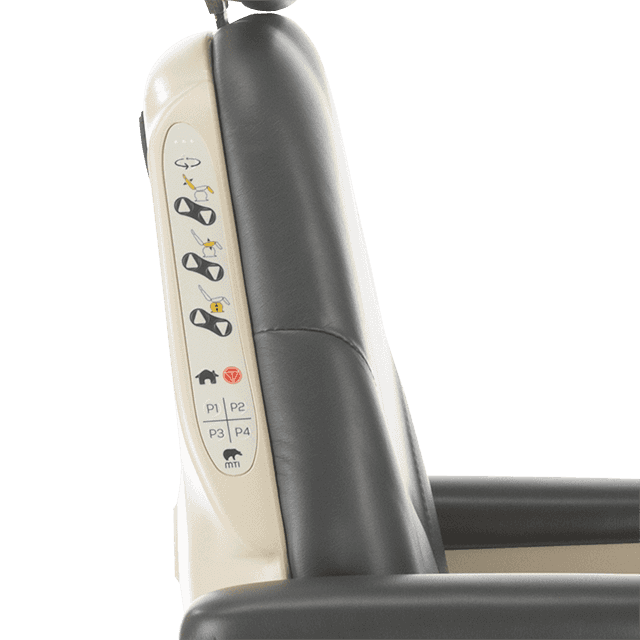

  • EasyView™ Side Mounted Hand Switches
    EasyView™ chair back mounted membrane switches

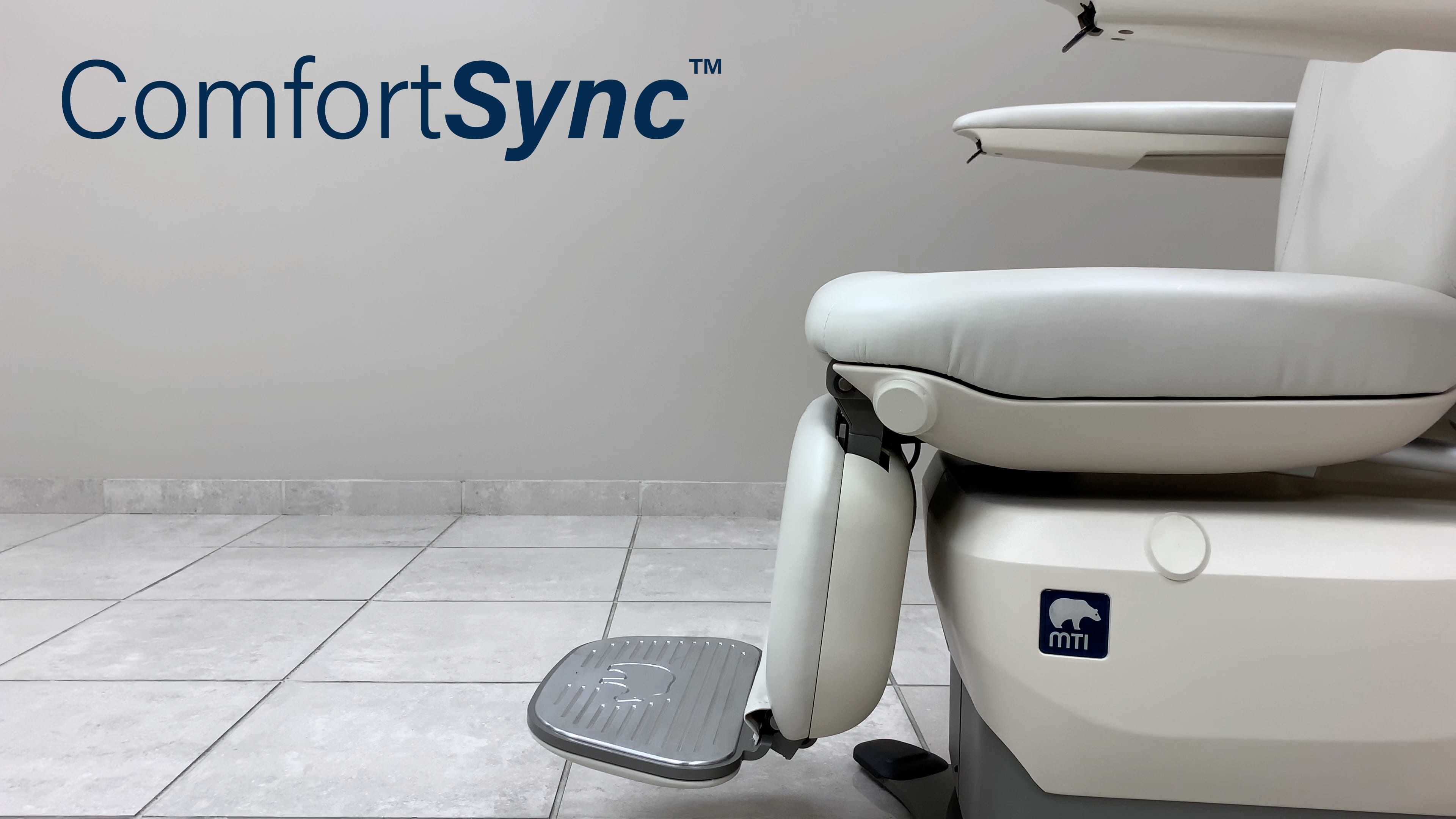

  • ComfortSync™
    The synchronous ergonomic movement of the chair as it moves from position-to-position.
  • Hassle Free
    Maintenance-free joints. No lubricating joints...EVER
  • Hibernate
    After 60 minutes chair sleeps to save on energy
  • Home
    ADA Compliant and User Programmable Home positions
  • Memory
    4 Dynamic user programmable positions
  • Movement
    Removable slide back patient arms compensate with backrest movement.
  • Safety
    Safety Lockout™ Safe Zones and Collision Avoidance System™ help keep the chair in safe positions
  • Soft Start/Stop
    Technology providing smooth start and stop movements
  • Speed
    Ultra-quiet DC motor lift is up to 30% faster than previous models
  • Swivel
    ADA Compliant 333° swivel base
  • Universal
    Universal power supply for 100-240 volt applications
  • Upholstery
    Quick installation and removable for easy cleaning and replacement.

Products Videos

Accessories

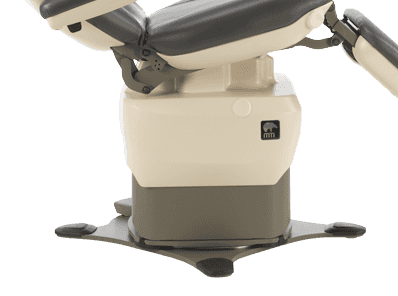

333° Swivel Base (G2)

The 333-degree swivel base electronically unlocks to easily rotate the chair to any degree. The swivel base has two user-selective settings: Auto-lock and Lock/Unlock. In Auto-lock setting, the swivel will lock automatically after 30 seconds. In the Lock/Unlock setting, the swivel will remain unlocked until the swivel button is pressed. In either mode, for safety pressing any button will lock the swivel.

Arctic

Ultraleather® Color:  Soft & Luxurious, Designer Upholstery Style

Taupe

Premium Color:  Extremely Durable, Seamless Upholstery Style

Papyrus

Ultraleather® Color:  Soft & Luxurious, Designer Upholstery Style

Pine Cone

Ultraleather® Color:  Soft & Luxurious, Designer Upholstery Style

Gunmetal

Premium Color:  Extremely Durable, Seamless Upholstery Style

Mocha

Premium Color:  Extremely Durable, Seamless Upholstery Style

Garnet

Ultraleather® Color:  Soft & Luxurious, Designer Upholstery Style

Burgundy

Premium Color:  Extremely Durable, Seamless Upholstery Style

Blue Ridge

Premium Color:  Extremely Durable, Seamless Upholstery Style

Diplomat Blue

Ultraleather® Color:  Soft & Luxurious, Designer Upholstery Style

Midnight Blue

Premium Color:  Extremely Durable, Seamless Upholstery Style

Silver Pearl

Ultraleather® Color:  Soft & Luxurious, Designer Upholstery Style

Dove Grey

Ultraleather® Color:  Soft & Luxurious, Designer Upholstery Style

Dove

Premium Color:  Extremely Durable, Seamless Upholstery Style

Slate

Premium Color:  Extremely Durable, Seamless Upholstery Style

Schooner

Ultraleather® Color:  Soft & Luxurious, Designer Upholstery Style

Black

Premium Color:  Extremely Durable, Seamless Upholstery Style

Raven Wing

Ultraleather® Color:  Soft & Luxurious, Designer Upholstery Style

Deep Oval Articulating Headrest (G2)

WATCH VIDEO Deep Oval Articulating Headrest is another very popular headrest is you always want your patient's head located in the middle of the headrest. The deep cushion also provides the patient with security as the cushion secures their head onto the cushion. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on...

Horseshoe Articulating Headrest (G2)

WATCH VIDEO Horseshoe/Donut Articulating Headrest is used for extended length prone positioning. This headrest cushion is extra soft for patient comfort while in the prone position. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.

Magnetic Headrest (G2)

WATCH VIDEO The magnetic headrest allows the caregiver to easily slide the rectangular upholstered section anywhere along the flat section of the headrest for optimal positioning of the patient’s head and neck.

Prosthetic Articulating Headrest (G2)

WATCH VIDEO Prosthetic or Cradle Articulating Headrest provides excellent access to the patient's head, especially the crown of the head. The cushion is 4” (10.2 cm) high x 8” (20.3 cm) wide. It has an extra lock mechanism for position the head in just the right position. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by...

Rectangular Articulating Headrest (G2)

WATCH VIDEO Rectangular Articulating Headrest is beneficial if you need to move the patient's head around the headrest for different procedures. The cushion is 8” (20.3 cm) high x 12” (30.5 cm) wide. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.

Transfer Supports/Bed Rails (G2)

WATCH VIDEO Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment. They provide a support for patients with disabilities assisting to independently transfer onto the chair, removing barriers for entry. They are also a bed rail providing security during procedures and examinations and for mobile applications provide safety during patient transport. The transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system. With the press of a button, adjust the support every 18° from 0° to 180°, allowing...

Designer Upholstery Kit (G2)

Ultraleather® upholstery adds even more luxury. It is a PVC Free material and contributes to LEED™ and BIFMA credits. Ultraleather is also GREENGUARD Gold Certified.

Seamless Upholstery Kit (G2)

Premium upholstery eliminates exposed stitching, promoting improved disinfection and an easy to clean surface.

Fire Barrier (CAL-133)

MTI's TB133 option meets the California Technical Bulletin #133 (CAL-133) for flammability testing for seating furniture for use in public occupancies. MTI achieves compliance without the use of flame retardants. This option can be added to any upholstered item containing foam.

Back Mounted Exam Light (G2)

WATCH VIDEO Back Mounted - The Lumerus™ LED Exam Light is MTI’s longest lasting, compact, environmentally friendly examination light. This compact light flexible neck rates at 70,000 hours of average life with a 2.25" (5.7 cm) head size. The flexible gooseneck design allows excellent positioning for any exam. > 1 White LED > 70,000 hour rate LED > 4,100° K +/- 300° K > Light Intensity @ 16" (40.6 cm): 24,800 lux (2,300 fc) > Spot Size @ 16" (40.6 cm): 5” (12.7 cm) dia > CRI: 80 > 1-year limited warranty *Assumes 8 hours of continual use/day, 5 days...

Paper Roll Holder, Adjustable 18" or 21" (G2)

WATCH VIDEO The adjustable paper roll holder accommodates 18" or 21" wide paper roll by a simple press of a button. The 3 1/2" (53.3 cm x 8.9 cm) paper roll is conveniently located in the middle of the back section to avoid interfering with accessibility to the patient.

Transfer Supports/Bed Rails (G2)

WATCH VIDEO Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment. They provide a support for patients with disabilities assisting to independently transfer onto the chair, removing barriers for entry. They are also a bed rail providing security during procedures and examinations and for mobile applications provide safety during patient transport. The transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system. With the press of a button, adjust the support every 18° from 0° to 180°, allowing...

Power Cord, 3' (G2)

This accessory provides a 3' hospital grade power cord w/90 degree plug for static mounting. (Not available for mobile or swivel base option)

Strap, Body Restraint (G2)

WATCH VIDEO Improve the safety of your patients by securing your patient to chair during and after procedures. To accommodate different patient demographics, the restraint strap width is adjustable.

3 Function Foot Control (G2)

MTI’s standard 3 Function Programmable Foot Control has 4 user-programmable positions allowing you to put the table into your favorite positions automatically with the simple touch of a button and an auto return button for quick and easy return to the chair position. Controls Leg, Back and Tilt functions on the chair. One of several types of controls available for your MTI chair. 4 user-settable programmable positions Auto return to chair position Stop button or press any function to stop the chair for emergency situations
