TC100C ENT Cabinet

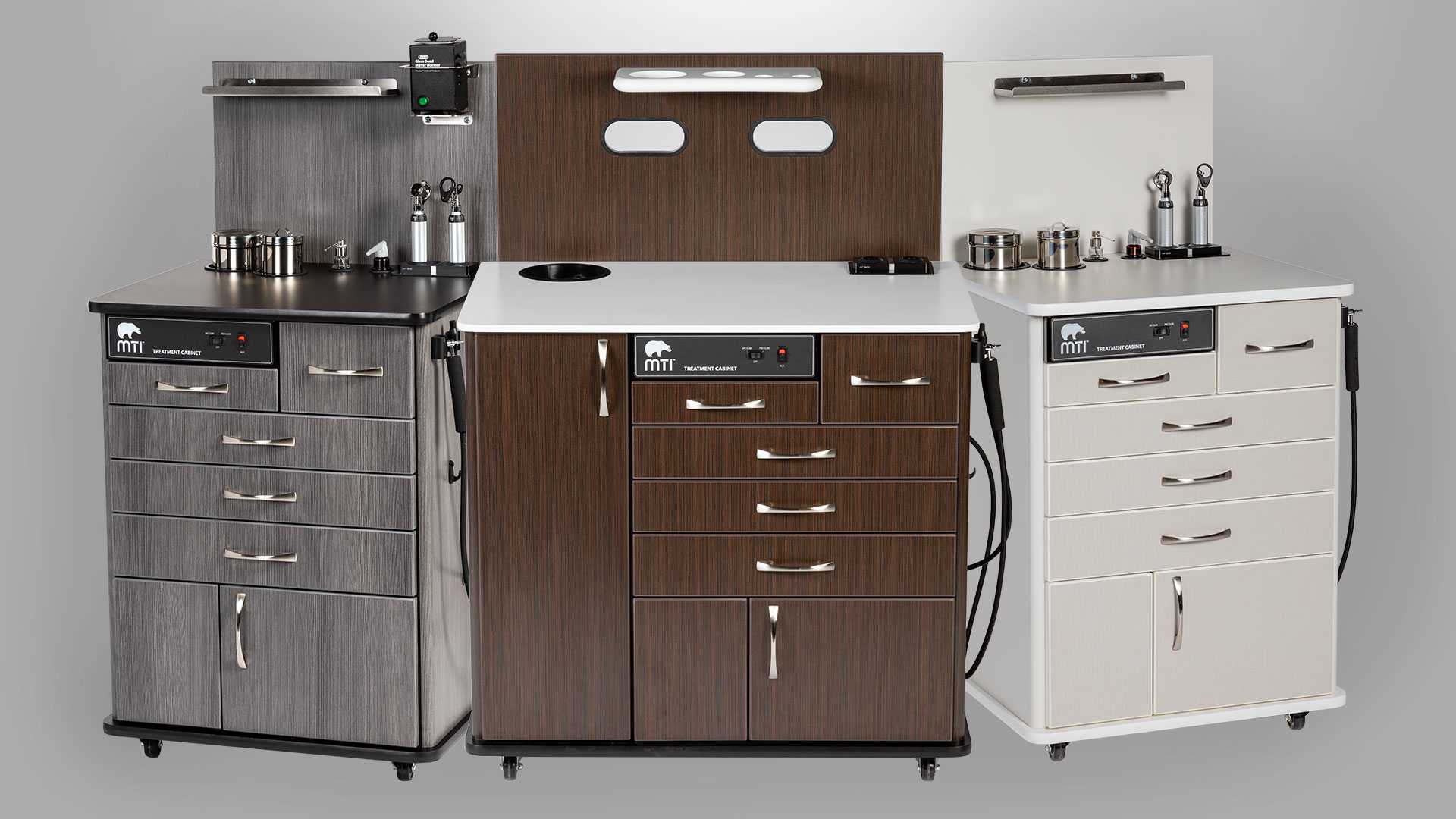

Custom Configuration

MTI has the engineering and capability of providing just about any configuration of cabinet features and styles available. You’ll receive a custom drawing file, like the images below, for your approval of your custom cabinet. Contact your local MTI sales peron for more details.

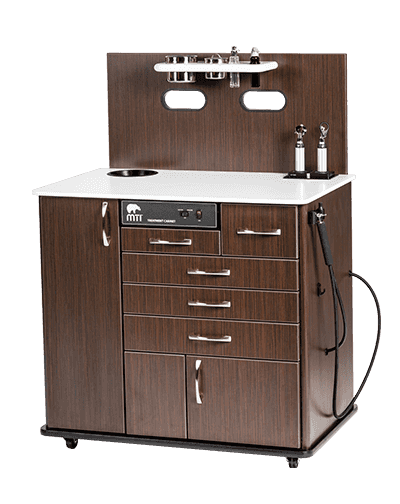

Xanadu

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal.

> Physical samples are available by calling MTI’s sales department.  US & Canada (800) 924-4655, International (801) 875-4999.

Low Line

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal.

> Physical samples are available by calling MTI’s sales department.  US & Canada (800) 924-4655, International (801) 875-4999.

Classic Linen

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal.

> Physical samples are available by calling MTI’s sales department.  US & Canada (800) 924-4655, International (801) 875-4999.

Crystal

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal.

> Physical samples are available by calling MTI’s sales department.  US & Canada (800) 924-4655, International (801) 875-4999.

Dove Grey

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal.

> Physical samples are available by calling MTI’s sales department.  US & Canada (800) 924-4655, International (801) 875-4999.

Shadow

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal.

> Physical samples are available by calling MTI’s sales department.  US & Canada (800) 924-4655, International (801) 875-4999.

Brittany Blue

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal.

> Physical samples are available by calling MTI’s sales department.  US & Canada (800) 924-4655, International (801) 875-4999.

Stainless Steel

The door and drawer fronts and side panels are stainless steel. The counter top, backwall, base, box trim and pulls are black. Additional charge for this option.

Special Colors

Select special colors for the counter top, backwall, side panels, doors/drawers, trim, cabinet base, and cabinet box trim.

Black Countertop & Backwall

Contact your MTI’s sales person for color chip samples.

Crystal Countertop & Backwall

Contact your MTI’s sales person for color chip samples.

Frosty White Solid Countertop & Crystal Backwall

Contact your MTI’s sales person for color chip samples.

Midnight Melange Solid Countertop & Black Backwall

Contact your MTI’s sales person for color chip samples.

Left Hand Cabinet

This option will put your handles and hoses on the left hand side of the cabinet when you are facing it.

Right Hand Cabinet

This option will put your handles and hoses on the right hand side of the cabinet when you are facing it.

Internal Pressure and Standard Vacuum System

For an internal pressure and standard vacuum system, select this option. The internal pressure system has an adjustable pressure regulator valve providing the air pressure you want for aspiration. The soft non-porous pressure hose handle makes it easy to hold the bottle and handle with one hand.  The vacuum hose has a replaceable nozzle with a dial to adjust the suction as well as easy to replace non-latex hose.

Have you even wanted more suction in your cabinet? MTI has the first high volume suction system available for hospital wall like suction.  Click here to see more.

Internal Pressure and High Volume Vacuum System

For an internal pressure and high volume vacuum system, select this option. MTI’s exclusive high volume vacuum system delivers 5.5 times the suction flow of any other competitive cabinet vacuum systems on the market. It also provides suction of up to 28″ (71.1 cm) of mercury. Now that some suction!

The internal pressure system has an adjustable pressure regulator valve providing the air pressure you want for aspiration. The soft non-porous pressure hose handle makes it easy to hold the bottle and handle with one hand.  The high volume internal vacuum system’s replaceable nozzle has a dial to adjust the suction as well as easy to replace non-latex hose.

Internal Standard Vacuum System Only

For an internal vacuum system only, select this option. The vacuum hose has a replaceable nozzle with a dial to adjust the suction as well as easy to replace non-latex hose.

Have you even wanted more suction in your cabinet? MTI has the first high volume suction system available for hospital wall like suction.  Click here to see more.

Internal High Volume Vacuum System Only

For an internal high volume vacuum system only, select this option. MTI’s exclusive high volume vacuum system delivers 5.5 times the suction flow of any other vacuum system on the market. It also provides suction of up to 28″ (71.1 cm) of mercury. Now that some suction!

The high volume vacuum system’s replaceable nozzle have a dial to adjust the suction as well as easy to replace non-latex hose.

Internal Pressure System Only

For an internal pressure system, select this option. The internal pressure system has an adjustable pressure regulator valve providing the air pressure you want for aspiration. The soft non-porous pressure hose handle makes it easy to hold the bottle and handle with one hand.

Central Pressure and Vacuum System System

If you have a central pressure and vacuum system in your building, select this option.  It provides a connection on the back side of your cabinet so you can connect from your wall outlets to the cabinet. The pressure hose uses a soft non-porous hose handle which makes it easy to hold the bottle and handle with one hand.  The vacuum hose has a replaceable nozzle with a dial to adjust the suction as well as easy to replace non-latex hose.

Central Vacuum System Only

If you have a central vacuum system in your building, select this option.  It provides a connection on the back side of your cabinet so you can connect from your wall outlets to the cabinet. The vacuum hose has a replaceable nozzle with a dial to adjust the suction as well as easy to replace non-latex hose.

Central Pressure System Only

If you have a central pressure system in your building, select this option.  It provides a connection on the back side of your cabinet so you can connect from your wall outlets to the cabinet. The soft non-porous pressure hose handle makes it easy to hold the bottle and handle with one hand.

No Glassware or Canisters

If you don’t want any bottles or canisters, select this option. If this option is selected, no counter top holes or inserts will be provided.

Countertop Recessed Charger

This is the most popular location for mounting your recharge and (2) 3.5 volt handles; clean, easy to reach, and out of the way.

Side Mounted Charger

An easy and convenient location for your recharger and (2) 3.5 volt handles.

Side Mounted Corded Handles

Side Mounted Heine Corded Handles (H-3)

Diagnostic Otoscope

Halogen HPX™ illumination and fiber optics to the distal tip for easy examinations.

• Halogen HPX™ lamp provides light output for true tissue color and long-lasting performance
• Fiber optics project cool light to the distal tip with no reflections or obstructions for superior views of the tympanic membrane
• Wide-angle viewing lens allows for instrumentation under magnification
• Sealed system for pneumatic otoscopy and accurate diagnosis of otitis media

Pneumatic Otoscope

Provides bright, white light output and a rotating lens with ultraseal for pneumatic otoscopy.

• Halogen HPX™ lamp provides light output for true tissue color and consistent, long-lasting illumination
• Rotating lens with ultraseal enables easy pneumatic otoscopy
• Fiber optic illumination produces cool light

Operating Otoscope

Open system with rotatable lens and optional speculum for convenient procedures, plus bright light output.

• Halogen HPX™ lamp produces light for true tissue color and long-lasting performance
• Open system makes use during procedures more convenient
• Rotatable lens and speculum for ease of use
• Fiber optic illumination produces cool light

Macroview Otoscope with Insufflator Bulb

Delivers almost twice the field of view at higher magnification compared to standard otoscopes, making it easier to visualize the auditory canal and tympanic membrane. This instrument is a significant advance in hand-held otoscopy, providing an improved view for enhanced learning and decision making.

• A nearly complete view of the tympanic membrane with approximately twice the field of view and 30% greater magnification than a traditional otoscope
• Better clarity and definition of landmarks
• The ability to adjust focus for variable ear canal length or farsighted eyes
• Tip grip for secure fastening and ejection of ear specula
• Fiber optics produce cool light with no reflections, no obstruction

Finnoff Ocular Transilluminator

General fiber-optic examination light for checking pupil reflex. Eliminates patient discomfort in transillumination of frontal and maxillary sinuses.

• Halogen HPX lamp provides 30% more light output for true tissue color and consistent, long-lasting illumination
• Fiber-optic light transmission for cool distal light
• Fully sterilizable with steam, water, gas or solutions

Curved All Purpose Transilluminator

General fiber-optic examination light for checking pupil reflex. Eliminates patient discomfort in transillumination of frontal and maxillary sinuses.

• Halogen HPX™ lamp provides light output for true tissue color and consistent, long-lasting illumination
• Fiber-optic light transmission for cool distal light
• Fully sterilizable with steam, water, gas or solutions

Insufflator Bulb for Diagnostic Head

Insufflator Bulb with Tip for Diagnostic Otoscope

Insufflator Bulb for Pneumatic Head

Insufflator Bulb with Tip for Pneumatic Otoscope

4” Backwall

Low profile backwall for those needing the space above the backwall for other items.

15” Backwall with Stainless Steel Shelf

This is MTI’s most popular backwall, providing a stainless steel shelf for placing bottles and other items.

15” Backwall with Gibraltar Bottle & Canister Tower

Maximize your counter top space by moving the bottles and canisters to the solid surface tower.

Backwall mounted Glass Bead Mirror Warmer

Backwall mount your bead mirror warmer to place out of reach for children for convenience in warming mirrors during laryngeal examinations. Warms mirrors to prevent fogging.

• Not approved for use as a sterilizer

Counter Top Installed Glass Bead Mirror Warmer

Counter top recess your bead mirror warmer for convenience in warming mirrors during laryngeal examinations. Warms mirrors to prevent fogging.

• Replaces 4″ x 5″ (10.2 cm x 12.7 cm) stainless steel canister
• Not approved for use as a sterilizer
• Not available in conjunction with a mirror warming drawer

Mirror Warming Drawer

The mirror warming drawer option converts the small drawer under the control panel, providing a convenient solution to warm your mirrors. Simply leave your mirrors in the drawer to heat to eliminate fogging.

• Not approved for use as a sterilizer
• Not available in conjunction with a counter top installed mirror warmer
• Not available in conjunction with a halogen light source. If a light source and mirror warming drawer are desired, you must purchase the LED light source.

Dirty Instrument Tray

For convenient discard of dirty instruments.  Instrument tray size 6 3/8 wide x 10 3/8 long x 2 1/2 deep (16.2 cm x 26.4 cm x 6.4 cm).

• Instrument tray is not available when combined with TC100C/D trash drop hole standard feature.

Dual Suction Hoses and Valves

Dual suction hoses provide access to suction on both sides of the cabinet.

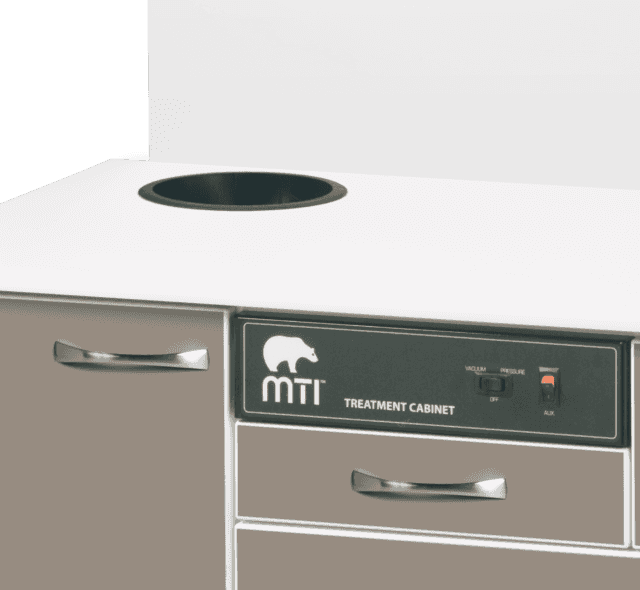

Eliminate Trash Drop Hole

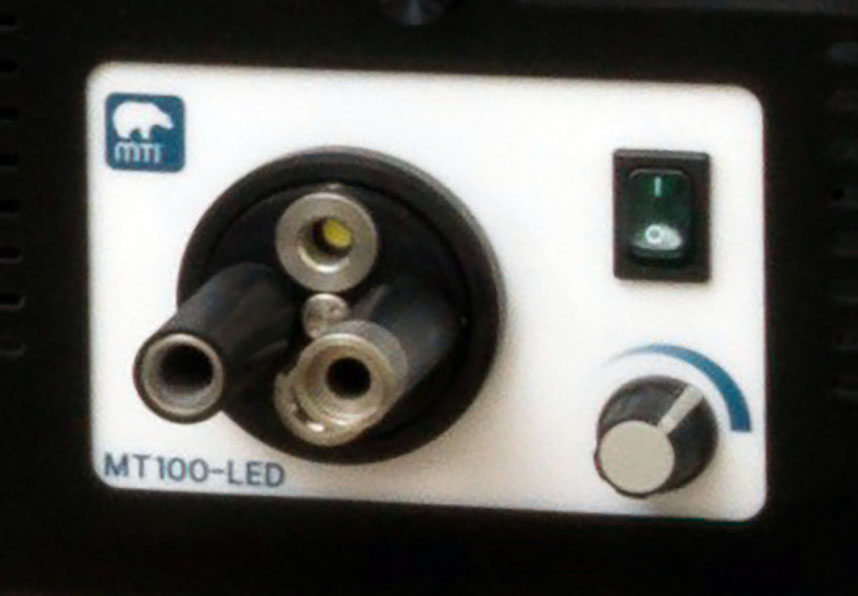

Fiber Optic Light Source, LED

A cabinet installed LED light source is a convenient and safe location for your light source. It is put in place of the top right hand square drawer. Heat is not issue with MTI’s LED light source with maintains the correct temperature for bottles and instruments stored in the cabinet.

• 50 watt LED
• 4 ports (Wolf, Olympus, ACMI, and Storz)- other ports available
• Compact, efficient, durable source of brilliant “daylight” quality light
• Color temperature: 6500°K
• Typical LED life: >50,000 hours
• Low power consumption: 52W typical
• Electronic (PWM) intensity control from 0-100%
• Accepts 100-240V AC, 50/60 Hz input power for worldwide operation
• Regulatory: UL60601-1, CAN/CSA C22.2 No. 601.1, EN60601-1-2; CE marked
• Dimensions: 4.65” W x 3.32” H X 7.25” D (~10” overall)
• Weight : 2.5 lbs (1.14 kg)

Foot Control

Provides operation of the pressure and vacuum by this small foot control.

Lift-up Shelf

Select from either a 12″ x 12″ (30.5 cm x 30.5 cm) or 12″ x 18″ (30.5 cm x 45.7 cm) flip-up shelf for additional counter top space.

• The 12″ x 18″ shelf is not available to be mounted on same side as the pressure/vacuum hoses or the all drawer locks.

Locks for Top Right Hand Drawer or Storage Door

To secure your items for either the top right hand drawer or the TC100C/D’s storage compartment door, select this option.

Locks on All Drawers

To secure your items for all your drawers, select this option.

• All drawers will lock except one of either the top drawers

Medicine Lock Box

Keep items safe under key with a medicine lock box.  This option can be mounted on either the left or right hand side of the cabinet backwall.

• Requires the bottle/canister tower (NA on MTC Series Cabinets)
• Only available with side mounted charging wells (corded or cordless)(NA on MTC Series Cabinets)

Stainless Steel Glove & Tissue Dispenser

Locate your gloves and tissues where you need them… close to where you are working on the left or right hand side of the cabinet backwall.

Vacuum Pressure Evacuation System
