TC100B ENT Cabinet

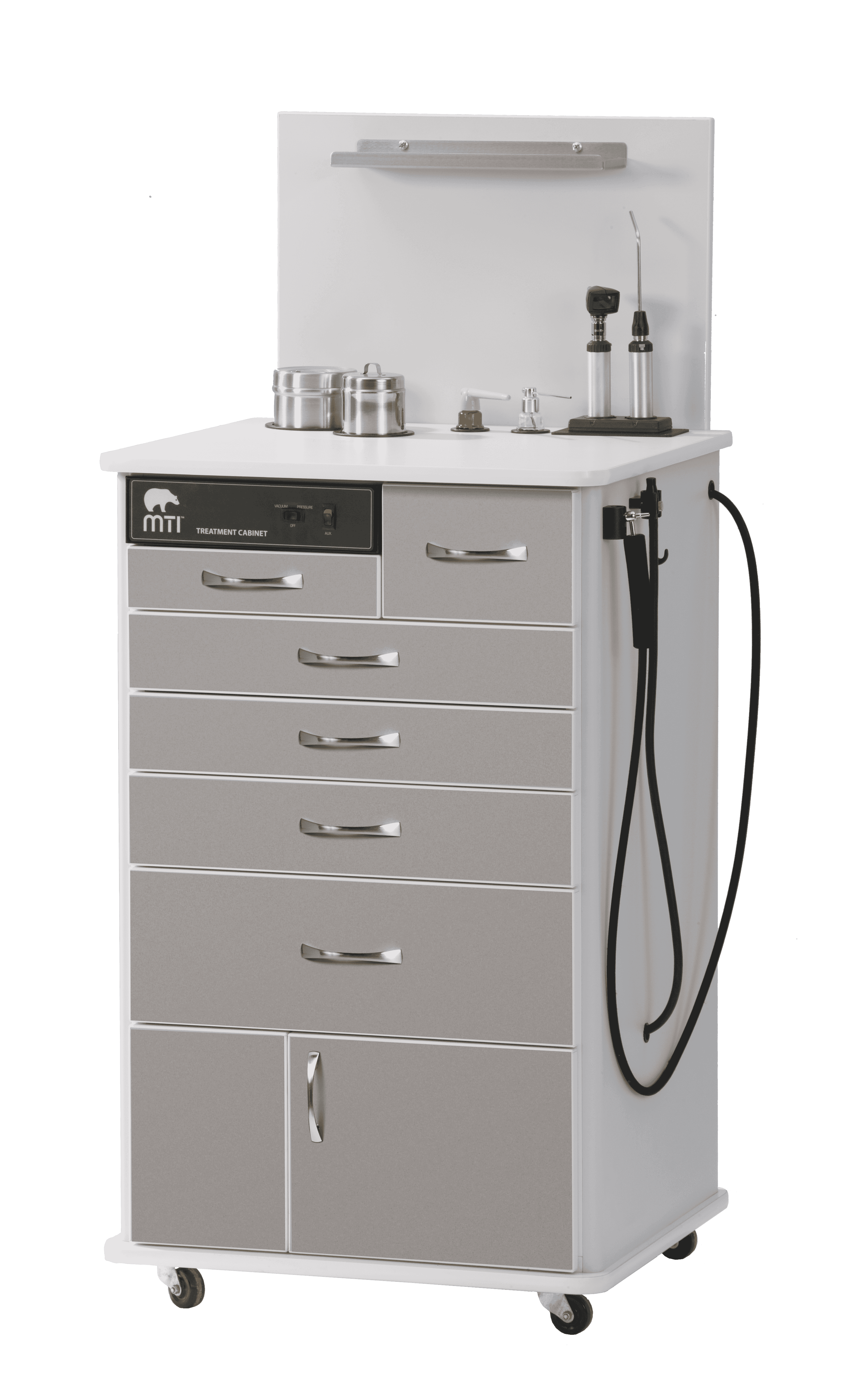

Dove grey, extened-height, mobile MTI TC100b series ENT cabinet used for otolaryngology.

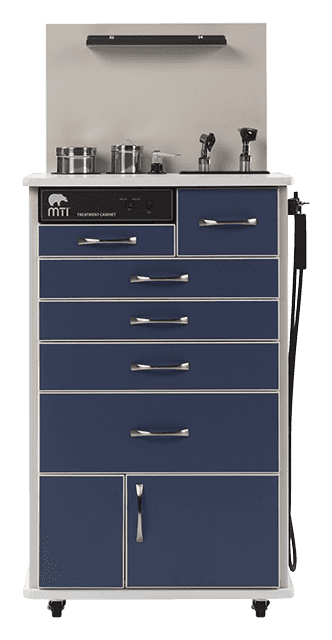

TC100B ENT Cabinet

The MTI TC100B is perhaps the best extended-height mobile ENT treatment cabinet in the marketplace. This ENT cart features European construction, styling and curves and some “plug-n-play“ components allow for replacement without the use of any tools. We combine premium materials with contemporary ergonomic engineering for quality only MTI delivers. For staff and patient safety, all MTI ENT cabinets are latex-free to reduce allergic reactions. Configure the TC100B with many options to design the cart right for you.

Width: 25.25” countertop
Height: 41.25” to counter top
Depth: 18” or 21”
Drawers: 6
Doors: 2
Draw Handles: Satin Nickle
Finish: stainless steel, wood grain, texture or choice of four laminate colors
Countertop: crystal or black laminate or solid surface
Dexterity: right or left hand hoses
Systems: vacuum and pressure or upgrade to high volume vacuum and pressure
Glassware: Up to 4 (atomizer, powder blower, syringe)
Canisters: Up to 3 stainless steel
Instruments: 2 Welch Allyn heads. Handles and a charger or corded handles.
Backwall: 4” or 15”
Casters: 4 hard-rubber
Accessories: multiple options (see details below)

Contact a Sales Rep Book a Demo

Hoses & Handle Location Options: Left Hand, Right Hand
Backwall Options: 15", 4"
Canister Options: 3"x5", 4"x5"

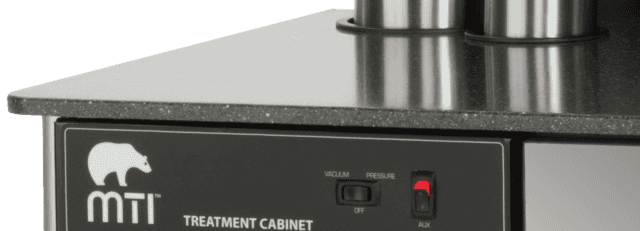

Countertop Options: Laminate, Solid Surface
Depth Options: 18", 21"
Finish Options: Laminate, Stainless Steel
Glassware Options: Atomizer, Powder Blower, Syringe
Instrument Handle Options: Corded Handles/Charger, Cordless Handles/Charger
Instrument Options: Insufflator Bulbs, Otoscopes, Transilluminators
Pressure & Vacuum Options: Central Pressure, Central Vacuum, High Volume Vacuum, Internal Pressure, Standard Vacuum
Waste Drop: No
Height: 41.25"
Doors: 2 Doors
Width: 25.25" wide
Drawers: 6 Drawers

Standard Depth, 21"

The 21" (53.3 cm) deep cabinet option provides 4" of additional counter top space.
Slim Line Depth, 18"

The 18" (45.7 cm) deep cabinet option provides a slimmer cabinet for those rooms needing the additional space.

Standard Configuration

The standard configuration is

Width: 24"

Height: 33.5” to counter top

Drawers: 5

Doors: 2

Glassware: Up to 4 (atomizer, powder blower, syringe)

Canisters: Up to 3 stainless steel

Instruments: 2 Welch Allyn heads, handles and a charger
Custom Configuration

MTI has the engineering and capability of providing just about any configuration of cabinet features and styles available. You'll receive a custom drawing file, like the images below, for your approval of your custom cabinet. Contact your local MTI sales peron for more details.

Xanadu

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal. > Physical samples are available by calling MTI's sales department. US & Canada (800) 924-4655, International (801) 875-4999.
Low Line

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal. > Physical samples are available by calling MTI's sales department. US & Canada (800) 924-4655, International (801) 875-4999.
Classic Linen

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal. > Physical samples are available by calling MTI's sales department. US & Canada (800) 924-4655, International (801) 875-4999.
Crystal

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal. > Physical samples are available by calling MTI's sales department. US & Canada (800) 924-4655, International (801) 875-4999.
Dove Grey

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal. > Physical samples are available by calling MTI's sales department. US & Canada (800) 924-4655, International (801) 875-4999.
Shadow

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal. > Physical samples are available by calling MTI's sales department. US & Canada (800) 924-4655, International (801) 875-4999.
Brittany Blue

Designed specifically to meet the needs of commercial projects, Wilsonart Contract Laminate are long-lasting laminates that offer impeccable function and timeless beauty. Whichever color you choose, these laminates will anchor your design with exceptional durability and aesthetic appeal. > Physical samples are available by calling MTI's sales department. US & Canada (800) 924-4655, International (801) 875-4999.

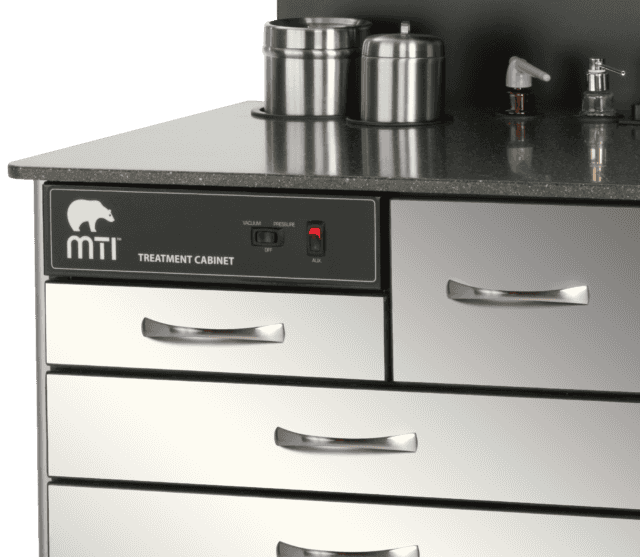

Stainless Steel

The door and drawer fronts and side panels are stainless steel. The counter top, backwall, base, box trim and pulls are black. Additional charge for this option.
Special Colors

Select special colors for the counter top, backwall, side panels, doors/drawers, trim, cabinet base, and cabinet box trim.

Black Countertop & Backwall

Contact your MTI's sales person for color chip samples.
Crystal Countertop & Backwall

Contact your MTI's sales person for color chip samples.
Frosty White Solid Countertop & Crystal Backwall

Contact your MTI's sales person for color chip samples.
Midnight Melange Solid Countertop & Black Backwall

Contact your MTI's sales person for color chip samples.

Left Hand Cabinet

This option will put your handles and hoses on the left hand side of the cabinet when you are facing it.
Right Hand Cabinet

This option will put your handles and hoses on the right hand side of the cabinet when you are facing it.

Internal Pressure and Standard Vacuum System

For an internal pressure and standard vacuum system, select this option. The internal pressure system has an adjustable pressure regulator valve providing the air pressure you want for aspiration. The soft non-porous pressure hose handle makes it easy to hold the bottle and handle with one hand. The vacuum hose has a replaceable nozzle with a dial to adjust the suction as well as easy to replace non-latex hose. Have you even wanted more suction in your cabinet? MTI has the first high volume suction system available for hospital wall like suction. Click here to see more.
Internal Pressure and High Volume Vacuum System

For an internal pressure and high volume vacuum system, select this option. MTI's exclusive high volume vacuum system delivers 5.5 times the suction flow of any other competitive cabinet vacuum systems on the market. It also provides suction of up to 28" (71.1 cm) of mercury. Now that some suction! The internal pressure system has an adjustable pressure regulator valve providing the air pressure you want for aspiration. The soft non-porous pressure hose handle makes it easy to hold the bottle and handle with one hand. The high volume internal vacuum system's replaceable nozzle has a dial to adjust the suction as well as easy to replace non-latex hose.
Internal Standard Vacuum System Only

For an internal vacuum system only, select this option. The vacuum hose has a replaceable nozzle with a dial to adjust the suction as well as easy to replace non-latex hose. Have you even wanted more suction in your cabinet? MTI has the first high volume suction system available for hospital wall like suction. Click here to see more.
Internal High Volume Vacuum System Only

For an internal high volume vacuum system only, select this option. MTI's exclusive high volume vacuum system delivers 5.5 times the suction flow of any other vacuum system on the market. It also provides suction of up to 28" (71.1 cm) of mercury. Now that some suction! The high volume vacuum system's replaceable nozzle have a dial to adjust the suction as well as easy to replace non-latex hose.
Internal Pressure System Only

For an internal pressure system, select this option. The internal pressure system has an adjustable pressure regulator valve providing the air pressure you want for aspiration. The soft non-porous pressure hose handle makes it easy to hold the bottle and handle with one hand.
Central Pressure and Vacuum System System

If you have a central pressure and vacuum system in your building, select this option. It provides a connection on the back side of your cabinet so you can connect from your wall outlets to the cabinet. The pressure hose uses a soft non-porous hose handle which makes it easy to hold the bottle and handle with one hand. The vacuum hose has a replaceable nozzle with a dial to adjust the suction as well as easy to replace non-latex hose.
Central Vacuum System Only

If you have a central vacuum system in your building, select this option. It provides a connection on the back side of your cabinet so you can connect from your wall outlets to the cabinet. The vacuum hose has a replaceable nozzle with a dial to adjust the suction as well as easy to replace non-latex hose.
Central Pressure System Only

If you have a central pressure system in your building, select this option. It provides a connection on the back side of your cabinet so you can connect from your wall outlets to the cabinet. The soft non-porous pressure hose handle makes it easy to hold the bottle and handle with one hand.

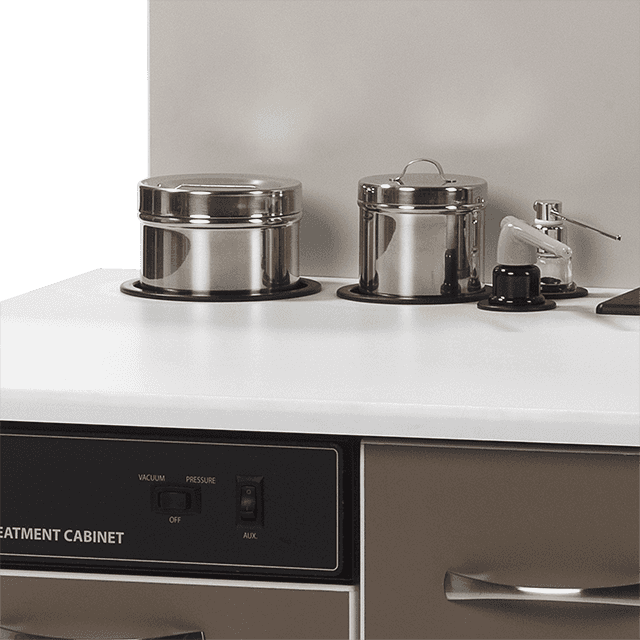

Countertop Mounted

This is MTI's standard configuration:

Width: 24″

Height: 33.5” to counter top

Drawers: 5

Doors: 2

Glassware: Up to 4 (atomizer, powder blower, syringe)

Canisters: Up to 3 stainless steel

Instruments: 2 Welch Allyn heads, handles and a charger
No Glassware or Canisters

If you don't want any bottles or canisters, select this option. If this option is selected, no counter top holes or inserts will be provided.
Tower Mounted

This is MTI's custom configuration:

(1) Atomizer

(1) Powder Blower

(1) 4" x 5" (10.2 cm x 12.7 cm)

(1) 3" x 6" (7.6 cm x 15.2 cm) Stainless Steel Canister

Other Bottles Available for any substitutions or additions

Countertop Recessed Charger

This is the most popular location for mounting your recharge and (2) 3.5 volt handles; clean, easy to reach, and out of the way.
Side Mounted Charger

An easy and convenient location for your recharger and (2) 3.5 volt handles.
Side Mounted Corded Handles

Side Mounted Heine Corded Handles (H-3)
Diagnostic Otoscope

Long-lasting LED illumination with fiber optics projects a cool light to the distal tip with no reflections or obstructions for superior views of the tympanic membrane.

LED technology for a brighter, whiter view

Wide-angle viewing lens allows for instrumentation under magnification

Sealed system for pneumatic otoscopy and accurate diagnosis of otitis media

Works with all Welch Allyn 3.5V power sources

Includes a port for Pneumatic Otoscopy
Pneumatic Otoscope

Provides bright, white light output and a rotating lens with ultraseal for pneumatic otoscopy.

Halogen HPX™ lamp provides light output for true tissue color and consistent, long-lasting illumination

Rotating lens with ultraseal enables easy pneumatic otoscopy

Fiber optic illumination produces cool light
Operating Otoscope

Open system with rotatable lens and optional speculum for convenient procedures, plus bright light output.

Halogen HPX™ lamp produces light for true tissue color and long-lasting performance

Open system makes use during procedures more convenient

Rotatable lens and speculum for ease of use

Fiber optic illumination produces cool light
MacroView Plus Otoscope

The MacroView diagnostic 3.5 V otoscope has been redesigned with a familiar form and feel and views you have to see. This professional otoscope offers a 3X larger viewing area for ear exams when compared to views through a standard or pocket otoscope.

Focus-free design

Long-lasting LED illumination

Compatible with existing Welch Allyn 3.5 V power handles

MacroView Plus otoscope models are digitally-capable, for capturing and sharing images of the ear
Finnoff Ocular Transilluminator

General fiber-optic examination light for checking pupil reflex. Eliminates patient discomfort in transillumination of frontal and maxillary sinuses.

Halogen HPX lamp provides 30% more light output for true tissue color and consistent, long-lasting illumination

Fiber-optic light transmission for cool distal light

Fully sterilizable with steam, water, gas or solutions
Curved All Purpose Transilluminator

General fiber-optic examination light for checking pupil reflex. Eliminates patient discomfort in transillumination of frontal and maxillary sinuses.

Halogen HPX™ lamp provides light output for true tissue color and consistent, long-lasting illumination

Fiber-optic light transmission for cool distal light

Fully sterilizable with steam, water, gas or solutions
Insufflator Bulb for Diagnostic Head

Insufflator Bulb with Tip for Diagnostic Otoscope
Insufflator Bulb for Pneumatic Head

Insufflator Bulb with Tip for Pneumatic Otoscope

4” Backwall

Low profile backwall for those needing the space above the backwall for other items.
15” Backwall with Stainless Steel Shelf

This is MTI's most popular backwall, providing a stainless steel shelf for placing bottles and other items.
15” Backwall with Gibraltar Bottle & Canister Tower

Maximize your counter top space by moving the bottles and canisters to the solid surface tower.

Backwall mounted Glass Bead Mirror Warmer

Backwall mount your bead mirror warmer to place out of reach for children for convenience in warming mirrors during laryngeal examinations. Warms mirrors to prevent fogging.

Not approved for use as a sterilizer
Counter Top Installed Glass Bead Mirror Warmer

Counter top recess your bead mirror warmer for convenience in warming mirrors during laryngeal examinations. Warms mirrors to prevent fogging.

Replaces 4" x 5" (10.2 cm x 12.7 cm) stainless steel canister

Not approved for use as a sterilizer

Not available in conjunction with a mirror warming drawer

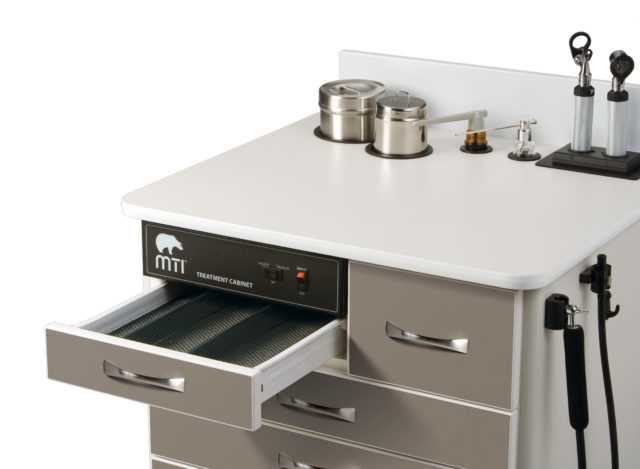

Mirror Warming Drawer

The mirror warming drawer option converts the small drawer under the control panel, providing a convenient solution to warm your mirrors. Simply leave your mirrors in the drawer to heat to eliminate fogging.

Not approved for use as a sterilizer

Not available in conjunction with a counter top installed mirror warmer

Not available in conjunction with a halogen light source. If a light source and mirror warming drawer are desired, you must purchase the LED light source.

Dirty Instrument Tray

For convenient discard of dirty instruments. Instrument tray size 6 3/8 wide x 10 3/8 long x 2 1/2 deep (16.2 cm x 26.4 cm x 6.4 cm).

Instrument tray is not available when combined with TC100C/D trash drop hole standard feature.
Dual Suction Hoses and Valves

Dual suction hoses provide access to suction on both sides of the cabinet.
EndoCaddy

Mount any one of the Endocaddy's to your MTI cabinet.

"Stores and Protects your valuable endoscopes"

Hi-Impact tube provides secure soak/storage vessel for fragile endoscope fibers/lenses

Durable, clear polymer tube permits visualization of soaking fluid levels and cleanliness

Easily removed from bracket for cleaning and refilling

Sturdy bracket gives strong support to storage tube and is provided with Velcro™ fasteners and mounting hardware for easy secure installation

Endocaddy includes bracket, tube, vapor lid(s) and mounting hardware

Click here to see more about the Endocaddy.

Standard tube sizes:

Rigid = 3/4" (1.9 cm) dia. x 10" (25.4 cm) long

Flexible 1 1/4" (3.2 cm) dia. x 20" (50.8 cm) long

U.S. Patent Number 335925
Fiber Optic Light Source, LED

A cabinet installed LED light source is a convenient and safe location for your light source. It is put in place of the top right hand square drawer. Heat is not issue with MTI's LED light source with maintains the correct temperature for bottles and instruments stored in the cabinet.

50 watt LED

4 ports (Wolf, Olympus, ACMI, and Storz)- other ports available

Compact, efficient, durable source of brilliant “daylight” quality light

Color temperature: 6500°K

Typical LED life: >50,000 hours

Low power consumption: 52W typical

Electronic (PWM) intensity control from 0-100%

Accepts 100-240V AC, 50/60 Hz input power for worldwide operation

Regulatory: UL60601-1, CAN/CSA C22.2 No. 601.1, EN60601-1-2; CE marked

Dimensions: 4.65” W x 3.32” H X 7.25” D (~10” overall)

Weight : 2.5 lbs (1.14 kg)
Foot Control

Provides operation of the pressure and vacuum by this small foot control.
Lift-up Shelf

Select from either a 12" x 12" (30.5 cm x 30.5 cm) or 12" x 18" (30.5 cm x 45.7 cm) flip-up shelf for additional counter top space.

The 12" x 18" shelf is not available to be mounted on same side as the pressure/vacuum hoses or the all drawer locks.
Locks for Top Right Hand Drawer or Storage Door

To secure your items for either the top right hand drawer or the TC100C/D's storage compartment door, select this option.
Locks on All Drawers

To secure your items for all your drawers, select this option.

All drawers will lock except one of either the top drawers
Medicine Lock Box

Keep items safe under key with a medicine lock box. This option can be mounted on either the left or right hand side of the cabinet backwall.

Requires the bottle/canister tower (NA on MTC Series Cabinets)

Only available with side mounted charging wells (corded or cordless)(NA on MTC Series Cabinets)
Stainless Steel Glove & Tissue Dispenser

Locate your gloves and tissues where you need them… close to where you are working on the left or right hand side of the cabinet backwall.
Vacuum Pressure Evacuation System
