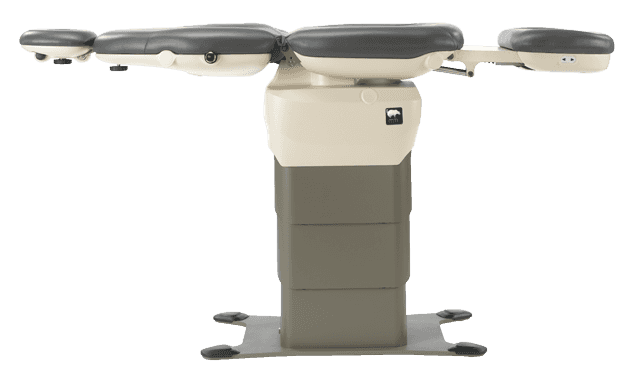

830 Procedure Chair

The all-new MTI 830 Series Chairs are ADA Compliant in all base versions (standard, swivel or mobile) using the transfer support, providing easy patient ingress/egress, and equal access for patients and caregivers with disabilities.

Their modern sleek design ...

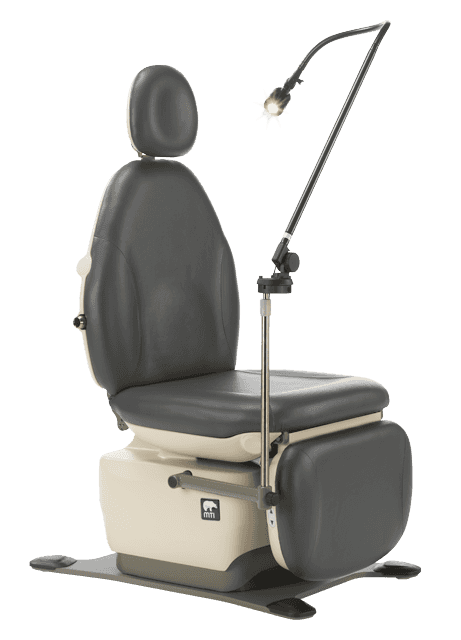

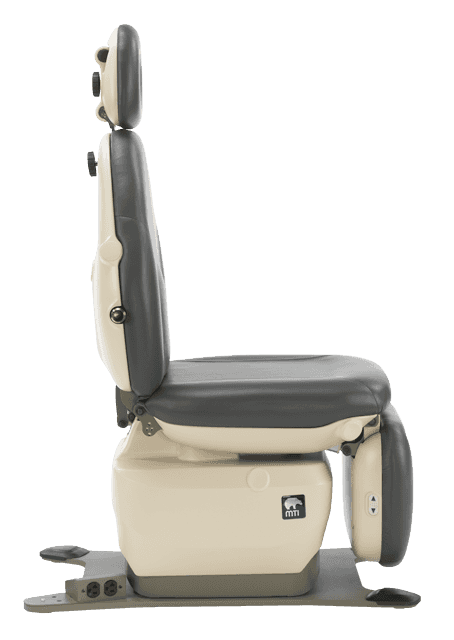

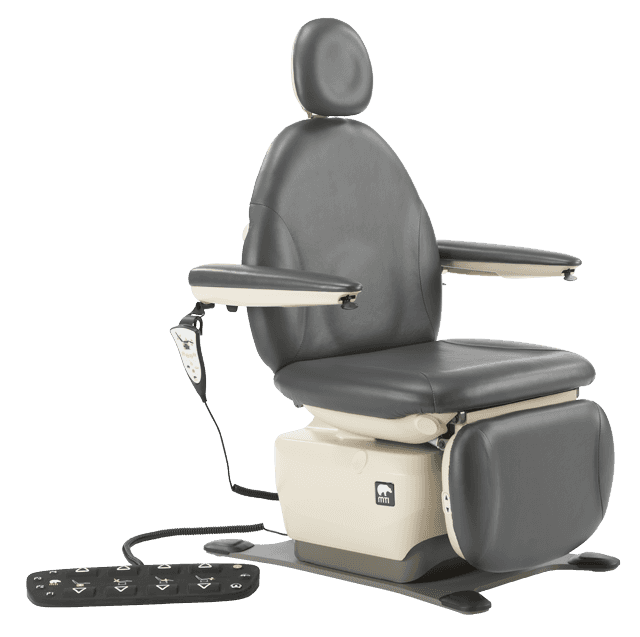

830 Procedure Chair

The all-new MTI 830 Series Chairs are ADA Compliant in all base versions (standard, swivel or mobile) using the transfer support, providing easy patient ingress/egress, and equal access for patients and caregivers with disabilities.

Their modern sleek design defines luxury and provides superior patient access with an ultra-thin backrest and contoured base plate.

All 830 Chairs come equipped with SmartTech™. SmartTech™ is the combination of MTI’s Smart Controller™ and Smart Safety™ technology using a centralized computer controller that enhances safety, reduces energy consumption, and provides smoother movement, additional memory options, and more user preferences.

  • Low Voltage Motors: power lift, back, tilt, foot & foot extension
  • Height: 18.75”-39”*
  • Width: 25”
  • Backrest: tapered
  • Patient Load Capacity: 725 lbs.
  • Controls: foot & hand
  • Programmable Buttons: 4 dynamic user-programmable positions
  • Home Button: programmable & ADA compliant home positions

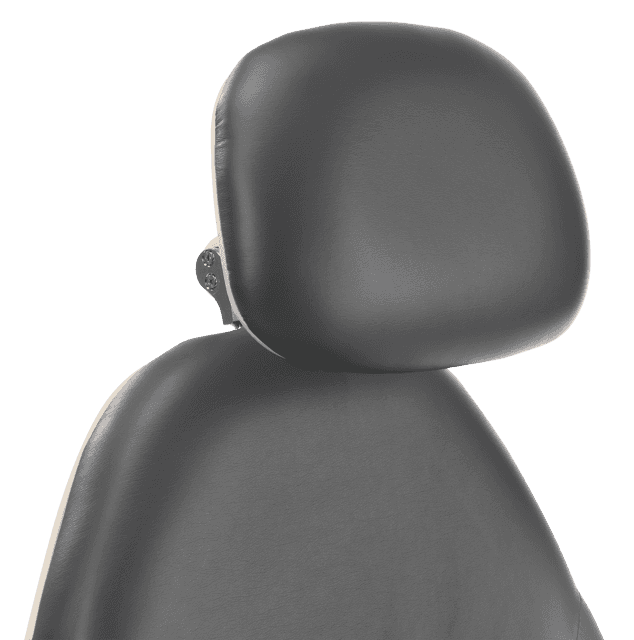

  • Headrest: oval articulating
  • Removable Upholstery: seamless or designer
  • Legrest: knee-break w/7″ power foot extension

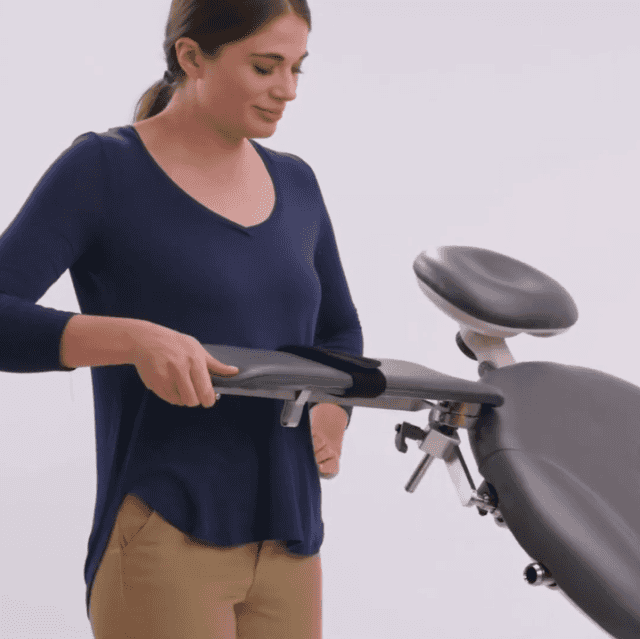

  • Optional Patient Arms: optional removable floating (compensating), seat rail or back rail mounted arms
  • Safety Standards: Listed to the following standards
    IEC 60601-1:2005 Ed.3+A1;C1:2014, AAMI ES60601-1:2005+A1, CSA C22.2#60601-1:2014 Ed.3, IEC 60601-1-2:2014 Ed.4
  • ADA Compliant Base: standard, optional 333° swivel or mobile
  • Frame: all-steel

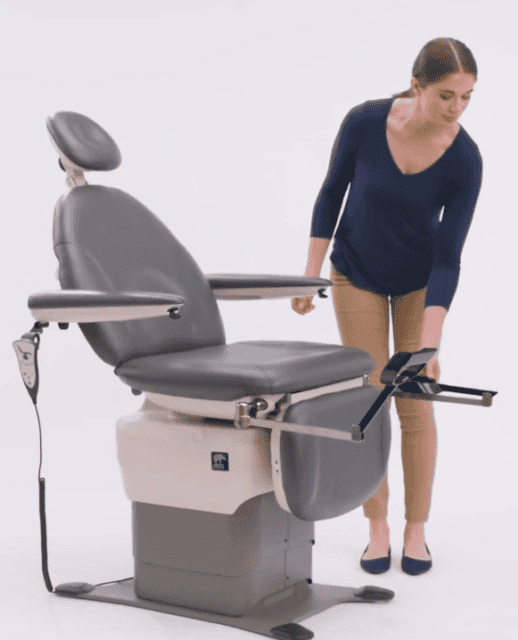

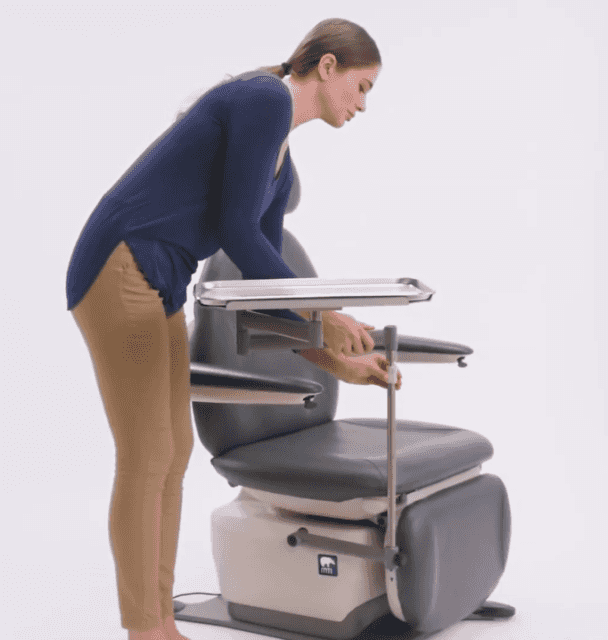

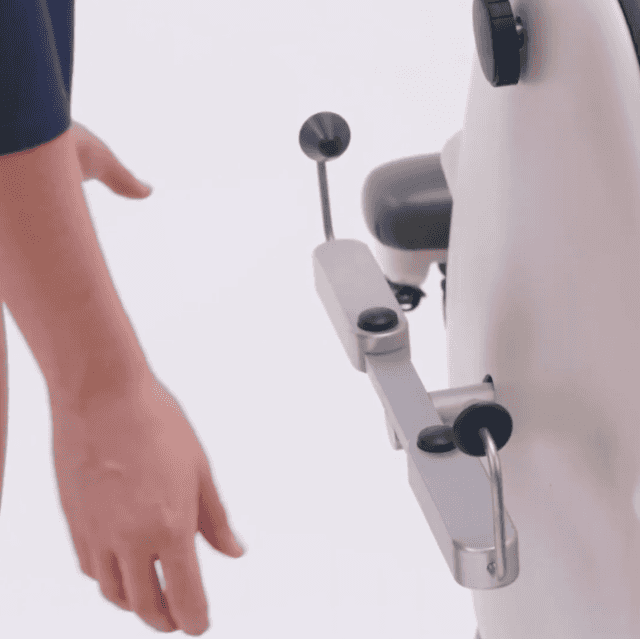

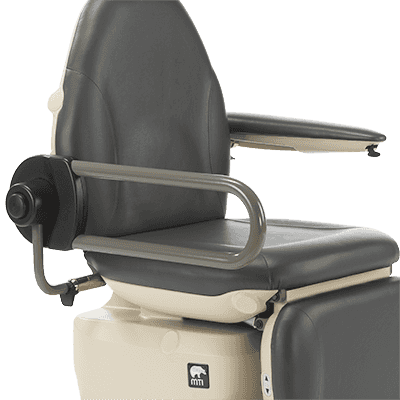

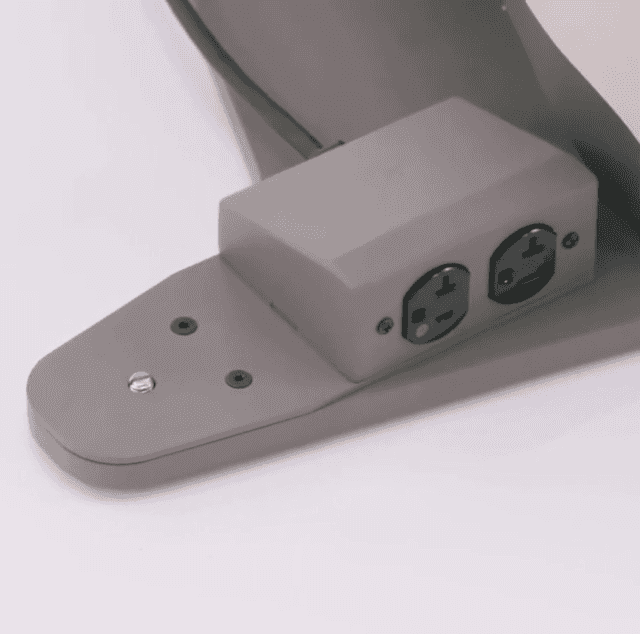

  • G2 Accessories: multiple options (see details below)

*Height may vary depending on base selection
Patents 10632037, 7862123, 8480172, 9125495, 9782319
Additional Patents Pending

Power Lift
Power Back

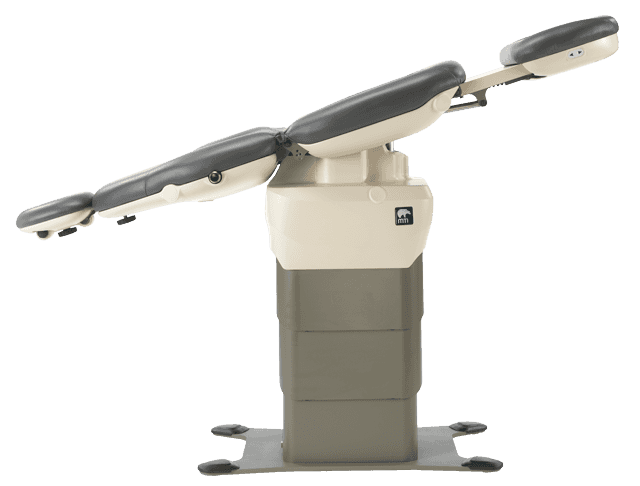

Power Tilt
Power Foot
Power Foot Extension
5 Program Buttons & Programmable Home
725 lb Patient Rated Lift Capacity

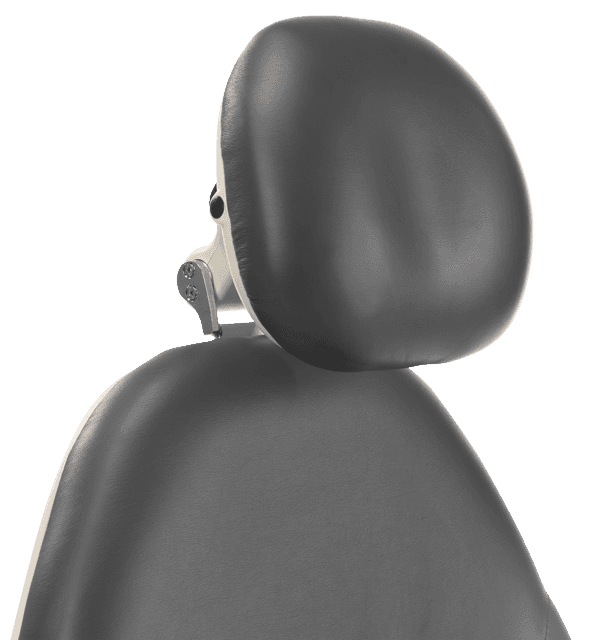

Oval Articulating Headrest

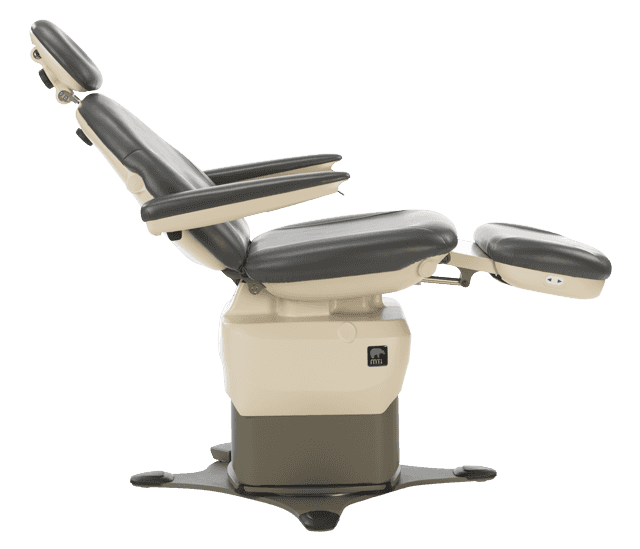

Optional 333° Swivel
Optional Mobile Base

Accessories

ADA Compliant

Complies w/regulation 36 CFR Part 1195 Standards for Accessible Med...

ADA Compliant

Complies w/regulation 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment and 2010 ADA Standards for Accessible Design

ComfortSync™

The synchronous ergonomic movement of the chair as it moves from po...

ComfortSync™

The synchronous ergonomic movement of the chair as it moves from position-to-position.

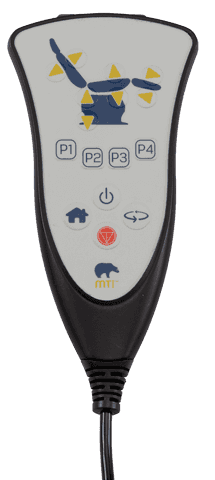

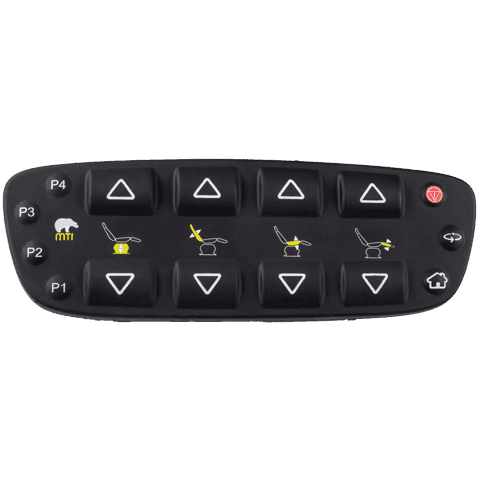

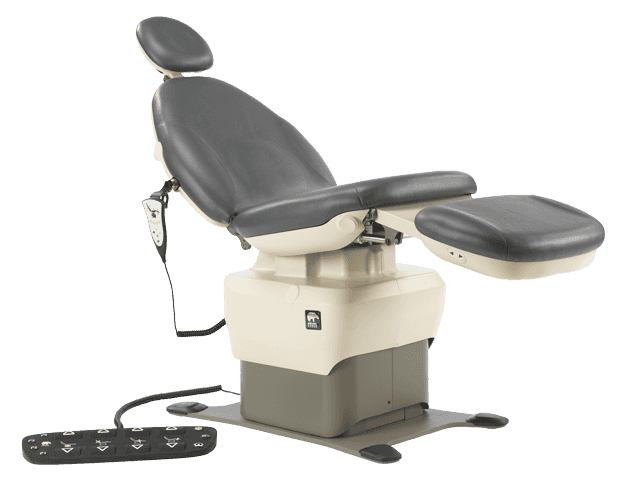

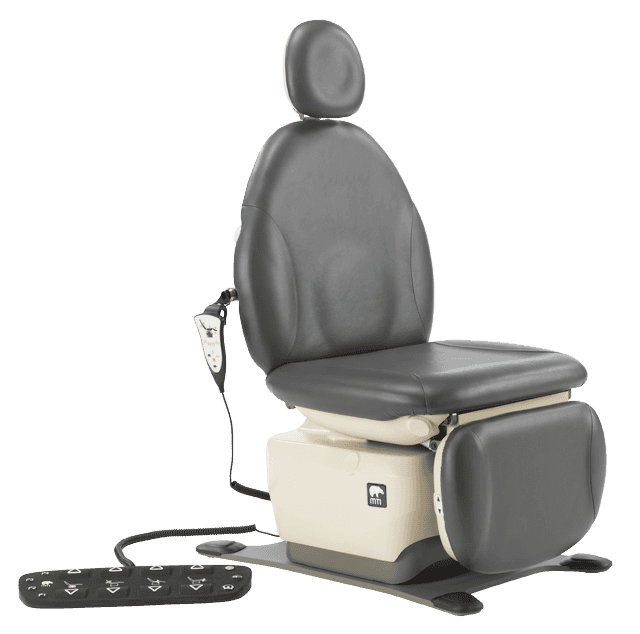

Controls

Hand and Foot controls with sealed membrane for cleaning and disinf...

Controls

Hand and Foot controls with sealed membrane for cleaning and disinfecting

Extension

7” power foot extension for taller patients

...

Extension

7” power foot extension for taller patients

Hassle Free

Maintenance-free joints. No lubricating joints…EVER

...

Hassle Free

Maintenance-free joints. No lubricating joints…EVER

Hibernate

After 60 minutes chair sleeps to save on energy

...

Hibernate

After 60 minutes chair sleeps to save on energy

Home

ADA Compliant and User Programmable Home positions

...

Home

ADA Compliant and User Programmable Home positions

Memory

4 Dynamic user programmable positions

...

Memory

4 Dynamic user programmable positions

Movement

Removable slide back patient arms compensate with backrest movement...

Movement

Removable slide back patient arms compensate with backrest movement.

Safety

Safety Lockout™ Safe Zones and Collision Avoidance System™ help...

Safety

Safety Lockout™ Safe Zones and Collision Avoidance System™ help keep the chair in safe positions

Soft Start/Stop

Technology providing smooth start and stop movements

...

Soft Start/Stop

Technology providing smooth start and stop movements

Speed

Ultra-quiet DC motor lift is up to 30% faster than previous models<...

Speed

Ultra-quiet DC motor lift is up to 30% faster than previous models

Swivel

ADA Compliant 333° swivel base (optional)

...

Swivel

ADA Compliant 333° swivel base (optional)

Universal

Universal power supply for 100-240 volt applications

...

Universal

Universal power supply for 100-240 volt applications

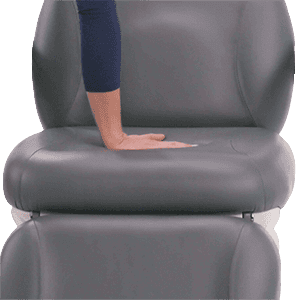

Upholstery

Quick installation and removable for easy cleaning and replacement....

Upholstery

Quick installation and removable for easy cleaning and replacement.

Standard Base (G2)

The easy-access contoured standard base plate offers easier patient...

Standard Base (G2)

The easy-access contoured standard base plate offers easier patient access for the caregiver from all four sides. The base offers four leveling glides below the black leveling glide covers to adjust the chair to its ideal position.

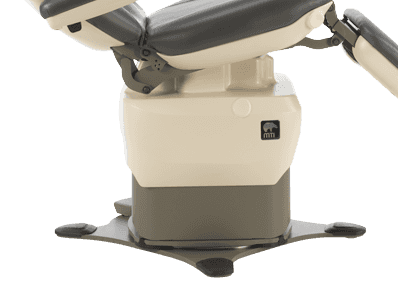

333° Swivel Base (G2)

The 333-degree swivel base electronically unlocks to easily rotate ...

333° Swivel Base (G2)

The 333-degree swivel base electronically unlocks to easily rotate the chair to any degree. The swivel base has two user-selective settings: Auto-lock and Lock/Unlock. In Auto-lock setting, the swivel will lock automatically after 30 seconds. In the Lock/Unlock setting, the swivel will remain unlocked until the swivel button is pressed. In either mode, for safety pressing any button will lock the swivel.

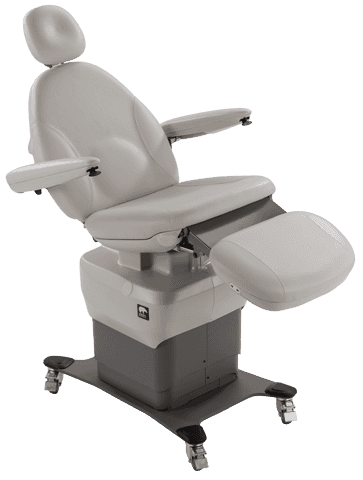

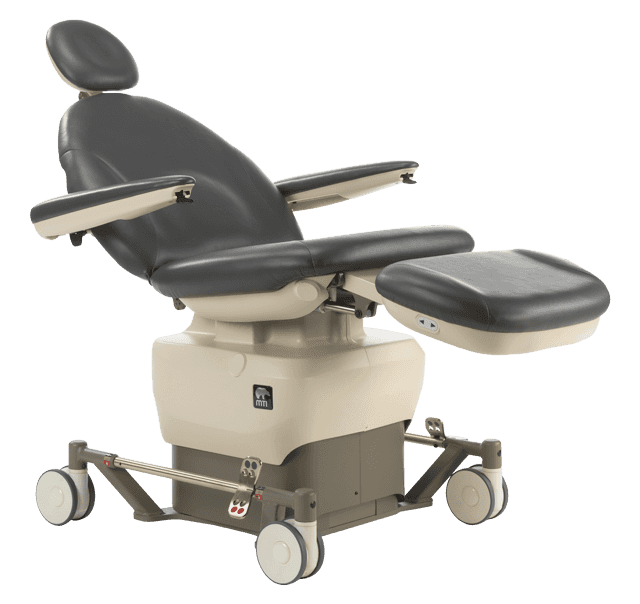

Low Boy Mobile Base with Locks (G2)

“Low Boy” Mobile Caster Base with Dual Caster Locks pro...

Low Boy Mobile Base with Locks (G2)

“Low Boy” Mobile Caster Base with Dual Caster Locks provides mobility without sacrificing low seat height. It only adds 0.5″ (1.3 cm) to the entry height of the chair. If you want an easy-to-move chair with any demographic of patient, this is the mobile base for you!

> Raises base height 0.5″ (1.3 cm)
> Factory Installed
> Not available with Swivel Base Option or any of the OSIT Tables
> Height: 7.92″
> Width: 36″ mobile, 34.4″ locked
> Depth: 33.9″

Arctic

Ultraleather® Upholstery colors...

Arctic

Ultraleather® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple.

Earth Friendly
Ultraleather®  not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde.

Ultraleather® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik®  and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5.

Ultraleather® Upholstery is manufactured to meet the following specifications:

  • California AB 2998
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • Automotive (FMVSS-302)

Abrasion Standards

  • Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Taupe

Premium Upholstery colors present beautiful, calm, coordinated colo...

Taupe

Premium Upholstery colors present beautiful, calm, coordinated colors for a soothing effect. These new colors are practical and durable, offering superior strength from a 100% vinyl surface and at the same time suppleness from its Soft Hi-Loft Backing.

Naugahyde with Advanced BeautyGard® has been formulated to achieve a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:10.

Premium Upholstery is manufactured to meet the following specifications:

  • BIFMA
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • FAR 25.853 (a) & Appendix F Part 1 (a) (1) (ii)
  • Port Authority of New York and New Jersey
  • Automotive (FMVSS-302)
  • CID A-A-2950-A

Abrasion Standards

  • Abrasion #8 Cotton Duck: 250,000 double rubs

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Papyrus

Ultraleather® Upholstery colors...

Papyrus

Ultraleather® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple.

Earth Friendly
Ultraleather®  not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde.

Ultraleather® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik®  and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5.

Ultraleather® Upholstery is manufactured to meet the following specifications:

  • California AB 2998
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • Automotive (FMVSS-302)

Abrasion Standards

  • Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Pine Cone

Ultraleather® Upholstery colors...

Pine Cone

Ultraleather® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple.

Earth Friendly
Ultraleather®  not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde.

Ultraleather® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik®  and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5.

Ultraleather® Upholstery is manufactured to meet the following specifications:

  • California AB 2998
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • Automotive (FMVSS-302)

Abrasion Standards

  • Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Gunmetal

Premium Upholstery colors present beautiful, calm, coordinated colo...

Gunmetal

Premium Upholstery colors present beautiful, calm, coordinated colors for a soothing effect. These new colors are practical and durable, offering superior strength from a 100% vinyl surface and at the same time suppleness from its Soft Hi-Loft Backing.

Naugahyde with Advanced BeautyGard® has been formulated to achieve a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:10.

Premium Upholstery is manufactured to meet the following specifications:

  • BIFMA
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • FAR 25.853 (a) & Appendix F Part 1 (a) (1) (ii)
  • Port Authority of New York and New Jersey
  • Automotive (FMVSS-302)
  • CID A-A-2950-A

Abrasion Standards

  • Abrasion #8 Cotton Duck: 250,000 double rubs

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Mocha

Premium Upholstery colors present beautiful, calm, coordinated colo...

Mocha

Premium Upholstery colors present beautiful, calm, coordinated colors for a soothing effect. These new colors are practical and durable, offering superior strength from a 100% vinyl surface and at the same time suppleness from its Soft Hi-Loft Backing.

Naugahyde with Advanced BeautyGard® has been formulated to achieve a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:10.

Premium Upholstery is manufactured to meet the following specifications:

  • BIFMA
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • FAR 25.853 (a) & Appendix F Part 1 (a) (1) (ii)
  • Port Authority of New York and New Jersey
  • Automotive (FMVSS-302)
  • CID A-A-2950-A

Abrasion Standards

  • Abrasion #8 Cotton Duck: 250,000 double rubs

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Garnet

Ultraleather® Upholstery colors...

Garnet

Ultraleather® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple.

Earth Friendly
Ultraleather®  not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde.

Ultraleather® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik®  and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5.

Ultraleather® Upholstery is manufactured to meet the following specifications:

  • California AB 2998
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • Automotive (FMVSS-302)

Abrasion Standards

  • Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Burgundy

Premium Upholstery colors present beautiful, calm, coordinated colo...

Burgundy

Premium Upholstery colors present beautiful, calm, coordinated colors for a soothing effect. These new colors are practical and durable, offering superior strength from a 100% vinyl surface and at the same time suppleness from its Soft Hi-Loft Backing.

Naugahyde with Advanced BeautyGard® has been formulated to achieve a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:10.

Premium Upholstery is manufactured to meet the following specifications:

  • BIFMA
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • FAR 25.853 (a) & Appendix F Part 1 (a) (1) (ii)
  • Port Authority of New York and New Jersey
  • Automotive (FMVSS-302)
  • CID A-A-2950-A

Abrasion Standards

  • Abrasion #8 Cotton Duck: 250,000 double rubs

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Blue Ridge

Premium Upholstery colors present beautiful, calm, coordinated colo...

Blue Ridge

Premium Upholstery colors present beautiful, calm, coordinated colors for a soothing effect. These new colors are practical and durable, offering superior strength from a 100% vinyl surface and at the same time suppleness from its Soft Hi-Loft Backing.

Naugahyde with Advanced BeautyGard® has been formulated to achieve a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:10.

Premium Upholstery is manufactured to meet the following specifications:

  • BIFMA
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • FAR 25.853 (a) & Appendix F Part 1 (a) (1) (ii)
  • Port Authority of New York and New Jersey
  • Automotive (FMVSS-302)
  • CID A-A-2950-A

Abrasion Standards

  • Abrasion #8 Cotton Duck: 250,000 double rubs

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Diplomat Blue

Ultraleather® Upholstery colors...

Diplomat Blue

Ultraleather® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple.

Earth Friendly
Ultraleather®  not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde.

Ultraleather® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik®  and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5.

Ultraleather® Upholstery is manufactured to meet the following specifications:

  • California AB 2998
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • Automotive (FMVSS-302)

Abrasion Standards

  • Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Midnight Blue

Premium Upholstery colors present beautiful, calm, coordinated colo...

Midnight Blue

Premium Upholstery colors present beautiful, calm, coordinated colors for a soothing effect. These new colors are practical and durable, offering superior strength from a 100% vinyl surface and at the same time suppleness from its Soft Hi-Loft Backing.

Naugahyde with Advanced BeautyGard® has been formulated to achieve a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:10.

Premium Upholstery is manufactured to meet the following specifications:

  • BIFMA
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • FAR 25.853 (a) & Appendix F Part 1 (a) (1) (ii)
  • Port Authority of New York and New Jersey
  • Automotive (FMVSS-302)
  • CID A-A-2950-A

Abrasion Standards

  • Abrasion #8 Cotton Duck: 250,000 double rubs

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Silver Pearl

Ultraleather® Upholstery colors...

Silver Pearl

Ultraleather® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple.

Earth Friendly
Ultraleather®  not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde.

Ultraleather® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik®  and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5.

Ultraleather® Upholstery is manufactured to meet the following specifications:

  • California AB 2998
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • Automotive (FMVSS-302)

Abrasion Standards

  • Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Dove Grey

Ultraleather® Upholstery colors...

Dove Grey

Ultraleather® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple.

Earth Friendly
Ultraleather®  not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde.

Ultraleather® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik®  and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5.

Ultraleather® Upholstery is manufactured to meet the following specifications:

  • California AB 2998
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • Automotive (FMVSS-302)

Abrasion Standards

  • Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Dove

Premium Upholstery colors present beautiful, calm, coordinated colo...

Dove

Premium Upholstery colors present beautiful, calm, coordinated colors for a soothing effect. These new colors are practical and durable, offering superior strength from a 100% vinyl surface and at the same time suppleness from its Soft Hi-Loft Backing.

Naugahyde with Advanced BeautyGard® has been formulated to achieve a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:10.

Premium Upholstery is manufactured to meet the following specifications:

  • BIFMA
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • FAR 25.853 (a) & Appendix F Part 1 (a) (1) (ii)
  • Port Authority of New York and New Jersey
  • Automotive (FMVSS-302)
  • CID A-A-2950-A

Abrasion Standards

  • Abrasion #8 Cotton Duck: 250,000 double rubs

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Nickel

Premium Upholstery colors present beautiful, calm, coordinated colo...

Nickel

Premium Upholstery colors present beautiful, calm, coordinated colors for a soothing effect. These new colors are practical and durable, offering superior strength from a 100% vinyl surface and at the same time suppleness from its Soft Hi-Loft Backing.

Naugahyde with Advanced BeautyGard® has been formulated to achieve a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:10.

Premium Upholstery is manufactured to meet the following specifications:

  • BIFMA
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • FAR 25.853 (a) & Appendix F Part 1 (a) (1) (ii)
  • Port Authority of New York and New Jersey
  • Automotive (FMVSS-302)
  • CID A-A-2950-A

Abrasion Standards

  • Abrasion #8 Cotton Duck: 250,000 double rubs

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Schooner

Ultraleather® Upholstery colors...

Schooner

Ultraleather® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple.

Earth Friendly
Ultraleather®  not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde.

Ultraleather® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik®  and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5.

Ultraleather® Upholstery is manufactured to meet the following specifications:

  • California AB 2998
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • Automotive (FMVSS-302)

Abrasion Standards

  • Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Black

Premium Upholstery colors present beautiful, calm, coordinated colo...

Black

Premium Upholstery colors present beautiful, calm, coordinated colors for a soothing effect. These new colors are practical and durable, offering superior strength from a 100% vinyl surface and at the same time suppleness from its Soft Hi-Loft Backing.

Naugahyde with Advanced BeautyGard® has been formulated to achieve a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:10.

Premium Upholstery is manufactured to meet the following specifications:

  • BIFMA
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • FAR 25.853 (a) & Appendix F Part 1 (a) (1) (ii)
  • Port Authority of New York and New Jersey
  • Automotive (FMVSS-302)
  • CID A-A-2950-A

Abrasion Standards

  • Abrasion #8 Cotton Duck: 250,000 double rubs

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Raven Wing

Ultraleather® Upholstery colors...

Raven Wing

Ultraleather® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple.

Earth Friendly
Ultraleather®  not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde.

Ultraleather® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik®  and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5.

Ultraleather® Upholstery is manufactured to meet the following specifications:

  • California AB 2998
  • Boston Fire Code-Test BFD 1X-1*
  • California Tech Bulletin #117
  • California Tech Bulletin #133*
  • Automotive (FMVSS-302)

Abrasion Standards

  • Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased.

NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Designer Upholstery Kit (G2)

Ultraleather® upholstery ad...

Designer Upholstery Kit (G2)

Ultraleather® upholstery adds even more luxury. It is a PVC Free material and contributes to LEED™ and BIFMA credits. Ultraleather is also GREENGUARD Gold Certified.

Plush Upholstery Kit (G2)

Upgrade to the Plush Upholstery for an even more aesthetically plea...

Plush Upholstery Kit (G2)

Upgrade to the Plush Upholstery for an even more aesthetically pleasing and comfortable chair.  It uses one of MTI’s standard Ultraleather® PVC Free upholstery colors. Ultraleather is a very soft leather like urethane based material and is also more durable on a rub test than most other fabrics.

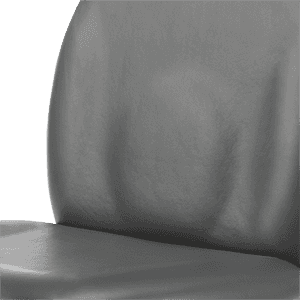

Seamless Upholstery Kit (G2)

Premium upholstery eliminates exposed s...

Seamless Upholstery Kit (G2)

Premium upholstery eliminates exposed stitching, promoting improved disinfection and an easy to clean surface.

Deep Oval Articulating Headrest (G2)

WATCH VIDEO Deep Oval Ar...

Deep Oval Articulating Headrest (G2)

WATCH VIDEO Deep Oval Articulating Headrest is another very popular headrest is you always want your patient’s head located in the middle of the headrest. The deep cushion also provides the patient with security as the cushion secures their head onto the cushion.

The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.

Deep Oval Articulating Headrest with Forearm Supports (G2)

WATCH VIDEO...

Deep Oval Articulating Headrest with Forearm Supports (G2)

WATCH VIDEO Deep Oval Articulating Headrest with Forearm Supports is one of our most popular headrests. The forearm supports are used to support the assistant’s arms when chinning, reducing staff fatigue when supporting a patient’s head during a procedure. The supports are removable and pivot. The resilient urethane closed cell molded construction is far superior in comfort to the machined, hard plastic or the sandwiched vinyl construction of competitive forearm support headrests.

The deep cushion also provides the patient with security as the cushion secures their head onto the cushion. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.

Head Stabilizer

MTI’s head stabilizer cushion is a very convenient way of sta...

Head Stabilizer

MTI’s head stabilizer cushion is a very convenient way of stabilizing the patient’s head during temporal procedures. The cushion can easily be moved to either side of the headrest or removed completely when not needed. It is also adjustable inward and outward from the headrest to accommodate every patient. The cushion uses only MTI’s soft Ultraleather® Raven Wing PVC free fabric to assure your patient’s are comfortable.

> Only available in Ultraleather® Raven Wing
> Requires Ophthalmic Headrest

Horseshoe Articulating Headrest (G2)

WATCH VIDEO Horseshoe/Do...

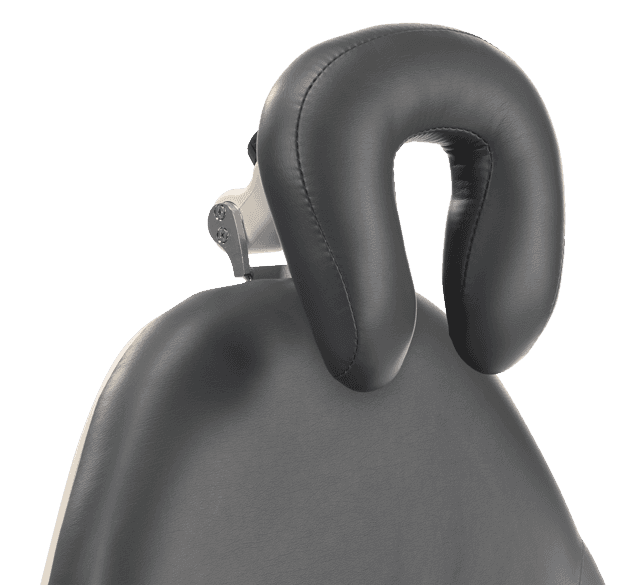

Horseshoe Articulating Headrest (G2)

WATCH VIDEO Horseshoe/Donut Articulating Headrest is used for extended length prone positioning. This headrest cushion is extra soft for patient comfort while in the prone position.

The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.

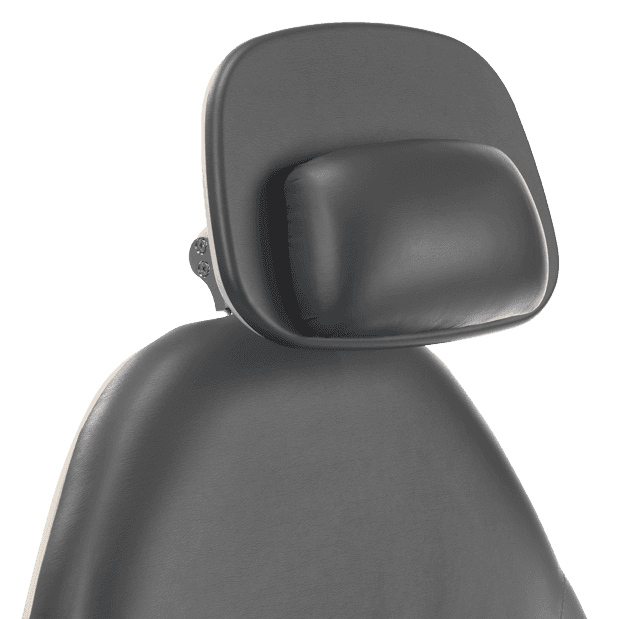

Magnetic Headrest (G2)

WATCH VIDEO The magnetic...

Magnetic Headrest (G2)

WATCH VIDEO The magnetic headrest allows the caregiver to easily slide the rectangular upholstered section anywhere along the flat section of the headrest for optimal positioning of the patient’s head and neck.

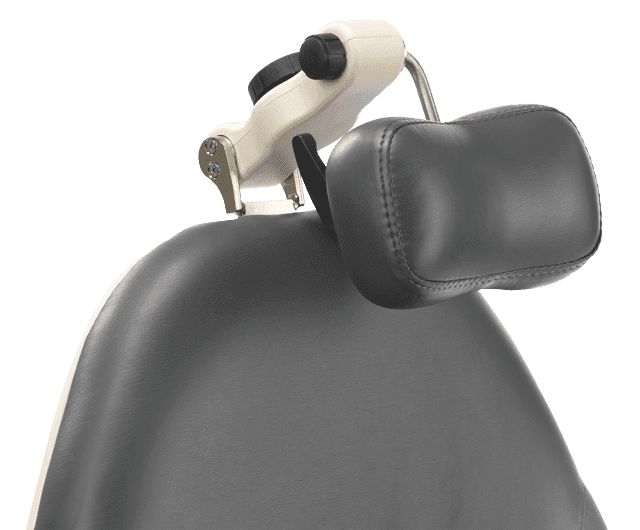

Prosthetic Articulating Headrest (G2)

WATCH VIDEO Prosthetic o...

Prosthetic Articulating Headrest (G2)

WATCH VIDEO Prosthetic or Cradle Articulating Headrest provides excellent access to the patient’s head, especially the crown of the head. The cushion is 4” (10.2 cm) high x 8” (20.3 cm) wide. It has an extra lock mechanism for position the head in just the right position.

The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.

Prosthetic Articulating Headrest with Forearm Supports (G2)

WATCH VIDEO...

Prosthetic Articulating Headrest with Forearm Supports (G2)

WATCH VIDEO Prosthetic or Cradle Articulating Headrest with Forearm Supports provides excellent access to the patient’s head, especially the crown of the head. The forearm supports are used to support the assistant’s arms when chinning, reducing staff fatigue when supporting a patient’s head during a procedure. The supports are removable and pivot. The resilient urethane closed cell molded construction is far superior in comfort to the machined, hard plastic or the sandwiched vinyl construction of competitive forearm support headrests.

The cushion is 4” (10.2 cm) high x 8” (20.3 cm) wide. It has an extra lock mechanism for position the head in just the right position. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.

Rectangular Articulating Headrest (G2)

WATCH VIDEO Rectangular ...

Rectangular Articulating Headrest (G2)

WATCH VIDEO Rectangular Articulating Headrest is beneficial if you need to move the patient’s head around the headrest for different procedures. The cushion is 8” (20.3 cm) high x 12” (30.5 cm) wide.

The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.

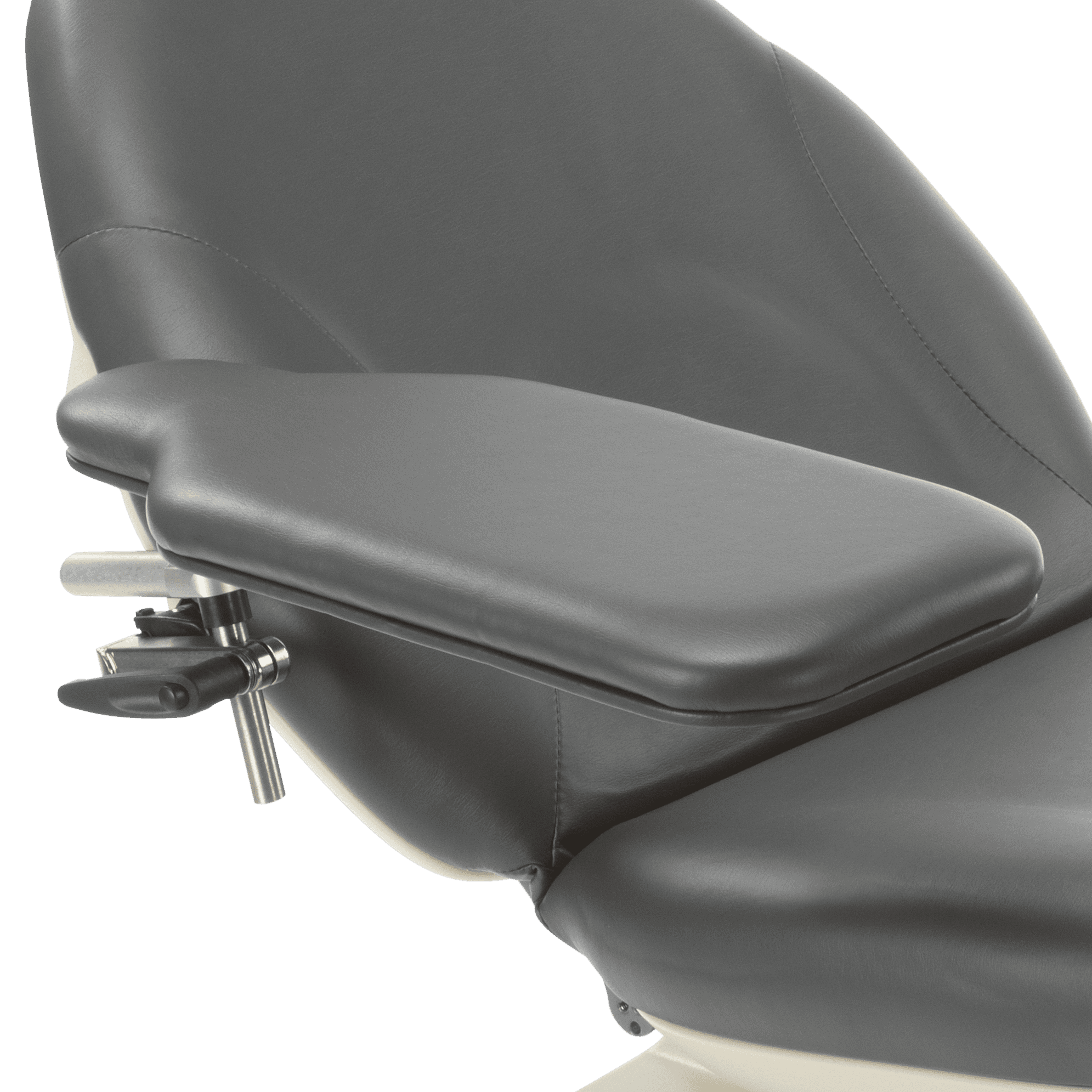

Hand/Forearm Table (G2)

WATCH VIDEO The Hand/For...

Hand/Forearm Table (G2)

WATCH VIDEO The Hand/Forearm Procedure Table plugs into MTI’s patented Floating Arm™ system which allows the arm to move with the back of the chair, eliminating the need for continual readjustment for your patient. Adjust the arm up/down, in/out, 360°, and up/down yaw movements and it is removable.

Hand/Arm Surgery Table (G2)

Hand/Arm Surgery Back Rail Mounted Table with rail lock (36″ ...

Hand/Arm Surgery Table (G2)

Hand/Arm Surgery Back Rail Mounted Table with rail lock (36″ [91.4 cm] L x 12″ [30.5 cm] W). Adjust the arm up/down, in/out, 360°, vertically, and yaw movements and is removable.

> Requires Back Rails

IV Arm, 18” Standard (G2)

WATCH VIDEO The Standard...

IV Arm, 18” Standard (G2)

WATCH VIDEO The Standard 8-way Removable 18″ (45.7 cm) IV/Surgery Arm is mounted to MTI’s patented Floating Arm™ system which allows the arm to move with the back of the chair, eliminating the need for continual readjustment for your patient or it can be seat rail mounted. Adjust the arm up/down, in/out, 360°, and up/down yaw movements and it is removable.

< Requires Accessory Rail when seat rail mounted

IV Arm, 18” Deluxe (G2)

WATCH VIDEO The Deluxe 8...

IV Arm, 18” Deluxe (G2)

WATCH VIDEO The Deluxe 8-way Removable 18″ (45.7 cm) IV/Surgery Arm is mounted to MTI’s patented Floating Arm™ system which allows the arm to move with the back of the chair, eliminating the need for continual readjustment for your patient or it can be seat rail mounted. To adjust the arm, with one hand simply grab the arm while squeezing the lever, move the arm to the desired location and release. Adjust the arm up/down, in/out, 360°, and up/down yaw movements and it is removable.

< Requires Accessory Rail when seat rail mounted

IV Arm, 24” Deluxe (G2)

WATCH VIDEO The Deluxe 8...

IV Arm, 24” Deluxe (G2)

WATCH VIDEO The Deluxe 8-way Back Rail Mounted 24″ (61 cm) IV/Surgery Arm allows arm adjustment with one hand by simply grasping the arm while squeezing the lever. Move the arm to the desired location and release. Adjust the arm up/down, in/out, 360°, and up/down yaw movements and it is removable.

< Requires Accessory Rail

Patient Arms (G2)

WATCH VIDEO The MTI pate...

Patient Arms (G2)

WATCH VIDEO The MTI patented Floating Arm System’s™ uniquely compensates or “floats” with the back section of the chair. This assures your patient’s always have arms in the proper position for comfort and use. These arms eliminate the need for continual readjustment of your patient arms and/or patient. The arms slide back for easy patient ingress/egress and are removed by pressing a button on the arm to facilitate better access to those patients with disabilities.

The arm system also provides for a unique way to manage your patient’s arms when in the prone position by swapping the arms (move the left arm to the right side and the right arm to the left side). This provides for arm rests when your patient making longer examinations and procedures much more comfortable.

Patient Arm, 4-Way Adjustable (G2)

WATCH VIDEO Standard 4-...

Patient Arm, 4-Way Adjustable (G2)

WATCH VIDEO Standard 4-way Removable Patient Arm with spline lock (14” [35.6 cm] L x 4” [10.2 cm] W) is available in a Floating or Seat Rail Mount. Adjust the arm up/down and 360° movements. This patent pending arm system allows the arms to move with the back of the chair, eliminating the need for continual readjustment of your patient.

> Requires Removable Floating Arm Option (RFAO) or Seat Rails

Transfer Supports/Bed Rails (G2)

WATCH VIDEO Transfer sup...

Transfer Supports/Bed Rails (G2)

WATCH VIDEO Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment. They provide a support for patients with disabilities assisting to independently transfer onto the chair, removing barriers for entry. They are also a bed rail providing security during procedures and examinations and for mobile applications provide safety during patient transport.

The transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system.

With the press of a button, adjust the support every 18° from 0° to 180°, allowing to position the support wherever the patient may need it.

Supporting up to 250 lbs. at the end of the support, you will never need to worry about using it for your bariatric patients.

Back Mounted Exam Light (G2)

WATCH VIDEO Back Mounted...

Back Mounted Exam Light (G2)

WATCH VIDEO Back Mounted – The Lumerus™ LED Exam Light is MTI’s longest lasting, compact, environmentally friendly examination light. This compact light flexible neck rates at 70,000 hours of average life with a 2.25″ (5.7 cm) head size. The flexible gooseneck design allows excellent positioning for any exam.

> 1 White LED
> 70,000 hour rate LED
> 4,100° K +/- 300° K
> Light Intensity @ 16″ (40.6 cm): 24,800 lux (2,300 fc)
> Spot Size @ 16″ (40.6 cm): 5” (12.7 cm) dia
> CRI: 80
> 1-year limited warranty

*Assumes 8 hours of continual use/day, 5 days a week for 52 weeks/year. Actual LED life may be longer.

> Mounts to backrest of some MTI Exam Chairs

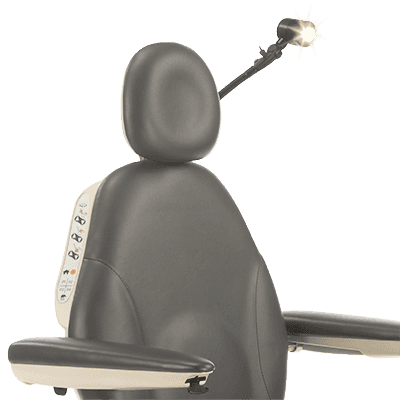

Post Mounted Exam Light (G2)

WATCH VIDEO Post Mounted...

Post Mounted Exam Light (G2)

WATCH VIDEO Post Mounted – The Lumerus™ LED Exam Light is MTI’s longest lasting, compact, environmentally friendly examination light. This compact light flexible neck rates at 70,000 hours of average life with a 2.25″ (5.7 cm) head size. The flexible gooseneck design allows excellent positioning for any exam.

> 1 White LED
> 70,000 hour rate LED
> 4,100° K +/- 300° K
> Light Intensity @ 16″ (40.6 cm): 24,800 lux (2,300 fc)
> Spot Size @ 16″ (40.6 cm): 5” (12.7 cm) dia
> CRI: 80
> 1-year limited warranty

*Assumes 8 hours of continual use/day, 5 days a week for 52 weeks/year. Actual LED life may be longer.

> Requires 1” (2.5 cm) post

Accessory Rails (G2)

WATCH VIDEO Accessory ra...

Accessory Rails (G2)

WATCH VIDEO Accessory rails are used to mount IV and Surgery Arms onto your chair’s back or seat. When the rails are not needed, remove the rail from your chair by a simple press of a button.

Base Accessory Mount (G2)

The Base Accessory Mount is for mounting mayo trays, IV rods, light...

Base Accessory Mount (G2)

The Base Accessory Mount is for mounting mayo trays, IV rods, lights, and other accessories to the chair’s base, saving valuable space in the procedure and exam room. The mount is ambidextrous so if workflow or room layout changes, it can easily accommodate.

Casters (G2)

Casters with individual locks mount in place of the leveling glides...

Casters (G2)

Casters with individual locks mount in place of the leveling glides. These casters provide mobility without sacrificing valuable floor space and creates plenty of space for Mayo stand legs.

< Raises base height 3.75″ (9.5 cm)
< The additional height added to the chair, disqualifies the chair for ADA Compliance

Duplex Outlet Kit (G2)

WATCH VIDEO Add a hospit...

Duplex Outlet Kit (G2)

WATCH VIDEO Add a hospital grade duplex outlet to the rear of your chair’s base for a convenient location for access to 115 volt power and to keep cords safe and out of the way.

< Only available for 115 volt outlets

< Rated for 3 amps

Electrosurgery Generator Mounting Bracket (G2)

WATCH VIDEO The Accessor...

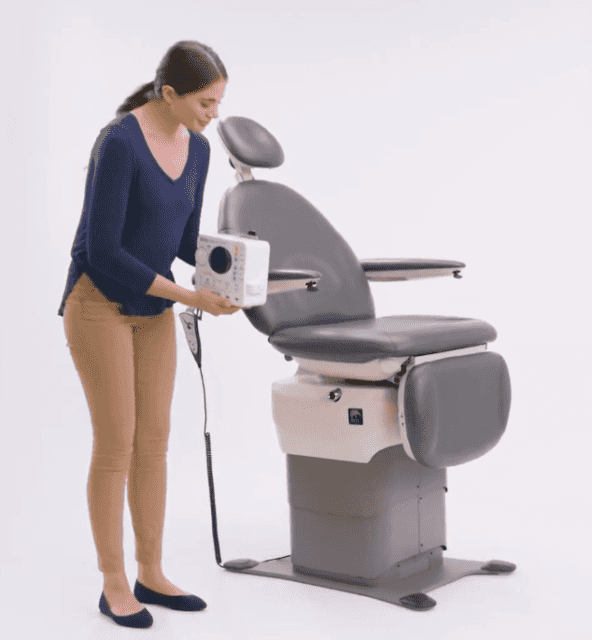

Electrosurgery Generator Mounting Bracket (G2)

WATCH VIDEO The Accessory Mount is for mounting electrosurgery devices and other accessories conveniently to your chair saving valuable floor and counter top space. It places the electrosurgery generator conveniently at reach. Couple with the duplex outlet kit mounted to the chair for an even cleaner, space saving setup.

< Accepts Conmed 2000, Bovie\Aaron 940/950 and Bovie Bantam Pro A952
< Requires Electrosurgery Generator Accessory Mount



Foot Control Slant Mount (G2)

WATCH VIDEO MTI’s foot...

Foot Control Slant Mount (G2)

WATCH VIDEO MTI’s foot control slant mount is an accessory that provides a mounting surface to place the foot control so it is out of the way during a procedure or during movement for mobile applications.

The Foot control slant mount can be mounted to a standard base or mobile base chair to provide a secure location to place for the foot control when it is not needed.

GStirrup Exam Boots w/ Gel Pad Lithotomy (G2)

The patented GStirrup Exam Boots slip easily over the heel cup supp...

GStirrup Exam Boots w/ Gel Pad Lithotomy (G2)

The patented GStirrup Exam Boots slip easily over the heel cup supports of nearly all existing exam tables – without tools!  The padded liner and simple patient straps secure the patient comfortably.  Use the Wedge to quickly fix the boot at the desired angle for a more controlled patient position.

Universal left/right mounting
Transports easily between exam rooms
Firm but flexible shell accommodates most patients’ calves.

IV Rod (G2)

WATCH VIDEO The IV Rod c...

IV Rod (G2)

WATCH VIDEO The IV Rod can attach to either side of the chair, saving valuable space in the procedure and exam room. The mount is ambidextrous so if workflow or room layout changes, it can easily accommodate.

Leveling Glide Extension, 2” (G2)

Add the 2″ (5.1 cm) leveling glides to your chair if you requ...

Leveling Glide Extension, 2” (G2)

Add the 2″ (5.1 cm) leveling glides to your chair if you require your chair to go even higher than the standard heights.

< The additional height added to the chair, disqualifies the chair for ADA Compliance

Mayo Tray (G2)

WATCH VIDEO MTI’s chai...

Mayo Tray (G2)

WATCH VIDEO MTI’s chair-mounted mayo trays are a space and time saving accessory which provides convenient access to instruments and other items needed during procedures.

Vertically adjustable up to twelve inches to accommodate a variety of heights, plus three hundred and sixty degrees of rotation and a dual arm system assures use for any application. The self-locking articulating arms provide quick and simple adjustments to any position.

Mayo Tray w/ Light Adapter (G2)

WATCH VIDEO MTI’s chai...

Mayo Tray w/ Light Adapter (G2)

WATCH VIDEO MTI’s chair-mounted mayo tray with light adapter is a space and time saving accessory which provides convenient access and comfort to instruments and other items needed during procedures.

Vertically adjustable up to twelve inches to accommodate a variety of heights, plus three hundred and sixty degrees of rotation and a dual arm system assures use for any application. The self-locking articulating arms provide quick and simple adjustments to any position.

Monitor Mount Assembly with Post (G2)

The Monitor Mount provides a post location on the 830, 829 and 550 ...

Monitor Mount Assembly with Post (G2)

The Monitor Mount provides a post location on the 830, 829 and 550 Tables to mount monitor trays and other accessories. This mount may be put one of the chair.

Paper Roll Holder, Adjustable 18″ or 21″ (G2)

WATCH VIDEO The adjustab...

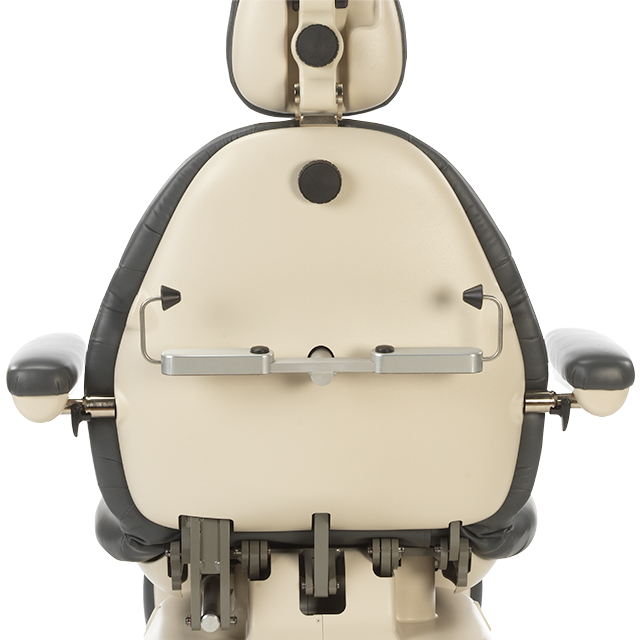

Paper Roll Holder, Adjustable 18″ or 21″ (G2)

WATCH VIDEO The adjustable paper roll holder accommodates 18″ or 21″ wide paper roll by a simple press of a button. The 3 1/2″ (53.3 cm x 8.9 cm) paper roll is conveniently located in the middle of the back section to avoid interfering with accessibility to the patient.

Power Cord, 3′ (G2)

This accessory provides a 3′ hospital grade power cord w/90 d...

Power Cord, 3′ (G2)

This accessory provides a 3′ hospital grade power cord w/90 degree plug for static mounting. (Not available for mobile or swivel base option)

Stirrups (G2)

WATCH VIDEO MTI’s stir...

Stirrups (G2)

WATCH VIDEO MTI’s stirrups are removable stirrups that attach to MTI’s chairs for procedures requiring access to the patient’s perineum.

Simply insert into MTI’s spline system to install and grasp the latch to remove.

Three horizontal locations and vertical adjustments provide the ultimate in patient comfort and accessibility.

Strap, Body Restraint (G2)

WATCH VIDEO Improve the ...

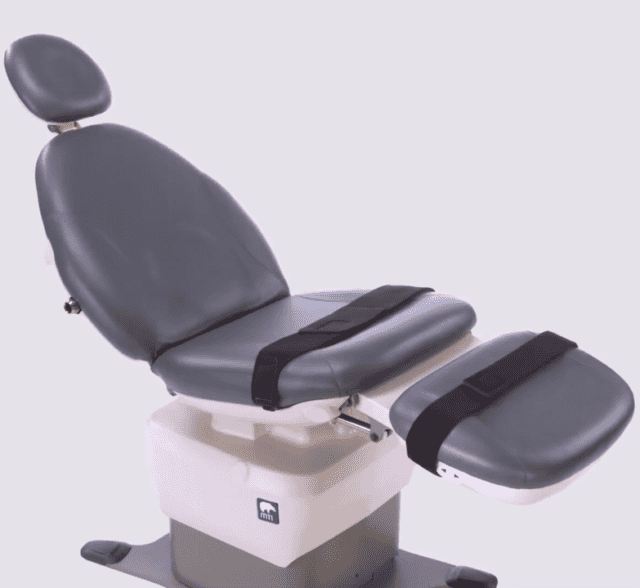

Strap, Body Restraint (G2)

WATCH VIDEO Improve the safety of your patients by securing your patient to chair during and after procedures. To accommodate different patient demographics, the restraint strap width is adjustable.

Strap, Leg Restraint (G2)

WATCH VIDEO Improve the ...

Strap, Leg Restraint (G2)

WATCH VIDEO Improve the safety of your patients by securing your patient to chair during and after procedures. To accommodate different patient demographics, the restraint strap width is adjustable.

Transfer Supports/Bed Rails (G2)

WATCH VIDEO Transfer sup...

Transfer Supports/Bed Rails (G2)

WATCH VIDEO Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment. They provide a support for patients with disabilities assisting to independently transfer onto the chair, removing barriers for entry. They are also a bed rail providing security during procedures and examinations and for mobile applications provide safety during patient transport.

The transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system.

With the press of a button, adjust the support every 18° from 0° to 180°, allowing to position the support wherever the patient may need it.

Supporting up to 250 lbs. at the end of the support, you will never need to worry about using it for your bariatric patients.

Vision Block (G2)

Visual Block Curtain allows you to easily and quickly block your pa...

Vision Block (G2)

Visual Block Curtain allows you to easily and quickly block your patient’s view while procedures are performed. The vision block screen can be mounted on either side of the G2 Products and is easy to install and rotate out of the way.

We thought you might also be interested

830 Story

MTI embarked on one of the largest projects that we have ever undertaken - Design the Perfect Procedure Chair. The journey began on the Medical Diagnostic Eq...

Read More

Are you ADA Aware?

New Regulations The Americans with Disabilities Act of 1990 (ADA) and Section 504 of the Rehabilitation Act of 1973 are federal civil rights laws that ...

Read More

7 Ways Healthcare will Change

With so many uncertainties in healthcare today, it’s difficult to predict what the future of healthcare will hold. However, Express Scripts ran a survey in A...

Read More
