Product Info
Description
Experience the MTI 550 Podiatry & Wound Care Chair – ADA compliant and luxuriously designed for easy patient ingress/egress and equal access. With its sleek and soft design, ultra-thin tapered backrest, and SmartTech™ and ComfortSync™ technology, this chair enhances safety, reduces energy consumption, and provides a personalized experience. Elevate your podiatry and wound care practice with the MTI 550 Chair today.
Designed to meet ADA compliance standards in all base versions – standard, swivel, or mobile – the 550 Podiatry & Wound Care chair provides easy patient ingress/egress and ensures equal access for patients and caregivers with disabilities.
MTI’s 550 chair combines a soft and sleek design with superior patient access. With an ultra-thin tapered backrest and contoured base plate, this chair offers both comfort and convenience for patients and caregivers. This chair features an independently controlled foot section with a 7″ powered extension that includes mounts for an optional debris tray and/or leg wrap support.
Equipped with SmartTech™ technology, the 550 Podiatry & Wound Care Chair features MTI’s innovative Smart Controller™ and Smart Safety™ features. This centralized computer controller enhances safety measures, reduces energy consumption, and provides smoother movement. It also offers additional memory options and customizable user preferences, delivering a personalized experience for patients and caregivers.
Upgrade your Podiatry /Wound Care practice with the MTI 550 Chair – provide exceptional care while prioritizing accessibility and comfort to enhance patient experiences.
- Low Voltage Motors: power lift, back, tilt, foot & foot extension
- Seat Height: 18.75”-39”*
- Seat Width: 25”
- Backrest: tapered
- Patient Load Capacity: 725 lbs.
- Control: foot
- Program Buttons: 4 dynamic user-programmable positions
- Home Button: programmable & ADA compliant
- Headrest: rectangular non-articulating
- Removable Upholstery: seamless or designer
- Legrest: knee-break w/7″ power foot extension
- Patient Arms: removable floating** (compensating)
- ADA Compliant Base: standard, 333° swivel or mobile (all ADA compliant)
- Frame: all-steel
- G2 Accessories: arm & foot spline attachment system provided for plug-n-play accessories, optional seat, base and back rail splines available (see details below)
- Safety Standards: Listed to the following standards
- Conf IEC 60601-1:2005 Ed.3+A1,C1:2014
- AAMI ES60601-1:2005+A1
- IEC 60601-1-2:2014 Ed.4
- Cert STD CSA C22.2#60601-1:2014 Ed.3
- TSCA Title VI Compliant
*Seat raises to 37″ for swivel and mobile base models
**Patents 10632037, 7862123, 8480172, 9125495, 9782319
Additional Patents Pending
- Seat Height:
- 18.75 - 37" Mobile Base
- 18.75 - 37" Swivel Base
- 18.75 - 39" – Std Base
- Seat Width:
- 25"
- Programmable Positions:
- 4 Program Buttons + Programmable Home
- Patient Capacity:
- 725 lbs.
- Base Options:
- ADA Compliant 333° Swivel
- ADA Compliant Mobile
- ADA Compliant Standard
- Debris Tray:
- Debris Tray Attachment (optional)
- Removable Upholstery:
- Designer
- Seamless
- Patient Arms:
- Floating Arms (standard)
- Control Choices:
- Foot Control (standard)
- Hand Control (optional)
- Leg Rest/Footrest:
- Knee Break Legrest w/7" Power Foot Extension
- Functions:
- Power Back
- Power Foot
- Power Foot Extension
- Power Lift
- Power Tilt
- Headrest:
- Rectangular Non-Articulating
- ADA CompliantComplies w/regulation 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment and 2010 ADA Standards for Accessible Design
- ComfortSync™The synchronous ergonomic movement of the chair as it moves from position-to-position.
- ControlsHand and Foot controls with sealed membrane for cleaning and disinfecting
- Extension7” power foot extension for taller patients
- Hassle FreeMaintenance-free joints. No lubricating joints...EVER
- HibernateAfter 60 minutes chair sleeps to save on energy
- HomeADA Compliant and User Programmable Home positions
- Memory4 Dynamic user programmable positions
- MovementRemovable slide back patient arms compensate with backrest movement.
- SafetySafety Lockout™ Safe Zones and Collision Avoidance System™ help keep the chair in safe positions
- Soft Start/StopTechnology providing smooth start and stop movements
- SpeedUltra-quiet DC motor lift is up to 30% faster than previous models
- SwivelADA Compliant 333° swivel base (optional)
- UniversalUniversal power supply for 100-240 volt applications
- UpholsteryQuick installation and removable for easy cleaning and replacement.
Downloads
Accessories

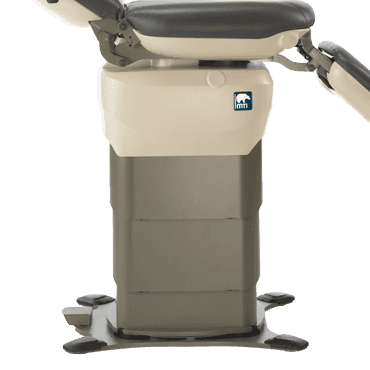

Standard Base (G2)
The easy-access contoured standard base plate offers easier patient access for the caregiver from all four sides. The base offers four leveling glides below the black leveling glide covers to adjust the chair to its ideal position.
333° Swivel Base (G2)
The 333-degree swivel base electronically unlocks to easily rotate the chair to any degree. The swivel base has two user-selective settings: Auto-lock and Lock/Unlock. In Auto-lock setting, the swivel will lock automatically after 30 seconds. In the Lock/Unlock setting, the swivel will remain unlocked until the swivel button is pressed. In either mode, for safety pressing any button will lock the swivel.
Low Boy Mobile Base with Locks (G2)
"Low Boy" Mobile Caster Base with Dual Caster Locks provides mobility without sacrificing low seat height. It only adds 0.5" (1.3 cm) to the entry height of the chair. If you want an easy-to-move chair with any demographic of patient, this is the mobile base for you!
> Raises base height 0.5" (1.3 cm)
> Factory Installed
> Not available with Swivel Base Option or any of the OSIT Tables
> Height: 7.92"
> Width: 36" mobile, 34.4" locked
> Depth: 33.9"
Hand Control Kit, Corded (G2)
MTI's Quad Function Programmable Hand Control has 4 user-programmable positions allowing you to put the table into your favorite positions automatically with the simple touch of a button and an auto return button for quick and easy return to the chair position. One of several types of controls available for your MTI chair. A convenient hook which can be mounted on either side chair's backrest or on the removable patient arms (if ordered); making an easy place to hang your hand control so it is out of your way, but still easy to reach. 4 user-programmable positions Auto return to...
Arctic
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Taupe
Premium Color: Extremely Durable, Seamless Upholstery Style
Papyrus
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Pine Cone
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Gunmetal
Premium Color: Extremely Durable, Seamless Upholstery Style
Mocha
Premium Color: Extremely Durable, Seamless Upholstery Style
Garnet
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Burgundy
Premium Color: Extremely Durable, Seamless Upholstery Style
Blue Ridge
Premium Color: Extremely Durable, Seamless Upholstery Style
Diplomat Blue
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Midnight Blue
Premium Color: Extremely Durable, Seamless Upholstery Style
Silver Pearl
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Dove Grey
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Dove
Premium Color: Extremely Durable, Seamless Upholstery Style
Slate
Premium Color: Extremely Durable, Seamless Upholstery Style
Schooner
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Black
Premium Color: Extremely Durable, Seamless Upholstery Style
Raven Wing
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Designer Upholstery Kit (G2)
Ultraleather® upholstery adds even more luxury. It is a PVC Free material and contributes to LEED™ and BIFMA credits. Ultraleather is also GREENGUARD Gold Certified.
Seamless Upholstery Kit (G2)
Premium upholstery eliminates exposed stitching, promoting improved disinfection and an easy to clean surface.
Fire Barrier (CAL-133)
MTI's TB133 option meets the California Technical Bulletin #133 (CAL-133) for flammability testing for seating furniture for use in public occupancies. MTI achieves compliance without the use of flame retardants. This option can be added to any upholstered item containing foam.
Deep Oval Articulating Headrest (G2)
WATCH VIDEO Deep Oval Articulating Headrest is another very popular headrest is you always want your patient's head located in the middle of the headrest. The deep cushion also provides the patient with security as the cushion secures their head onto the cushion. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on...
Horseshoe Articulating Headrest (G2)
WATCH VIDEO Horseshoe/Donut Articulating Headrest is used for extended length prone positioning. This headrest cushion is extra soft for patient comfort while in the prone position.
The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
Oval Articulating Headrest (G2)
WATCH VIDEO The Oval Articulating Headrest is one of our most popular headrests. The dimple in the headrest makes the patient's head very comfortable and keeps the it located in the middle of the headrest. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
Prosthetic Articulating Headrest (G2)
WATCH VIDEO Prosthetic or Cradle Articulating Headrest provides excellent access to the patient's head, especially the crown of the head. The cushion is 4” (10.2 cm) high x 8” (20.3 cm) wide. It has an extra lock mechanism for position the head in just the right position. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by...
Rectangular Articulating Headrest (G2)
WATCH VIDEO Rectangular Articulating Headrest is beneficial if you need to move the patient's head around the headrest for different procedures. The cushion is 8” (20.3 cm) high x 12” (30.5 cm) wide. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
Hand/Arm Surgery Table (G2)
Hand/Arm Surgery Back Rail Mounted Table with rail lock (36" [91.4 cm] L x 12" [30.5 cm] W). Adjust the arm up/down, in/out, 360°, vertically, and yaw movements and is removable.
> Requires Back Rails
Hand/Forearm Table (G2)
WATCH VIDEO The Hand/Forearm Procedure Table plugs into MTI’s patented Floating Arm™ system which allows the arm to move with the back of the chair, eliminating the need for continual readjustment for your patient. Adjust the arm up/down, in/out, 360°, and up/down yaw movements and it is removable.
IV Arm, 24” Deluxe (G2)
WATCH VIDEO The Deluxe 8-way Back Rail Mounted 24" (61 cm) IV/Surgery Arm allows arm adjustment with one hand by simply grasping the arm while squeezing the lever. Move the arm to the desired location and release. Adjust the arm up/down, in/out, 360°, and up/down yaw movements and it is removable.
< Requires Accessory Rail
Transfer Supports/Bed Rails (G2)
WATCH VIDEO Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment. They provide a support for patients with disabilities assisting to independently transfer onto the chair, removing barriers for entry. They are also a bed rail providing security during procedures and examinations and for mobile applications provide safety during patient transport. The transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system. With the press of a button, adjust the support every 18° from 0° to 180°, allowing...
Post Mounted Exam Light (G2)
WATCH VIDEO Post Mounted - The Lumerus™ LED Exam Light is MTI’s longest lasting, compact, environmentally friendly examination light. This compact light flexible neck rates at 70,000 hours of average life with a 2.25" (5.7 cm) head size. The flexible gooseneck design allows excellent positioning for any exam. > 1 White LED > 70,000 hour rate LED > 4,100° K +/- 300° K > Light Intensity @ 16" (40.6 cm): 24,800 lux (2,300 fc) > Spot Size @ 16" (40.6 cm): 5” (12.7 cm) dia > CRI: 80 > 1-year limited warranty *Assumes 8 hours of continual use/day, 5 days...
Accessory Rails (G2)
WATCH VIDEO Accessory rails are used to mount IV and Surgery Arms onto your chair's back or seat. When the rails are not needed, remove the rail from your chair by a simple press of a button.
Base Accessory Mount (G2)
The Base Accessory Mount is for mounting mayo trays, IV rods, lights, and other accessories to the chair's base, saving valuable space in the procedure and exam room. The mount is ambidextrous so if workflow or room layout changes, it can easily accommodate.
Casters (G2)
Casters with individual locks mount in place of the leveling glides. These casters provide mobility without sacrificing valuable floor space and creates plenty of space for Mayo stand legs.
< Raises base height 3.75" (9.5 cm)
< The additional height added to the chair, disqualifies the chair for ADA Compliance
Debris Tray (G2)
This option adds a removable foot spline-mounted debris tray to the MTI 550 Podiatry & Wound Care Chair.
- This debris tray is available for standard, swivel and mobile base models
- This debris tray is removable
Duplex Outlet Kit (G2)
WATCH VIDEO Add a hospital grade duplex outlet to the rear of your chair's base for a convenient location for access to 115 volt power and to keep cords safe and out of the way.
< Only available for 115 volt outlets
< Rated for 3 amps
Electrosurgery Generator Mounting Bracket (G2)
WATCH VIDEO The Accessory Mount is for mounting electrosurgery devices and other accessories conveniently to your chair saving valuable floor and counter top space. It places the electrosurgery generator conveniently at reach. Couple with the duplex outlet kit mounted to the chair for an even cleaner, space saving setup.
< Accepts Conmed 2000, Bovie\Aaron 940/950 and Bovie Bantam Pro A952
< Requires Electrosurgery Generator Accessory Mount
Foot Control Slant Mount (G2)
WATCH VIDEO MTI’s foot control slant mount is an accessory that provides a mounting surface to place the foot control so it is out of the way during a procedure or during movement for mobile applications.
The Foot control slant mount can be mounted to a standard base or mobile base chair to provide a secure location to place for the foot control when it is not needed.
GStirrup Exam Boots w/ Gel Pad Lithotomy (G2)
The patented GStirrup Exam Boots slip easily over the heel cup supports of nearly all existing exam tables – without tools! The padded liner and simple patient straps secure the patient comfortably. Use the Wedge to quickly fix the boot at the desired angle for a more controlled patient position.
Universal left/right mounting
Transports easily between exam rooms
Firm but flexible shell accommodates most patients’ calves.
IV Rod (G2)
WATCH VIDEO The IV Rod can attach to either side of the chair, saving valuable space in the procedure and exam room. The mount is ambidextrous so if workflow or room layout changes, it can easily accommodate.
Leg Wrapping Support (G2)
Avoid health care professional injury by using MTI’s patent pending leg wrapping support. The patent pending leg wrapping support is a dual function support providing a calf support for wrapping the foot/heel and a heel support for wrapping the rest of the leg. The removable leg wrapping support is made from aluminum for a light-weight yet very strong support and is non-porous coated for ease in cleaning and disinfecting. The support can easily be moved to either the patient’s left or right hand side of the foot section for ease of wrapping either leg or heel. Spline kits are not...
Leveling Glide Extension, 2” (G2)
Add the 2" (5.1 cm) leveling glides to your chair if you require your chair to go even higher than the standard heights.
< The additional height added to the chair, disqualifies the chair for ADA Compliance
Mayo Tray (G2)
WATCH VIDEO MTI’s chair-mounted mayo trays are a space and time saving accessory which provides convenient access to instruments and other items needed during procedures.
Vertically adjustable up to twelve inches to accommodate a variety of heights, plus three hundred and sixty degrees of rotation and a dual arm system assures use for any application. The self-locking articulating arms provide quick and simple adjustments to any position.
Monitor Mount Assembly with Post (G2)
The Monitor Mount provides a post location on the 830, 829 and 550 Tables to mount monitor trays and other accessories. This mount may be put one of the chair.
Paper Roll Holder, Adjustable 18" or 21" (G2)
WATCH VIDEO The adjustable paper roll holder accommodates 18" or 21" wide paper roll by a simple press of a button. The 3 1/2" (53.3 cm x 8.9 cm) paper roll is conveniently located in the middle of the back section to avoid interfering with accessibility to the patient.
Power Cord, 3' (G2)
This accessory provides a 3' hospital grade power cord w/90 degree plug for static mounting. (Not available for mobile or swivel base option)
Stirrups (G2)
WATCH VIDEO MTI’s stirrups are removable stirrups that attach to MTI’s chairs for procedures requiring access to the patient’s perineum.
Simply insert into MTI’s spline system to install and grasp the latch to remove.
Three horizontal locations and vertical adjustments provide the ultimate in patient comfort and accessibility.
Strap, Body Restraint (G2)
WATCH VIDEO Improve the safety of your patients by securing your patient to chair during and after procedures. To accommodate different patient demographics, the restraint strap width is adjustable.
Strap, Leg Restraint (G2)
WATCH VIDEO Improve the safety of your patients by securing your patient to chair during and after procedures. To accommodate different patient demographics, the restraint strap width is adjustable.
Transfer Supports/Bed Rails (G2)
WATCH VIDEO Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment. They provide a support for patients with disabilities assisting to independently transfer onto the chair, removing barriers for entry. They are also a bed rail providing security during procedures and examinations and for mobile applications provide safety during patient transport. The transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system. With the press of a button, adjust the support every 18° from 0° to 180°, allowing...
Vision Block (G2)
Visual Block Curtain allows you to easily and quickly block your patient's view while procedures are performed. The vision block screen can be mounted on either side of the G2 Products and is easy to install and rotate out of the way.
