Description

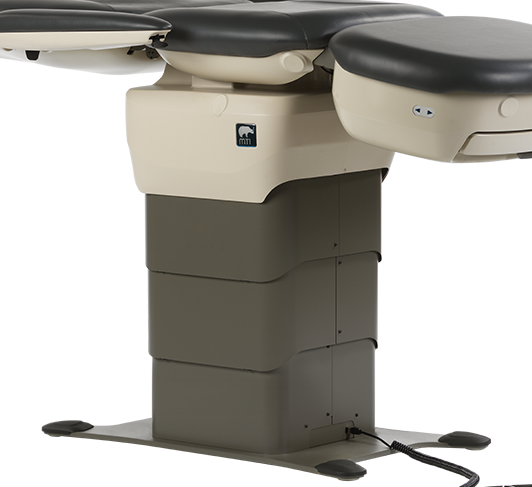

The MTI 529W Podiatry & Wound Care Chair is ADA compliant and designed for easy patient ingress/egress and equal accessibility, this chair features a redesigned powered foot section with a pull-out stainless steel debris tray. With a high patient weight capacity of 850 lbs and an wider seat width, the 529W is ideal for bariatric patients. With advanced SmartTech™ and ComfortSync™ technologies, the 529W delivers optimal luxury, comfort, and safety. Upgrade your podiatry and wound care practice with the MTI 529W Podiatry & Wound Care Chair, designed to enhance patient experiences and provide exceptional accessibility.
Experience the latest innovation in podiatry and wound care for bariatric patients with the MTI 529W Podiatry & Wound Care Chair. This chair sets a new standard in ADA compliance, both standard and swivel base versions offer easy patient ingress/egress and equal access for patients and caregivers with disabilities when used with the transfer support. By incorporating ADA compliant features such as low entry height chairs and transfer support, the 529W chair helps reduce the likelihood of injuries to both patients and caregivers. Patients can confidently transfer onto the chair surface without assistance, promoting independence and safety.
MTI has elevated its renowned line of Podiatry/Wound Care chairs with a redesigned powered foot section featuring a convenient pull-out stainless steel debris tray. The 529W Chair boasts a remarkable 850 lb patient weight capacity and a wider seat for bariatric patients, ensuring durability and comfort while helping to improve the patient outcomes.
MTI’s patented SmartTech™ and ComfortSync™ technologies provide exceptional luxury and comfort with Soft Start/Stop movements and programmable positioning capabilities that enhance the overall patient experience.
Upgrade your Podiatry or Wound Care practice with the MTI 529W Podiatry & Wound Care Chair – the pinnacle of ADA compliance, comfort, and accessibility.
- Low Voltage Motors: power lift, back, tilt, foot extension
- Seat Height: 18.75”-39”
- Seat Width: 30”
- Backrest: integrated headrest, tapered
- Patient Load Capacity: 850 lbs.
- Control: foot control with optional foot section mounted hand control
- Program Buttons: 4 dynamic user-programmable positions
- Home Button: programmable & ADA compliant
- Headrest: integrated into backrest
- Removable Upholstery: seamless or designer
- Legrest: non knee-break with 11″ power footrest extension
- Patient Arms: removable floating** (compensating)
- Leveling Glides: adjustable and built-in
- ADA Compliant Base: standard
- Frame: all-steel
- G2 Accessories: plug-n-play accessories, optional seat, base, foot and back rail splines available (see details below)
- Safety Standards: Listed to the following standards
- Conf IEC 60601-1:2005 Ed.3+A1,C1:2014
- AAMI ES60601-1:2005+A1
- IEC 60601-1-2:2014 Ed.4
- Cert STD CSA C22.2#60601-1:2014 Ed.3
- TSCA Title VI Compliant
**Patents 10632037, 7862123, 8480172, 9125495, 9782319
Additional Patents Pending
- Seat Height:
- 18.75 - 39" – Std Base
- Seat Width:
- 30"
- Programmable Positions:
- 4 Program Buttons + Programmable Home
- Patient Capacity:
- 850 lbs.
- Base Options:
- ADA Compliant Standard
- Headrest:
- Contour
- Removable Upholstery:
- Designer
- Seamless
- Patient Arms:
- Floating Arms (standard)
- Control Choices:
- Foot Control (standard)
- Hand Control (optional)
- Leg Rest/Footrest:
- Non Knee-Break Contour
- Functions:
- Power Back
- Power Foot Extension
- Power Lift
- Power Tilt
- Debris Tray:
- Pull-out Debris Tray
- ADA CompliantComplies w/regulation 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment and 2010 ADA Standards for Accessible Design
- ComfortSync™The synchronous ergonomic movement of the chair as it moves from position-to-position.
- Extension7” power foot extension for taller patients
- Foot ControlFoot control with sealed membrane for cleaning and disinfecting
- Hassle FreeMaintenance-free joints. No lubricating joints...EVER
- HibernateAfter 60 minutes chair sleeps to save on energy
- HomeADA Compliant and User Programmable Home positions
- Memory4 Dynamic user programmable positions
- MovementRemovable slide back patient arms compensate with backrest movement.
- SafetySafety Lockout™ Safe Zones and Collision Avoidance System™ help keep the chair in safe positions
- Soft Start/StopTechnology providing smooth start and stop movements
- SpeedUltra-quiet DC motor lift is up to 30% faster than previous models
- UniversalUniversal power supply for 100-240 volt applications
- UpholsteryQuick installation and removable for easy cleaning and replacement.
Products Videos
Downloads
Accessories
Standard Base (G2)
The easy-access contoured standard base plate offers easier patient access for the caregiver from all four sides. The base offers four leveling glides below the black leveling glide covers to adjust the chair to its ideal position.
Corded Hand Control (529)
The optional hand control accessory can be attached to either side of the 528, 529 and 529W’s foot section and is removable for added flexibility.
Arctic
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Taupe
Premium Color: Extremely Durable, Seamless Upholstery Style
Papyrus
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Pine Cone
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Gunmetal
Premium Color: Extremely Durable, Seamless Upholstery Style
Mocha
Premium Color: Extremely Durable, Seamless Upholstery Style
Garnet
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Burgundy
Premium Color: Extremely Durable, Seamless Upholstery Style
Blue Ridge
Premium Color: Extremely Durable, Seamless Upholstery Style
Diplomat Blue
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Midnight Blue
Premium Color: Extremely Durable, Seamless Upholstery Style
Silver Pearl
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Dove Grey
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Dove
Premium Color: Extremely Durable, Seamless Upholstery Style
Slate
Premium Color: Extremely Durable, Seamless Upholstery Style
Schooner
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Black
Premium Color: Extremely Durable, Seamless Upholstery Style
Raven Wing
Ultraleather® Color: Soft & Luxurious, Designer Upholstery Style
Designer Upholstery Kit (G2)
Ultraleather® upholstery adds even more luxury. It is a PVC Free material and contributes to LEED™ and BIFMA credits. Ultraleather is also GREENGUARD Gold Certified.
Seamless Upholstery Kit (G2)
Premium upholstery eliminates exposed stitching, promoting improved disinfection and an easy to clean surface.
Hand/Forearm Table (G2)
WATCH VIDEO The Hand/Forearm Procedure Table plugs into MTI’s patented Floating Arm™ system which allows the arm to move with the back of the chair, eliminating the need for continual readjustment for your patient. Adjust the arm up/down, in/out, 360°, and up/down yaw movements and it is removable.
Transfer Supports/Bed Rails (G2)
WATCH VIDEO Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment. They provide a support for patients with disabilities assisting to independently transfer onto the chair, removing barriers for entry. They are also a bed rail providing security during procedures and examinations and for mobile applications provide safety during patient transport. The transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system. With the press of a button, adjust the support every 18° from 0° to 180°, allowing...
Base Accessory Mount (G2)
The Base Accessory Mount is for mounting mayo trays, IV rods, lights, and other accessories to the chair's base, saving valuable space in the procedure and exam room. The mount is ambidextrous so if workflow or room layout changes, it can easily accommodate.
Caster Feet (G2)
The Caster Feet make the chair mobile to be able to move it from room to room.
Duplex Outlet Kit (G2)
WATCH VIDEO Add a hospital grade duplex outlet to the rear of your chair's base for a convenient location for access to 115 volt power and to keep cords safe and out of the way.
< Only available for 115 volt outlets
< Rated for 3 amps
IV Rod (G2)
WATCH VIDEO The IV Rod can attach to either side of the chair, saving valuable space in the procedure and exam room. The mount is ambidextrous so if workflow or room layout changes, it can easily accommodate.
Leg Wrapping Support (G2)
Avoid health care professional injury by using MTI’s patent pending leg wrapping support. The patent pending leg wrapping support is a dual function support providing a calf support for wrapping the foot/heel and a heel support for wrapping the rest of the leg. The removable leg wrapping support is made from aluminum for a light-weight yet very strong support and is non-porous coated for ease in cleaning and disinfecting. The support can easily be moved to either the patient’s left or right hand side of the foot section for ease of wrapping either leg or heel. Spline kits are not...
Leveling Glide Extension, 2” (G2)
Add the 2" (5.1 cm) leveling glides to your chair if you require your chair to go even higher than the standard heights.
< The additional height added to the chair, disqualifies the chair for ADA Compliance
Mayo Tray (G2)
WATCH VIDEO MTI’s chair-mounted mayo trays are a space and time saving accessory which provides convenient access to instruments and other items needed during procedures.
Vertically adjustable up to twelve inches to accommodate a variety of heights, plus three hundred and sixty degrees of rotation and a dual arm system assures use for any application. The self-locking articulating arms provide quick and simple adjustments to any position.
Mayo Tray w/ Light Adapter (G2)
WATCH VIDEO MTI’s chair-mounted mayo tray with light adapter is a space and time saving accessory which provides convenient access and comfort to instruments and other items needed during procedures.
Vertically adjustable up to twelve inches to accommodate a variety of heights, plus three hundred and sixty degrees of rotation and a dual arm system assures use for any application. The self-locking articulating arms provide quick and simple adjustments to any position.
Paper Roll Holder, Adjustable 18" or 21" (G2)
WATCH VIDEO The adjustable paper roll holder accommodates 18" or 21" wide paper roll by a simple press of a button. The 3 1/2" (53.3 cm x 8.9 cm) paper roll is conveniently located in the middle of the back section to avoid interfering with accessibility to the patient.
Power Cord, 3' (G2)
This accessory provides a 3' hospital grade power cord w/90 degree plug for static mounting. (Not available for mobile or swivel base option)
Strap, Body Restraint (G2)
WATCH VIDEO Improve the safety of your patients by securing your patient to chair during and after procedures. To accommodate different patient demographics, the restraint strap width is adjustable.
Transfer Supports/Bed Rails (G2)
WATCH VIDEO Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment. They provide a support for patients with disabilities assisting to independently transfer onto the chair, removing barriers for entry. They are also a bed rail providing security during procedures and examinations and for mobile applications provide safety during patient transport. The transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system. With the press of a button, adjust the support every 18° from 0° to 180°, allowing...
Vision Block (G2)
Visual Block Curtain allows you to easily and quickly block your patient's view while procedures are performed. The vision block screen can be mounted on either side of the G2 Products and is easy to install and rotate out of the way.
