463 Exam Chair

Name: 463 Exam Chair
Brand: Medical Technology Industries
Rating: 5 (1 reviews)

Home / Products

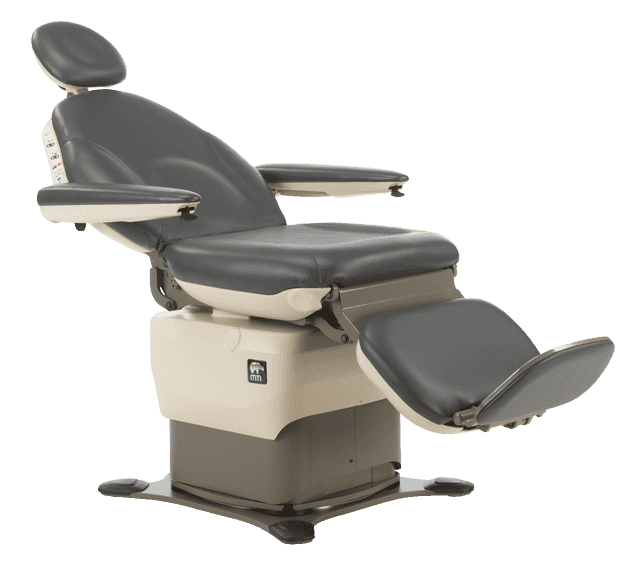

463 Exam Chair

MTI’s 463 Exam Chair is ADA compliant for enhanced accessibility. With all the features you love from the 464, the 463 Exam chair provides a reliable seating option without the tilt capability. The 463 is equipped with SmartTech™ and ComfortSync™ technologies providing smoother movement, enhanced safety, and customizable options. With a soft and sleek design, ultra-thin tapered backrest, and contoured base plate, it offers superior caregiver access and luxurious comfort. Elevate your healthcare facility with the MTI 463 Exam Chairs, designed to enhance accessibility and patient experiences.

MTI’s 463 Exam Chair is designed to meet ADA compliance standards, ensuring easy patient ingress/egress and equal access for patients and caregivers with disabilities.

Every 463 Chair comes with MTI’s innovative SmartTech™ technology featuring Smart Controller™ and SmartSafety™ technology. The centralized computer controller enhances safety, reduces energy consumption, and provides smoother movement, additional memory options, and customizable user preferences. The 463 chair takes comfort to the next level with its exclusive ComfortSync™ technology. Designed to provide optimal relaxation, this advanced feature synchronizes the angle of the footrest with the movement of the coordinate leg rest as the back reclines.

This fully-powered, programmable exam/procedure chair comes standard with EasyView™ side-mounted switches that feature 4 programmable positions, a programmable home position, and ADA home along with electronic swivel activation and safety lockout functionality. Caregivers are able to easily position patients quickly and effortlessly to provide a higher level of care for improved patient outcomes.

Low Voltage Motors: power lift, and backrest coordinated with footrest featuring ComfortSync™
Seat Height: 18.75”-37”* (2.75″ lower than ANY other ENT chair on the market)
Seat Width: 21”
Backrest: tapered
Patient Load Capacity: 725 lbs.
Controls: dual EasyView™ chair back mounted membrane hand switches with LED indicators (foot control optional)
Programmable Buttons: 4 dynamic user-programmable buttons
Home Button: programmable & ADA compliant home positions
Headrest: oval articulating
Removable Upholstery: seamless or designer

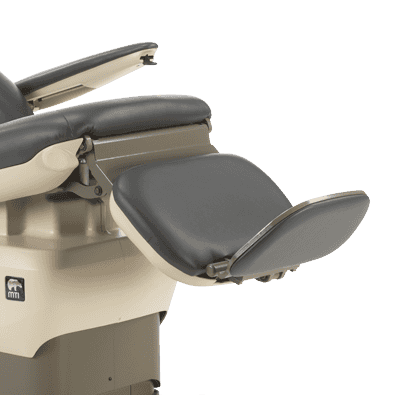

Leg rest: backrest coordinated footrest with 3″ power extension featuring ComfortSync™
Patient Arms: removable floating (compensating)
ADA Compliant Base: 333° swivel
Frame: all-steel
G2 Accessories: multiple options (see details below)
Safety Standards: Listed to the following standards
- Conf IEC 60601-1:2005 Ed.3+A1,C1:2014
- AAMI ES60601-1:2005+A1
- IEC 60601-1-2:2014 Ed.4
- Cert STD CSA C22.2#60601-1:2014 Ed.3
- TSCA Title VI Compliant

Patents 10632037, 10898402, 7862123, 8480172, 9125495, 9782319
Additional Patents Pending

Contact a Sales Rep Book a Demo

Headrest: Oval Articulating
Base Options: ADA Compliant 333° Swivel
Control Choices: Foot Control (optional), Hand Switches (standard)
Functions: Power Back w/Coordinated Foot, Power Lift, Power Foot Extension
Seat Height: 18.75 - 37" Swivel Base
Patient Arms: Floating Arms (standard)
Removable Upholstery: Designer, Seamless
Seat Width: 21"
Leg Rest/Footrest: Flip-Up Footrest, Coordinated Footrest
Programmable Positions: 4 Program Buttons + Programmable Home
Patient Capacity: 725 lbs.

ADA Compliant

Complies w/regulation 2017 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment and 2010 ADA Standards for Accessible Design

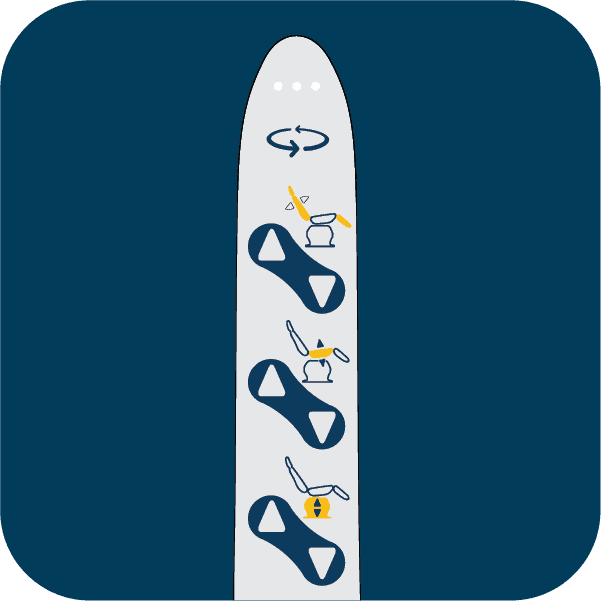

EasyView™ Side Mounted Hand Switches

EasyView™ chair back mounted membrane switches
ComfortSync™

The synchronous ergonomic movement of the chair as it moves from position-to-position.
Hassle Free

Maintenance-free joints. No lubricating joints...EVER
Hibernate

After 60 minutes chair sleeps to save on energy
Home

ADA Compliant and User Programmable Home positions
Memory

4 Dynamic user programmable positions
Movement

Removable slide back patient arms compensate with backrest movement.
Safety

Safety Lockout™ Safe Zones and Collision Avoidance System™ help keep the chair in safe positions
Soft Start/Stop

Technology providing smooth start and stop movements
Speed

Ultra-quiet DC motor lift is up to 30% faster than previous models
Swivel

ADA Compliant 333° swivel base
Universal

Universal power supply for 100-240 volt applications
Upholstery

Quick installation and removable for easy cleaning and replacement.

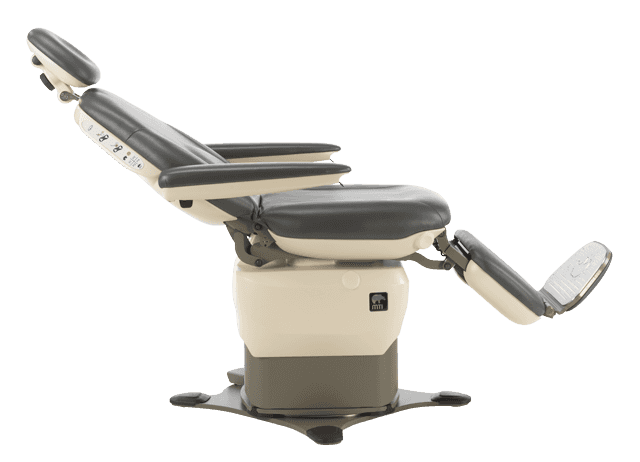

333° Swivel Base (G2)

The 333-degree swivel base electronically unlocks to easily rotate the chair to any degree. The swivel base has two user-selective settings: Auto-lock and Lock/Unlock. In Auto-lock setting, the swivel will lock automatically after 30 seconds. In the Lock/Unlock setting, the swivel will remain unlocked until the swivel button is pressed. In either mode, for safety pressing any button will lock the swivel.
View Full Details

Features

Purchase Type

Outright

Warranty

90-day

Returnable

No

Patient Capacity

750 lbs

Specs

Item Number

658-987987

Weight

45 lbs

Arctic

Ultraleather^® Color: Soft & Luxurious, Designer Upholstery Style
Taupe

Premium Color: Extremely Durable, Seamless Upholstery Style
Papyrus

Ultraleather^® Color: Soft & Luxurious, Designer Upholstery Style
Pine Cone

Ultraleather^® Color: Soft & Luxurious, Designer Upholstery Style
Gunmetal

Premium Color: Extremely Durable, Seamless Upholstery Style
Mocha

Premium Color: Extremely Durable, Seamless Upholstery Style
Garnet

Ultraleather^® Color: Soft & Luxurious, Designer Upholstery Style
Burgundy

Premium Color: Extremely Durable, Seamless Upholstery Style
Blue Ridge

Premium Color: Extremely Durable, Seamless Upholstery Style
Diplomat Blue

Ultraleather^® Color: Soft & Luxurious, Designer Upholstery Style
Midnight Blue

Premium Color: Extremely Durable, Seamless Upholstery Style
Silver Pearl

Ultraleather^® Color: Soft & Luxurious, Designer Upholstery Style
Dove Grey

Ultraleather^® Color: Soft & Luxurious, Designer Upholstery Style
Dove

Premium Color: Extremely Durable, Seamless Upholstery Style
Slate

Premium Color: Extremely Durable, Seamless Upholstery Style
Schooner

Ultraleather^® Color: Soft & Luxurious, Designer Upholstery Style
Black

Premium Color: Extremely Durable, Seamless Upholstery Style
Raven Wing

Ultraleather^® Color: Soft & Luxurious, Designer Upholstery Style

Deep Oval Articulating Headrest (G2)

Deep Oval Articulating Headrest is another very popular headrest is you always want your patient's head located in the middle of the headrest. The deep cushion also provides the patient with security as the cushion secures their head onto the cushion. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
View Full Details Watch Video Overview
Horseshoe Articulating Headrest (G2)

Horseshoe/Donut Articulating Headrest is used for extended length prone positioning. This headrest cushion is extra soft for patient comfort while in the prone position. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
View Full Details Watch Video Overview
Magnetic Headrest (G2)

WATCH VIDEO The magnetic headrest allows the caregiver to easily slide the rectangular upholstered section anywhere along the flat section of the headrest for optimal positioning of the patient’s head and neck.
View Full Details Watch Video Overview
Prosthetic Articulating Headrest (G2)

Prosthetic or Cradle Articulating Headrest provides excellent access to the patient's head, especially the crown of the head. The cushion is 4” (10.2 cm) high x 8” (20.3 cm) wide. It has an extra lock mechanism for position the head in just the right position. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
View Full Details Watch Video Overview
Rectangular Articulating Headrest (G2)

Rectangular Articulating Headrest is beneficial if you need to move the patient's head around the headrest for different procedures. The cushion is 8” (20.3 cm) high x 12” (30.5 cm) wide. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
View Full Details Watch Video Overview

Adjustable Bed Rail/Transfer Support (G2)

Our adjustable bed rail and transfer support is a multi-use device providing an ADA Compliant transfer support by assisting patient transfers onto the chair and removing barriers for entry independently, but also provides security during procedures and examinations, and for mobile applications during patient transport as a bed rail. The bed rail and transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system. And with the press of a button, adjust the support every 18° from 0° to 180°, allowing the support to be positioned wherever it is needed to ensure safety. Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment.
View Full Details Watch Video Overview

Specs

Support Capacity

250 lbs

Material

All steel construction

Easy Cleaning

Standard disinfecting solutions
ADA Compliant Transfer Support (G2)

NEW! SHIPPING FALL 2025 Our lightweight transfer support helps you provide patients with stability while entering and exiting your chairs, removing mobility barriers for those with less agility. Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment. Compliant to HHS and DOJ enforceable ADA standards, our transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system. It does not require any additional mounts and can be used with your existing MTI chair. Plus, its slim lightweight design makes it easy to store in a cabinet or drawer while not in use.
View Full Details

Specs

Support Capacity

250 lbs

Light Weight

8 lbs.

Material

Stainless Steel

Easy Cleaning

Standard disinfecting solutions

Designer Upholstery Kit (G2)

Ultraleather^®upholstery adds even more luxury. It is a PVC Free material and contributes to LEED™ and BIFMA credits. Ultraleather is also GREENGUARD Gold Certified.
Seamless Upholstery Kit (G2)

Premium upholstery eliminates exposed stitching, promoting improved disinfection and an easy to clean surface.
Fire Barrier (CAL-133)

MTI's TB133 option meets the California Technical Bulletin #133 (CAL-133) for flammability testing for seating furniture for use in public occupancies. MTI achieves compliance without the use of flame retardants. This option can be added to any upholstered item containing foam.

Back Mounted Exam Light (G2)

WATCH VIDEO Back Mounted - The Lumerus™ LED Exam Light is MTI’s longest lasting, compact, environmentally friendly examination light. This compact light flexible neck rates at 70,000 hours of average life with a 2.25" (5.7 cm) head size. The flexible gooseneck design allows excellent positioning for any exam.

1 White LED

70,000 hour rate LED

4,100° K +/- 300° K

Light Intensity @ 16" (40.6 cm): 24,800 lux (2,300 fc)

Spot Size @ 16" (40.6 cm): 5” (12.7 cm) dia

CRI: 80

1-year limited warranty

*Assumes 8 hours of continual use/day, 5 days a week for 52 weeks/year. Actual LED life may be longer.

Mounts to backrest of some MTI Exam Chairs

Watch Video Overview

2 Function Foot Control (G2)

MTI’s standard 2 Function Programmable Foot Control has 4 user-programmable positions allowing you to put the table into your favorite positions automatically with the simple touch of a button and an auto return button for quick and easy return to the chair position. Controls Leg and Back functions on the chair. One of several types of controls available for your MTI chair. 4 user-settable programmable positions Auto return to chair position Sealed membrane for easy cleaning and disinfecting Stop button or press any function to stop the chair for emergency situations
View Full Details
Leveling Glide Extension, 2” (G2)

Add the 2" (5.1 cm) leveling glides to your chair if you require your chair to go even higher than the standard heights. Note: The additional height added to the chair, disqualifies the chair for ADA Compliance
View Full Details
Paper Roll Holder, Adjustable 18" or 21" (G2)

The adjustable paper roll holder accommodates 18" or 21" wide paper roll by a simple press of a button. The 3 1/2" (53.3 cm x 8.9 cm) paper roll is conveniently located in the middle of the back section to avoid interfering with accessibility to the patient.
View Full Details Watch Video Overview
Adjustable Bed Rail/Transfer Support (G2)

Our adjustable bed rail and transfer support is a multi-use device providing an ADA Compliant transfer support by assisting patient transfers onto the chair and removing barriers for entry independently, but also provides security during procedures and examinations, and for mobile applications during patient transport as a bed rail. The bed rail and transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system. And with the press of a button, adjust the support every 18° from 0° to 180°, allowing the support to be positioned wherever it is needed to ensure safety. Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment.
View Full Details Watch Video Overview

Specs

Support Capacity

250 lbs

Material

All steel construction

Easy Cleaning

Standard disinfecting solutions
Power Cord, 3' (G2)

This accessory provides a 3' hospital grade power cord w/90 degree plug for static mounting. (Not available for mobile or swivel base option)
View Full Details
Strap, Body Restraint (G2)

Improve the safety of your patients by securing your patient to chair during and after procedures. To accommodate different patient demographics, the restraint strap width is adjustable.
View Full Details Watch Video Overview
