840 Stretcher Bed

Name: 840 Stretcher Bed
Brand: MTI
Rating: 5 (1 reviews)

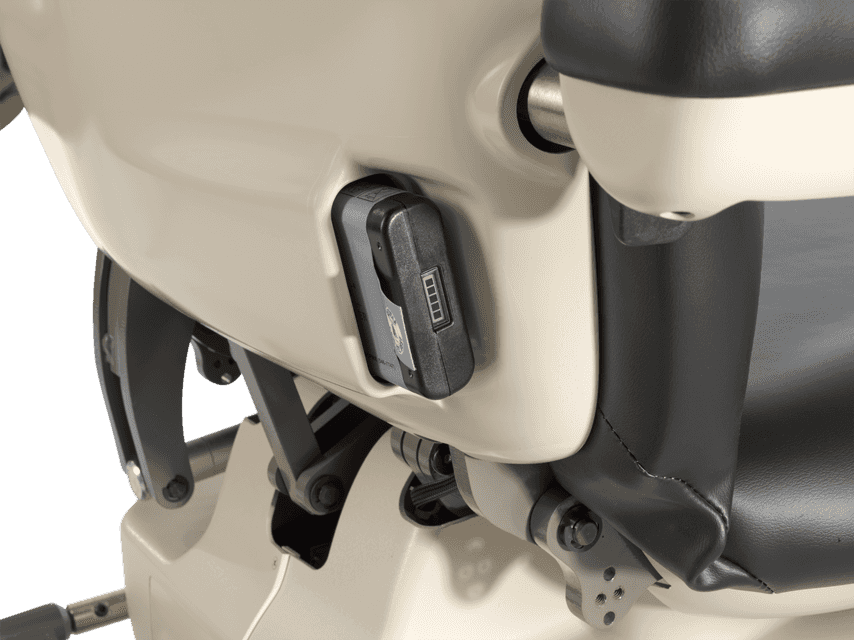

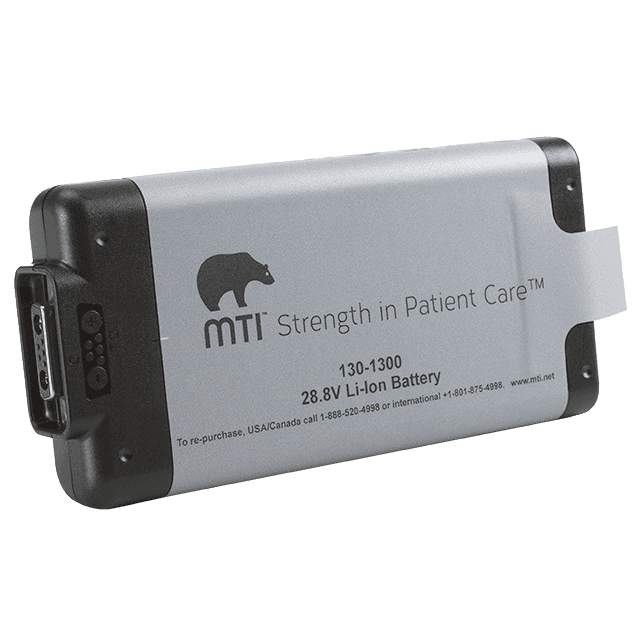

840 Lithium-ion Battery location on the seat back

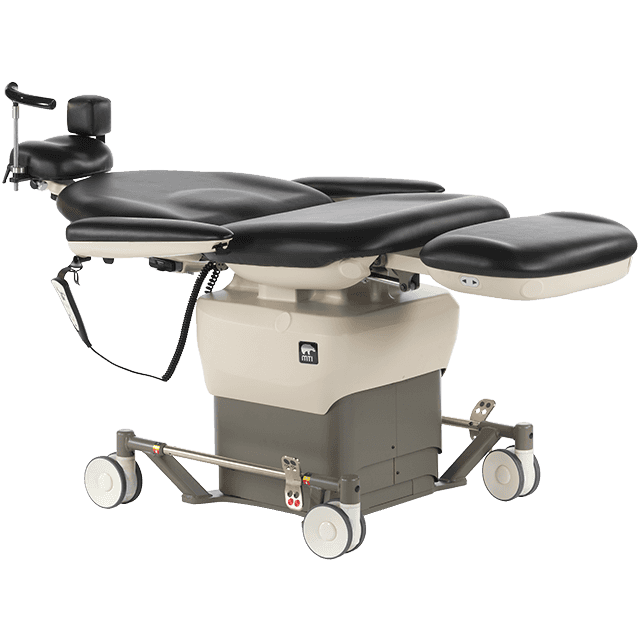

840 Mobile Stretcher Bed Oph Headrest with Wrist Support and Head Stabilizer

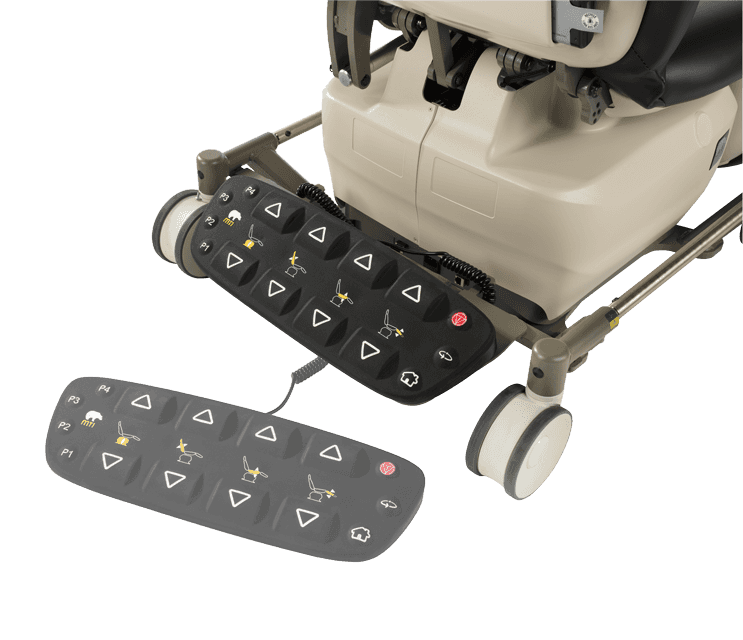

840 Foot Control Mount on and Off Slant Mount in Time Lapse

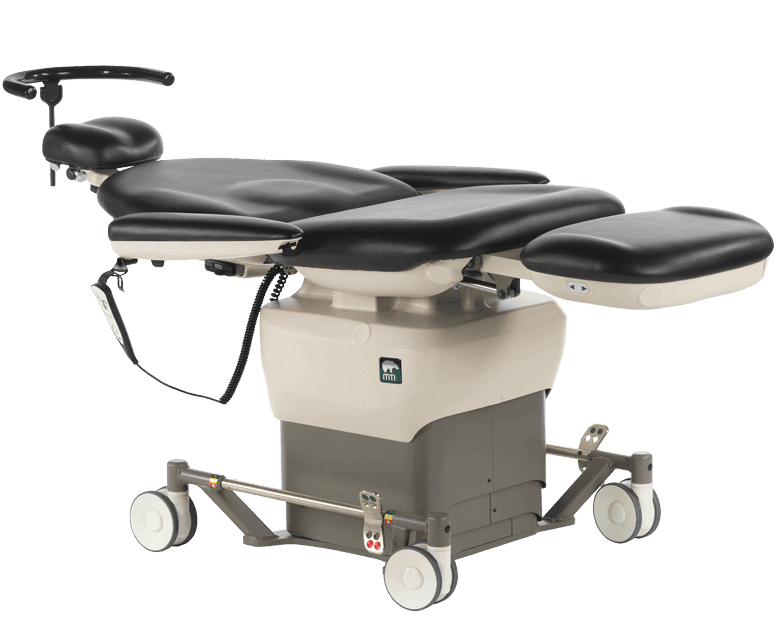

840 Mobile Stretcher Bed Oph Headrest with U-Shape Wrist Support

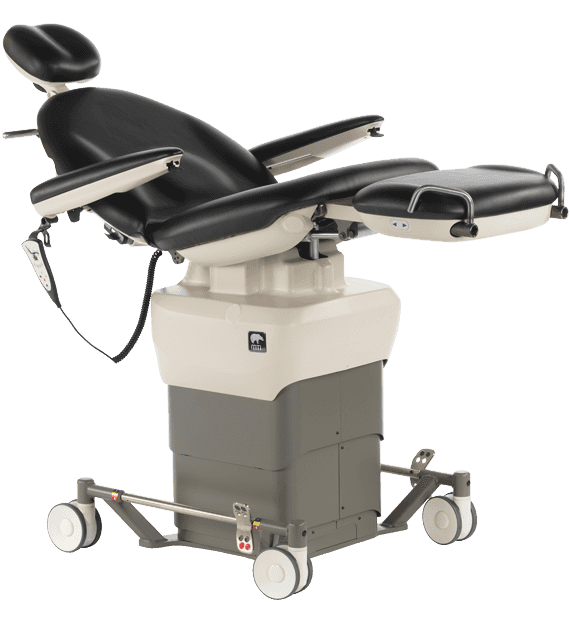

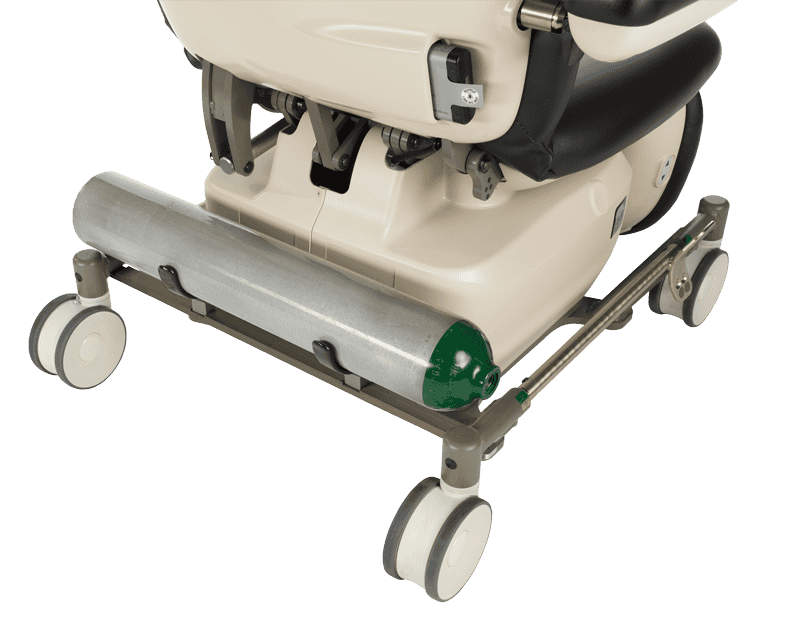

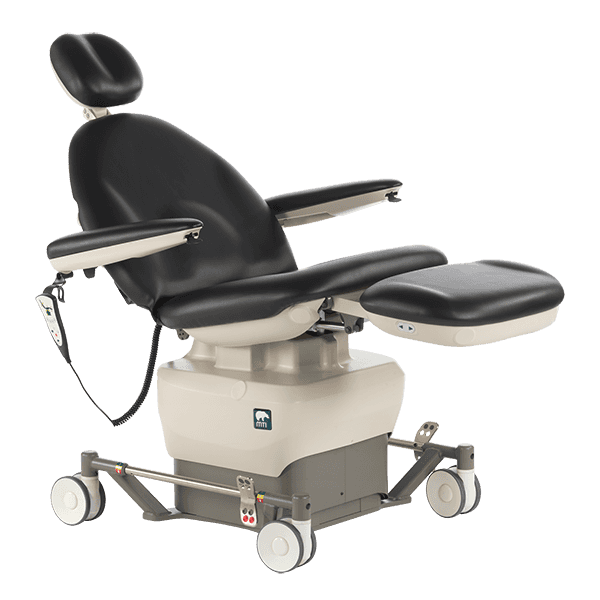

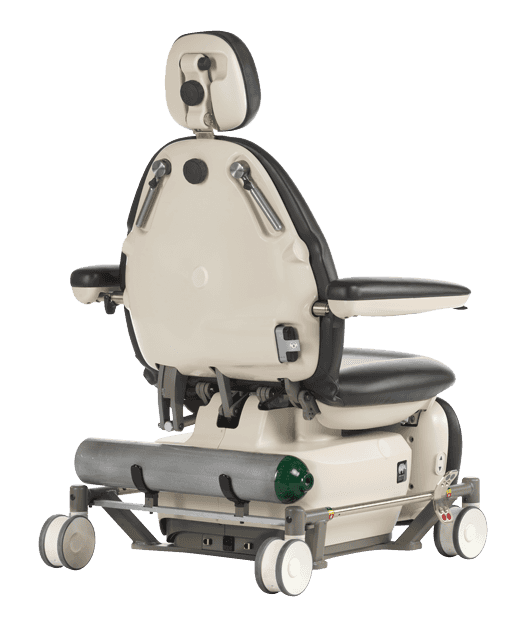

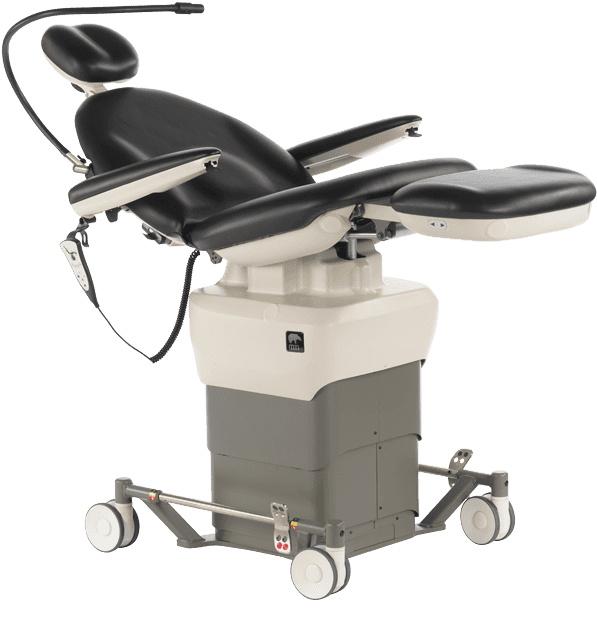

840 with Oxygen Tube and Arms in contoured position

Home / Products

840 Stretcher Bed

Streamline your workflow and elevate the patient and caregiver experience with the MTI 840 Stretcher Bed. This motorized bed enables seamless transitions from pre-op to transport, surgery, and recovery. With no patient transfers required, the risk of injuries is minimized, ensuring a safe environment. Powered by a smart lithium-ion battery, the MTI 840 offers mobility without the need for electrical connection. Upgrade your workflow with the MTI 840 Stretcher Bed today.

Specifically designed to cater to the needs of specialties such as Ophthalmology, Plastic Surgery, ENT, Oral Surgery, Wound Care, and more, the MTI 840 stretcher bed serves as a mobile procedure platform. It facilitates the safe transportation of patients from various locations within the facility for procedures or surgeries. This versatility enhances flexibility and convenience, promoting a seamless experience for both patients and healthcare providers.

Powered by an intelligent lithium-ion battery, the MTI 840 operates without the need for a constant connection to an electrical outlet. This feature ensures unrestricted mobility, allowing the bed to be easily maneuvered throughout the facility. In the event of a battery emergency, an extra battery can be effortlessly inserted, ensuring uninterrupted operation. The bed’s battery charges remotely, eliminating the need for it to be connected to a power source while maintaining full operational mobility. A standard power cord is also included.

Low Voltage Motors: power lift, back, tilt, foot, and 7” foot extension featuring ComfortSync™ movements
Seat Height: 18.75”-37”
Seat Width: 25”
Length: 73” plus an additional 7” headrest extension
Battery: (2) lithium-ion batteries
Backrest: ultra-thin & tapered
Patient Load Capacity: 725 lb

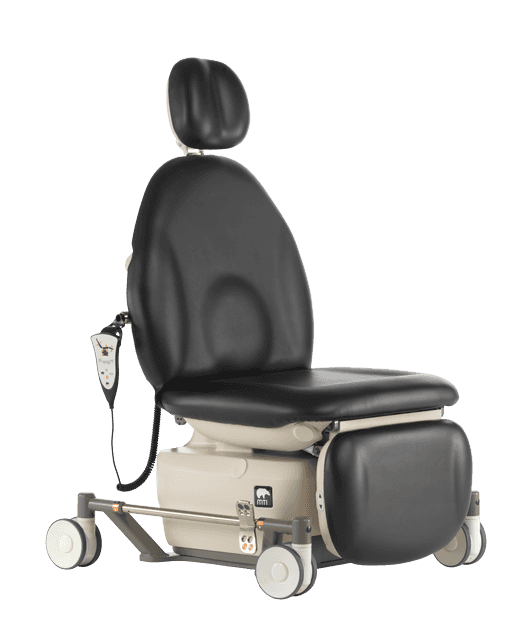

Controls: hand & optional foot
Programmable Buttons: 4 dynamic user-programmable buttons
Home Button: ADA Compliant home and user-programmable home positions
Headrest: deep oval articulating or upgrade to ophthalmic articulating
Optional Arms: removable floating (compensating), seat rail or back rail mounted arms
ADA Compliant Mobile Base: 5” casters available in 3 different steering configurations
Steering Handles: discrete storable back-mounted with optional foot steering
G2 Accessories: plug and play accessories
Safety Standards: Listed to the following standards
- Conf IEC 60601-1:2005 Ed.3+A1,C1:2014
- AAMI ES60601-1:2005+A1
- IEC 60601-1-2:2014 Ed.4
- Cert STD CSA C22.2#60601-1:2014 Ed.3
- TSCA Title VI Compliant

Patents 10632037, 7862123, 8480172, 9125495, 9782319
Additional Patents Pending

Request a Quote Book a Demo

Seat Height: 18.75 - 37" Mobile Base
Seat Width: 25"
Programmable Positions: 4 Program Buttons + Programmable Home
Patient Capacity: 725 lbs.
Base Options: ADA Compliant Mobile
Headrest: Deep Oval Articulating
Removable Upholstery: Designer, Seamless
Patient Arms: Floating Arms (optional)
Control Choices: Foot Control (optional), Hand Control (standard)
Leg Rest/Footrest: Knee Break Legrest w/7" Power Foot Extension
Functions: Lithium Ion Battery & Mains Voltage, Power Back, Power Foot, Power Foot Extension, Power Lift, Power Tilt

ADA Compliant: Complies w/regulation 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment and 2010 ADA Standards for Accessible Design

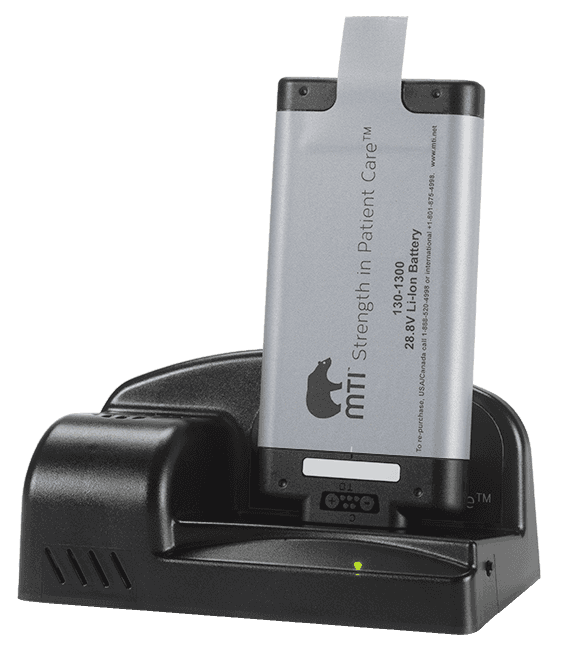

Battery: The lithium-ion battery provides true operational mobility and is engineered for a full day's work on one charge. Keep your workflow performing optimally by using one of the two batteries provided, while charging the second battery on the compact lightweight desk charger. • 2 batteries • 1 lb • 6.5" long x 1" thick • LCD Fuel Gauge • Charge time <2 hours
ComfortSync™: The synchronous ergonomic movement of the chair as it moves from position-to-position.
Controls: Hand and Foot controls with sealed membrane for cleaning and disinfecting
Extension: 7” power foot extension for taller patients
Hassle Free: Maintenance-free joints. No lubricating joints...EVER
Hibernate: After 60 minutes chair sleeps to save on energy
Home: ADA Compliant and User Programmable Home positions
Memory: 4 Dynamic user programmable positions
Movement: Removable slide back patient arms compensate with backrest movement.
Safety: Safety Lockout™ Safe Zones and Collision Avoidance System™ help keep the chair in safe positions
Soft Start/Stop: Technology providing smooth start and stop movements
Speed: Ultra-quiet DC motor lift is up to 30% faster than previous models
Universal: Universal power supply for 100-240 volt applications
Upholstery: Quick installation and removable for easy cleaning and replacement.

Arctic

Ultraleather^® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple. Earth Friendly Ultraleather^®not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde. Ultraleather^® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik^® and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5. Ultraleather^® Upholstery is manufactured to meet the following specifications:

California AB 2998

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117

California Tech Bulletin #133*

Automotive (FMVSS-302)

Abrasion Standards

Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Taupe

A beacon of strength, Premium Upholstery is both aesthetically pleasing and delightfully durable. Designed to complement any space and bring comfort to anyone in any MTI chair, stool and side chair. MTI's Premium Upholstery is FR free (fire-retardant free), compliant to California AB-2998 and has been formulated to be easily disinfected with sanitizing products containing sodium hypochlorite (common household bleach) diluted 1:10. Premium Upholstery is manufactured to meet the following specifications:

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117-2013

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Papyrus

Ultraleather^® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple. Earth Friendly Ultraleather^®not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde. Ultraleather^® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik^® and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5. Ultraleather^® Upholstery is manufactured to meet the following specifications:

California AB 2998

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117

California Tech Bulletin #133*

Automotive (FMVSS-302)

Abrasion Standards

Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Pine Cone

Ultraleather^® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple. Earth Friendly Ultraleather^®not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde. Ultraleather^® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik^® and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5. Ultraleather^® Upholstery is manufactured to meet the following specifications:

California AB 2998

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117

California Tech Bulletin #133*

Automotive (FMVSS-302)

Abrasion Standards

Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Gunmetal

A beacon of strength, Premium Upholstery is both aesthetically pleasing and delightfully durable. Designed to complement any space and bring comfort to anyone in any MTI chair, stool and side chair. MTI's Premium Upholstery is FR free (fire-retardant free), compliant to California AB-2998 and has been formulated to be easily disinfected with sanitizing products containing sodium hypochlorite (common household bleach) diluted 1:10. Premium Upholstery is manufactured to meet the following specifications:

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117-2013

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Mocha

A beacon of strength, Premium Upholstery is both aesthetically pleasing and delightfully durable. Designed to complement any space and bring comfort to anyone in any MTI chair, stool and side chair. MTI's Premium Upholstery is FR free (fire-retardant free), compliant to California AB-2998 and has been formulated to be easily disinfected with sanitizing products containing sodium hypochlorite (common household bleach) diluted 1:10. Premium Upholstery is manufactured to meet the following specifications:

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117-2013

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Garnet

Ultraleather^® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple. Earth Friendly Ultraleather^®not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde. Ultraleather^® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik^® and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5. Ultraleather^® Upholstery is manufactured to meet the following specifications:

California AB 2998

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117

California Tech Bulletin #133*

Automotive (FMVSS-302)

Abrasion Standards

Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Burgundy

A beacon of strength, Premium Upholstery is both aesthetically pleasing and delightfully durable. Designed to complement any space and bring comfort to anyone in any MTI chair, stool and side chair.

MTI's Premium Upholstery is FR free (fire-retardant free), compliant to California AB-2998 and has been formulated to be easily disinfected with sanitizing products containing sodium hypochlorite (common household bleach) diluted 1:10.

Premium Upholstery is manufactured to meet the following specifications:

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117-2013

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Blue Ridge

A beacon of strength, Premium Upholstery is both aesthetically pleasing and delightfully durable. Designed to complement any space and bring comfort to anyone in any MTI chair, stool and side chair. MTI's Premium Upholstery is FR free (fire-retardant free), compliant to California AB-2998 and has been formulated to be easily disinfected with sanitizing products containing sodium hypochlorite (common household bleach) diluted 1:10. Premium Upholstery is manufactured to meet the following specifications:

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117-2013

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Diplomat Blue

Ultraleather^® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple. Earth Friendly Ultraleather^®not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde. Ultraleather^® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik^® and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5. Ultraleather^® Upholstery is manufactured to meet the following specifications:

California AB 2998

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117

California Tech Bulletin #133*

Automotive (FMVSS-302)

Abrasion Standards

Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Midnight Blue

A beacon of strength, Premium Upholstery is both aesthetically pleasing and delightfully durable. Designed to complement any space and bring comfort to anyone in any MTI chair, stool and side chair. MTI's Premium Upholstery is FR free (fire-retardant free), compliant to California AB-2998 and has been formulated to be easily disinfected with sanitizing products containing sodium hypochlorite (common household bleach) diluted 1:10. Premium Upholstery is manufactured to meet the following specifications:

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117-2013

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Silver Pearl

Ultraleather^® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple. Earth Friendly Ultraleather^®not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde. Ultraleather^® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik^® and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5. Ultraleather^® Upholstery is manufactured to meet the following specifications:

California AB 2998

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117

California Tech Bulletin #133*

Automotive (FMVSS-302)

Abrasion Standards

Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Dove Grey

Ultraleather^® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple. Earth Friendly Ultraleather^®not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde. Ultraleather^® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik^® and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5. Ultraleather^® Upholstery is manufactured to meet the following specifications:

California AB 2998

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117

California Tech Bulletin #133*

Automotive (FMVSS-302)

Abrasion Standards

Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Dove

A beacon of strength, Premium Upholstery is both aesthetically pleasing and delightfully durable. Designed to complement any space and bring comfort to anyone in any MTI chair, stool and side chair. MTI's Premium Upholstery is FR free (fire-retardant free), compliant to California AB-2998 and has been formulated to be easily disinfected with sanitizing products containing sodium hypochlorite (common household bleach) diluted 1:10. Premium Upholstery is manufactured to meet the following specifications:

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117-2013

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Slate

A beacon of strength, Premium Upholstery is both aesthetically pleasing and delightfully durable. Designed to complement any space and bring comfort to anyone in any MTI chair, stool and side chair. MTI's Premium Upholstery is FR free (fire-retardant free), compliant to California AB-2998 and has been formulated to be easily disinfected with sanitizing products containing sodium hypochlorite (common household bleach) diluted 1:10. Premium Upholstery is manufactured to meet the following specifications:

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117-2013

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Schooner

Ultraleather^® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple. Earth Friendly Ultraleather^®not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde. Ultraleather^® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik^® and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5. Ultraleather^® Upholstery is manufactured to meet the following specifications:

California AB 2998

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117

California Tech Bulletin #133*

Automotive (FMVSS-302)

Abrasion Standards

Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Black

A beacon of strength, Premium Upholstery is both aesthetically pleasing and delightfully durable. Designed to complement any space and bring comfort to anyone in any MTI chair, stool and side chair. MTI's Premium Upholstery is FR free (fire-retardant free), compliant to California AB-2998 and has been formulated to be easily disinfected with sanitizing products containing sodium hypochlorite (common household bleach) diluted 1:10. Premium Upholstery is manufactured to meet the following specifications:

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117-2013

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.
Raven Wing

Ultraleather^® Upholstery colors are a PVC-free material, offer the look and feel of leather, and are a more durable surface. High-tech strengthening components give it longevity, and its exceptional durability and effortless cleaning make Ultraleather an ideal surface for high wear applications while staying soft and supple. Earth Friendly Ultraleather^®not only looks and feels great, it’s also environmentally friendly. It doesn’t contain plasticizers, heavy metals, or stabilizers; and is 100% free of VOCs, POPs, and formaldehyde. Ultraleather^® cleans effortlessly with soap and water. Most stains can be lifted with an alcohol-based solutions such as Fantastik^® and Formula 409®. Standard Ultraleather Upholstery achieves a superior level of disinfectability with disinfectant products containing sodium hypochlorite (common household bleach) diluted 1:5. Ultraleather^® Upholstery is manufactured to meet the following specifications:

California AB 2998

Boston Fire Code-Test BFD 1X-1*

California Tech Bulletin #117

California Tech Bulletin #133*

Automotive (FMVSS-302)

Abrasion Standards

Abrasion #10 Cotton Duck: 400,000 double rubs (ASTM D 4157)

*When TB133 option for upholstery is purchased. NOTE: Due to the nature of electronic media, the color of the actual upholstery may vary slightly from how they appear on your particular monitor.

Designer Upholstery Kit (G2)

Ultraleather^®upholstery adds even more luxury. It is a PVC Free material and contributes to LEED™ and BIFMA credits. Ultraleather is also GREENGUARD Gold Certified.
Seamless Upholstery Kit (G2)

Premium upholstery eliminates exposed stitching, promoting improved disinfection and an easy to clean surface.

Deep Oval Articulating Headrest with Forearm Supports (G2)

WATCH VIDEO Deep Oval Articulating Headrest with Forearm Supports is one of our most popular headrests. The forearm supports are used to support the assistant's arms when chinning, reducing staff fatigue when supporting a patient’s head during a procedure. The supports are removable and pivot. The resilient urethane closed cell molded construction is far superior in comfort to the machined, hard plastic or the sandwiched vinyl construction of competitive forearm support headrests. The deep cushion also provides the patient with security as the cushion secures their head onto the cushion. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
Head Stabilizer

MTI's head stabilizer cushion is a very convenient way of stabilizing the patient's head during temporal procedures. The cushion can easily be moved to either side of the headrest or removed completely when not needed. It is also adjustable inward and outward from the headrest to accommodate every patient. The cushion uses only MTI's soft Ultraleather^®Raven Wing PVC free fabric to assure your patient's are comfortable. > Only available in Ultraleather^® Raven Wing > Requires Ophthalmic Headrest
Horseshoe Articulating Headrest (G2)

WATCH VIDEO Horseshoe/Donut Articulating Headrest is used for extended length prone positioning. This headrest cushion is extra soft for patient comfort while in the prone position. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
Magnetic Headrest (G2)

WATCH VIDEO The magnetic headrest allows the caregiver to easily slide the rectangular upholstered section anywhere along the flat section of the headrest for optimal positioning of the patient’s head and neck.

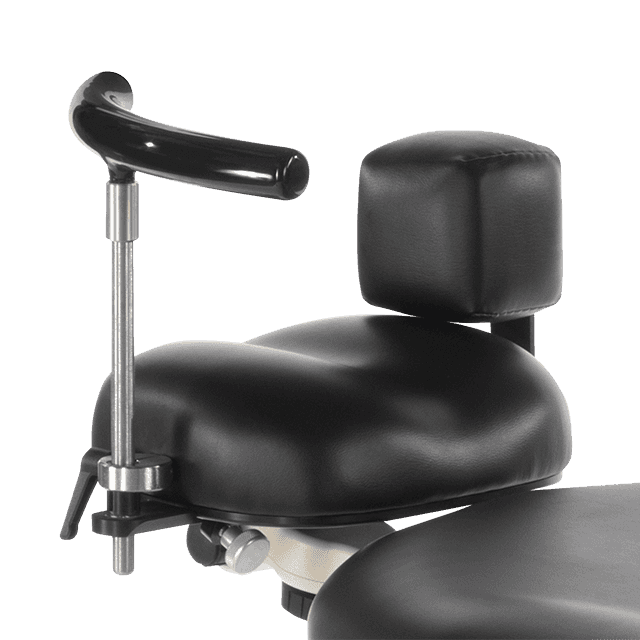

Ophthalmic Deep Oval Articulating Headrest (G2)

Ophthalmic Deep Oval Articulating Headrest is designed for wrist supports used for supporting wrists during delicate surgeries around the eye. The headrest accepts one of MTI's crescent or Chan "U" shaped wrist supports. Either support can be moved to the either side of the patient's head for temporal approaches or at the top of the head for a posterior approach and can be vertically adjusted up and down. Each of the wrist supports are removable. Purchase either the crescent shaped wrist support or the Chan "U" shaped wrist support or both; depending on your surgeons needs. The intuitive locking system of the headrest lock is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.

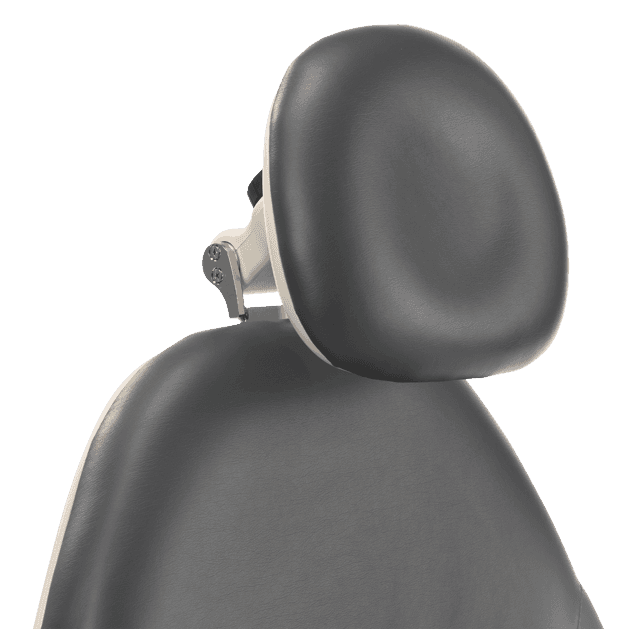

Oval Articulating Headrest (G2)

WATCH VIDEO The Oval Articulating Headrest is one of our most popular headrests. The dimple in the headrest makes the patient's head very comfortable and keeps the it located in the middle of the headrest. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
Prosthetic Articulating Headrest (G2)

WATCH VIDEO Prosthetic or Cradle Articulating Headrest provides excellent access to the patient's head, especially the crown of the head. The cushion is 4” (10.2 cm) high x 8” (20.3 cm) wide. It has an extra lock mechanism for position the head in just the right position. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
Prosthetic Articulating Headrest with Forearm Supports (G2)

WATCH VIDEO Prosthetic or Cradle Articulating Headrest with Forearm Supports provides excellent access to the patient's head, especially the crown of the head. The forearm supports are used to support the assistant's arms when chinning, reducing staff fatigue when supporting a patient’s head during a procedure. The supports are removable and pivot. The resilient urethane closed cell molded construction is far superior in comfort to the machined, hard plastic or the sandwiched vinyl construction of competitive forearm support headrests. The cushion is 4” (10.2 cm) high x 8” (20.3 cm) wide. It has an extra lock mechanism for position the head in just the right position. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
Rectangular Articulating Headrest (G2)

WATCH VIDEO Rectangular Articulating Headrest is beneficial if you need to move the patient's head around the headrest for different procedures. The cushion is 8” (20.3 cm) high x 12” (30.5 cm) wide. The intuitive locking system is much easier to adjust than competitive lock systems. With a slight turn of the knob, the headrest articulates in two locations making virtually any position possible. Even with the back horizontal to the floor, the knob is easy to adjust. The headrest can also be vertically adjusted by a knob located on the chair back.
Wrist Support - Crescent Shaped

The Crescent shaped wrist supports used for supporting wrists during delicate surgeries around the eye. It can be moved to the either side of the patient's head for temporal approaches or at the top of the head for a posterior approach and can be vertically adjusted up and down 6.25" (15.9 cm). After surgery, remove the wrist support for easier and safer exit of the patient from the chair. > Crescent support is coated with a soft impervious material for easy cleaning and comfort > Crescent support can be moved to either side of patients head or top of head > Crescent support is vertically adjustable up to 6.25" (15.9 cm)
Wrist Support - "U" Shaped

The Chan "U" shaped wrist supports used for supporting wrists during delicate surgeries around the eye. It can be vertically adjusted up and down 6.25" (15.9 cm) as well as adjust the angle of the support to fine tune to location of the support the for delicate eye surgery. After surgery, remove the wrist support for easier and safer exit of the patient from the chair.ed on the chair back. > "U" support is coated with a soft impervious material for easy cleaning and comfort > "U" support can be moved to either side of patients head or top of head > "U" support is vertically adjustable up to 6.25" (15.9 cm)

Hand/Forearm Table (G2)

WATCH VIDEO The Hand/Forearm Procedure Table plugs into MTI’s patented Floating Arm™ system which allows the arm to move with the back of the chair, eliminating the need for continual readjustment for your patient. Adjust the arm up/down, in/out, 360°, and up/down yaw movements and it is removable.
Hand/Arm Surgery Table (G2)

Hand/Arm Surgery Back Rail Mounted Table with rail lock (36" [91.4 cm] L x 12" [30.5 cm] W). Adjust the arm up/down, in/out, 360°, vertically, and yaw movements and is removable. > Requires Back Rails
IV Arm, 18” Deluxe (G2)

WATCH VIDEO The Deluxe 8-way Removable 18" (45.7 cm) IV/Surgery Arm is mounted to MTI’s patented Floating Arm™ system which allows the arm to move with the back of the chair, eliminating the need for continual readjustment for your patient or it can be seat rail mounted. To adjust the arm, with one hand simply grab the arm while squeezing the lever, move the arm to the desired location and release. Adjust the arm up/down, in/out, 360°, and up/down yaw movements and it is removable. < Requires Accessory Rail when seat rail mounted
IV Arm, 18” Standard (G2)

WATCH VIDEO The Standard 8-way Removable 18" (45.7 cm) IV/Surgery Arm is mounted to MTI’s patented Floating Arm™ system which allows the arm to move with the back of the chair, eliminating the need for continual readjustment for your patient or it can be seat rail mounted. Adjust the arm up/down, in/out, 360°, and up/down yaw movements and it is removable. < Requires Accessory Rail when seat rail mounted
IV Arm, 24” Deluxe (G2)

WATCH VIDEO The Deluxe 8-way Back Rail Mounted 24" (61 cm) IV/Surgery Arm allows arm adjustment with one hand by simply grasping the arm while squeezing the lever. Move the arm to the desired location and release. Adjust the arm up/down, in/out, 360°, and up/down yaw movements and it is removable. < Requires Accessory Rail
Patient Arms (G2)

WATCH VIDEO The MTI patented Floating Arm System’s™ uniquely compensates or “floats” with the back section of the chair. This assures your patient’s always have arms in the proper position for comfort and use. These arms eliminate the need for continual readjustment of your patient arms and/or patient. The arms slide back for easy patient ingress/egress and are removed by pressing a button on the arm to facilitate better access to those patients with disabilities. The arm system also provides for a unique way to manage your patient’s arms when in the prone position by swapping the arms (move the left arm to the right side and the right arm to the left side). This provides for arm rests when your patient making longer examinations and procedures much more comfortable.
Patient Arm, 4-Way Adjustable (G2)

WATCH VIDEO Standard 4-way Removable Patient Arm with spline lock (14” [35.6 cm] L x 4” [10.2 cm] W) is available in a Floating or Seat Rail Mount. Adjust the arm up/down and 360° movements. This patent pending arm system allows the arms to move with the back of the chair, eliminating the need for continual readjustment of your patient. > Requires Removable Floating Arm Option (RFAO) or Seat Rails
Transfer Supports/Bed Rails (G2)

WATCH VIDEO Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment. They provide a support for patients with disabilities assisting to independently transfer onto the chair, removing barriers for entry. They are also a bed rail providing security during procedures and examinations and for mobile applications provide safety during patient transport. The transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system. With the press of a button, adjust the support every 18° from 0° to 180°, allowing to position the support wherever the patient may need it. Supporting up to 250 lbs. at the end of the support, you will never need to worry about using it for your bariatric patients.

Back Mounted Exam Light (G2)

WATCH VIDEO Back Mounted - The Lumerus™ LED Exam Light is MTI’s longest lasting, compact, environmentally friendly examination light. This compact light flexible neck rates at 70,000 hours of average life with a 2.25" (5.7 cm) head size. The flexible gooseneck design allows excellent positioning for any exam. > 1 White LED > 70,000 hour rate LED > 4,100° K +/- 300° K > Light Intensity @ 16" (40.6 cm): 24,800 lux (2,300 fc) > Spot Size @ 16" (40.6 cm): 5” (12.7 cm) dia > CRI: 80 > 1-year limited warranty *Assumes 8 hours of continual use/day, 5 days a week for 52 weeks/year. Actual LED life may be longer. > Mounts to backrest of some MTI Exam Chairs
Post Mounted Exam Light (G2)

WATCH VIDEO Post Mounted - The Lumerus™ LED Exam Light is MTI’s longest lasting, compact, environmentally friendly examination light. This compact light flexible neck rates at 70,000 hours of average life with a 2.25" (5.7 cm) head size. The flexible gooseneck design allows excellent positioning for any exam. > 1 White LED > 70,000 hour rate LED > 4,100° K +/- 300° K > Light Intensity @ 16" (40.6 cm): 24,800 lux (2,300 fc) > Spot Size @ 16" (40.6 cm): 5” (12.7 cm) dia > CRI: 80 > 1-year limited warranty *Assumes 8 hours of continual use/day, 5 days a week for 52 weeks/year. Actual LED life may be longer. > Requires 1” (2.5 cm) post

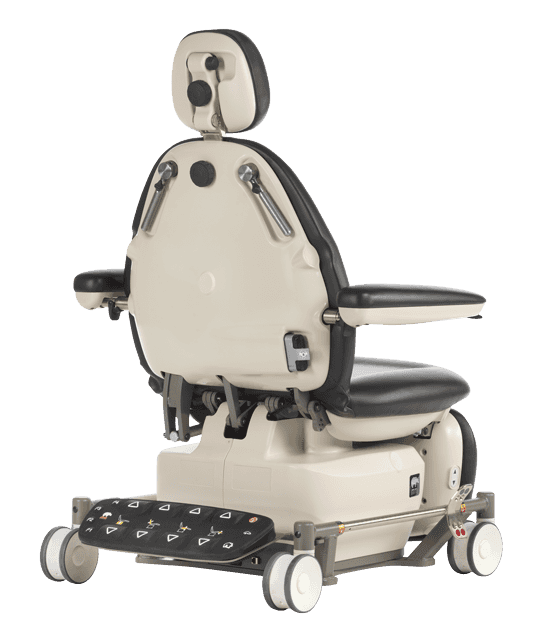

4 Function Foot Control (G2)

MTI’s standard 4 Function Programmable Foot Control has 5 user-programmable positions allowing you to put the table into your favorite positions automatically with the simple touch of a button and an auto return button for quick and easy return to the chair position. Controls Leg, Back, Lift and Tilt functions on the chair. One of several types of controls available for your MTI chair. 5 user-settable programmable positions Auto return to chair position Stop button or press any function to stop the chair for emergency situations
Accessory Rails (G2)

WATCH VIDEO Accessory rails are used to mount IV and Surgery Arms onto your chair's back or seat. When the rails are not needed, remove the rail from your chair by a simple press of a button.
Base Accessory Mount (G2)

The Base Accessory Mount is for mounting mayo trays, IV rods, lights, and other accessories to the chair's base, saving valuable space in the procedure and exam room. The mount is ambidextrous so if workflow or room layout changes, it can easily accommodate.
Electrosurgery Generator Mounting Bracket (G2)

WATCH VIDEO The Accessory Mount is for mounting electrosurgery devices and other accessories conveniently to your chair saving valuable floor and counter top space. It places the electrosurgery generator conveniently at reach. Couple with the duplex outlet kit mounted to the chair for an even cleaner, space saving setup. < Accepts Conmed 2000, Bovie\Aaron 940/950 and Bovie Bantam Pro A952 < Requires Electrosurgery Generator Accessory Mount
Foot Control Slant Mount (G2)

WATCH VIDEO MTI’s foot control slant mount is an accessory that provides a mounting surface to place the foot control so it is out of the way during a procedure or during movement for mobile applications. The Foot control slant mount can be mounted to a standard base or mobile base chair to provide a secure location to place for the foot control when it is not needed.
Foot Steering Handles (G2)

Add G2 foot mounted steering handles to your MTI 840 table to assist in maneuvering the table from the footrest.
GStirrup Exam Boots w/ Gel Pad Lithotomy (G2)

The patented GStirrup Exam Boots slip easily over the heel cup supports of nearly all existing exam tables – without tools! The padded liner and simple patient straps secure the patient comfortably. Use the Wedge to quickly fix the boot at the desired angle for a more controlled patient position. Universal left/right mounting Transports easily between exam rooms Firm but flexible shell accommodates most patients’ calves.
Head Stabilizer

MTI's head stabilizer cushion is a very convenient way of stabilizing the patient's head during temporal procedures. The cushion can easily be moved to either side of the headrest or removed completely when not needed. It is also adjustable inward and outward from the headrest to accommodate every patient. The cushion uses only MTI's soft Ultraleather^®Raven Wing PVC free fabric to assure your patient's are comfortable. > Only available in Ultraleather^® Raven Wing > Requires Ophthalmic Headrest
IV Rod (G2)

WATCH VIDEO The IV Rod can attach to either side of the chair, saving valuable space in the procedure and exam room. The mount is ambidextrous so if workflow or room layout changes, it can easily accommodate.
Mayo Tray (G2)

WATCH VIDEO MTI’s chair-mounted mayo trays are a space and time saving accessory which provides convenient access to instruments and other items needed during procedures. Vertically adjustable up to twelve inches to accommodate a variety of heights, plus three hundred and sixty degrees of rotation and a dual arm system assures use for any application. The self-locking articulating arms provide quick and simple adjustments to any position.
Mayo Tray w/ Light Adapter (G2)

WATCH VIDEO MTI’s chair-mounted mayo tray with light adapter is a space and time saving accessory which provides convenient access and comfort to instruments and other items needed during procedures. Vertically adjustable up to twelve inches to accommodate a variety of heights, plus three hundred and sixty degrees of rotation and a dual arm system assures use for any application. The self-locking articulating arms provide quick and simple adjustments to any position.
Monitor Mount Assembly with Post (G2)

The Monitor Mount provides a post location on the 830, 829 and 550 Tables to mount monitor trays and other accessories. This mount may be put one of the chair.
Oxygen Tank Holder (G2)

Oxygen Tank Holder is an MTI G2 accessory that helps you mount an oxygen tank onto the chair and take with you through each step of the procedure.
Oxygen Tube and Drape Support (G2)

This adjustable tube doubles as a oxygen tube and drape support. It is also flexible to put it in the position that best works for your situation. It plugs into either side of the back spline assembly of the 840 and is easily removed by simply pulling it out.
Paper Roll Holder, Adjustable 18" or 21" (G2)

WATCH VIDEO The adjustable paper roll holder accommodates 18" or 21" wide paper roll by a simple press of a button. The 3 1/2" (53.3 cm x 8.9 cm) paper roll is conveniently located in the middle of the back section to avoid interfering with accessibility to the patient.
Power Cord, 3' (G2)

This accessory provides a 3' hospital grade power cord w/90 degree plug for static mounting. (Not available for mobile or swivel base option)
Stirrups (G2)

WATCH VIDEO MTI’s stirrups are removable stirrups that attach to MTI’s chairs for procedures requiring access to the patient’s perineum. Simply insert into MTI’s spline system to install and grasp the latch to remove. Three horizontal locations and vertical adjustments provide the ultimate in patient comfort and accessibility.
Strap, Body Restraint (G2)

WATCH VIDEO Improve the safety of your patients by securing your patient to chair during and after procedures. To accommodate different patient demographics, the restraint strap width is adjustable.
Strap, Leg Restraint (G2)

WATCH VIDEO Improve the safety of your patients by securing your patient to chair during and after procedures. To accommodate different patient demographics, the restraint strap width is adjustable.
Transfer Supports/Bed Rails (G2)

WATCH VIDEO Transfer supports are a requirement to meet 36 CFR Part 1195 Standards for Accessible Medical Diagnostic Equipment. They provide a support for patients with disabilities assisting to independently transfer onto the chair, removing barriers for entry. They are also a bed rail providing security during procedures and examinations and for mobile applications provide safety during patient transport. The transfer support is ambidextrous, allowing caregivers to move a support from one side of the chair to the other using our plug-and-play accessory system. With the press of a button, adjust the support every 18° from 0° to 180°, allowing to position the support wherever the patient may need it. Supporting up to 250 lbs. at the end of the support, you will never need to worry about using it for your bariatric patients.
Vision Block (G2)

Visual Block Curtain allows you to easily and quickly block your patient's view while procedures are performed. The vision block screen can be mounted on either side of the G2 Products and is easy to install and rotate out of the way.
Wrist Support - Crescent Shaped

The Crescent shaped wrist supports used for supporting wrists during delicate surgeries around the eye. It can be moved to the either side of the patient's head for temporal approaches or at the top of the head for a posterior approach and can be vertically adjusted up and down 6.25" (15.9 cm). After surgery, remove the wrist support for easier and safer exit of the patient from the chair. > Crescent support is coated with a soft impervious material for easy cleaning and comfort > Crescent support can be moved to either side of patients head or top of head > Crescent support is vertically adjustable up to 6.25" (15.9 cm)
Wrist Support - "U" Shaped

The Chan "U" shaped wrist supports used for supporting wrists during delicate surgeries around the eye. It can be vertically adjusted up and down 6.25" (15.9 cm) as well as adjust the angle of the support to fine tune to location of the support the for delicate eye surgery. After surgery, remove the wrist support for easier and safer exit of the patient from the chair.ed on the chair back. > "U" support is coated with a soft impervious material for easy cleaning and comfort > "U" support can be moved to either side of patients head or top of head > "U" support is vertically adjustable up to 6.25" (15.9 cm)
